Specifications
PP knitted meshMaterial:PTFE,polyethylene,polypropylene,nylon yarn,glass fiber and PVC
Model :40-100 60-150 ,140-400mm

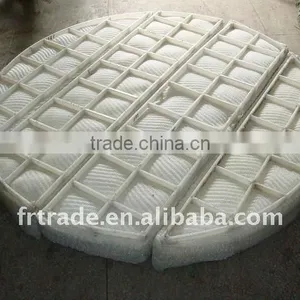

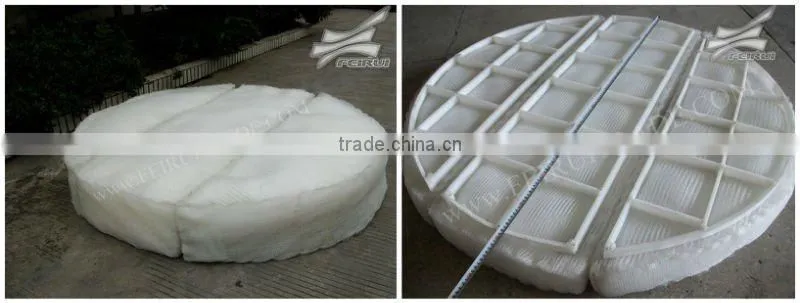

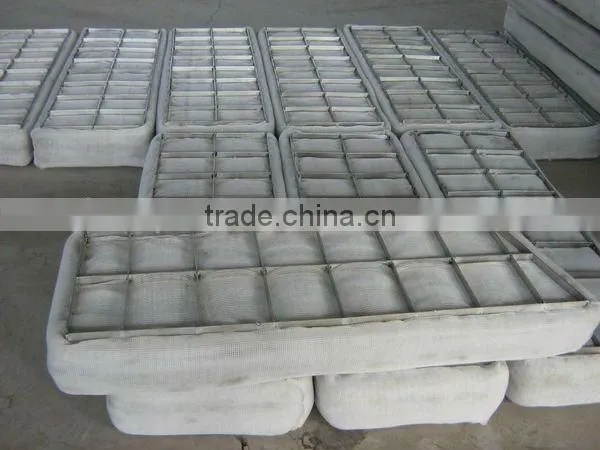

PP Knitted Mesh
It is also known as mist eliminators or sprays. This is a kind of high efficiency separation devices, used throughout all kinds of process industries, to remove liquid droplets from gas or vapour streams.
Applications: Chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection. Demister pad is mainly used to eliminate streams with diameter of more than 3μm to 5μm.
Features:1. Simple structure with light weight.
2. Less pressure drop and big surface.
3. High demisting efficiency.
4. It is convenient for installation, operation and maintenance.
5. Long service life.
Specifications:
| Net Block | Grid | ||||
| Material | Code | Standard NO. | Material | Code | Standard NO. |
| Q235-A | Q235-A | GB434 | Q235-A | Q235-A | GB327 |
| 20 | 20 | BG3206 | 20 | 20 | GB711 |
| 0Gr18Ni10Ti | 321 | 0Gr18Ni9 | 304 | GB423 | |
| 0Gr17Ni12Mo2 | 316 | 0Gr18Ni10Ti | 321 | ||
| 00Gr19Ni11 | 304L | 00Gr17Ni12Mo2 | 316 | ||
| 00Gr17Ni14Mo2 | 316L | 00Gr17Ni14Mo2 | 316L | ||
| RS-2 | RS-2 | Steel Grades | 00Gr17Ni14Mo2 | 316L | |
| NS-8 | NS-80 | Non-metallic materials: PTFE (F6) polyethylene, polypropylene, Nylon yarn, glass fiber and PVC and so on. Note: use other materials bearing the note when ordering |
|||
| NS-80A | NS-80A | ||||
| Brass Wire | H68, H65 | GB310 | |||
| Tin-copper Wire | QSn | GB3128 | |||
| Nickel | N4, N6, N7, N8 | GB3120 | |||
| Titanium and Titanium Alloy | TA2, TA3, TC3, TC4 | GB3623 | |||
