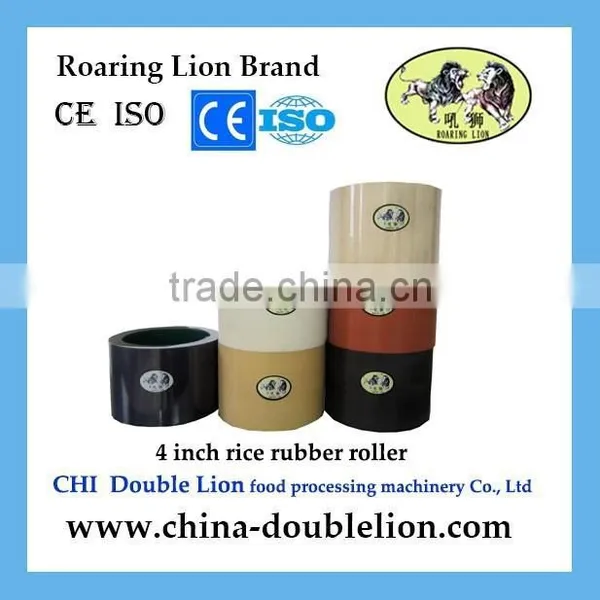

Help Center4 Inch SBR /NBR /poly Paddy Rice Hulling Rubber Roller
Related Products
-
White Brown ,amber Rice Husker Rubber 4inch SBR Iron and Aluminum Casting Roller ,US$ 10 - 25MOQ: 100 Pieces -
Paddy Rice Huller Rubber 4 Inch Iron Drum SBR and NBR RollerUS$ 5 - 15MOQ: 100 Pieces
-
4 NBR Inch Husking Machine Part Rice Paddy Rubber RollersUS$ 10 - 24MOQ: 100 Pieces
-
4" SBR Brown and White Iron Cast Drum Rice Huller Rubber RollerUS$ 10 - 25MOQ: 100 Pieces
-
4ch NBR Rice Harvester Spare Part, Miller Part Huller Rubber RollUS$ 10 - 30MOQ: 50 Units
Brand Name: Roaring Lion, Qiaowang, support OEM brand
|
Type |
External Diameter |
Length |
||
mm |
inch |
mm |
inch |
|
Wheel Type |
152 |
6 |
63 |
1 1/2 |
182 |
7 1/6 |
100 |
4 |
|
222 |
8 3/4 |
100 |
4 |
|
222 |
8 3/4 |
152 |
6 |
|
225 |
8 7/8 |
200 |
8 |
|
255 |
10 |
200 |
8 |
|
225 |
8 7/8 |
240 |
9 1/2 |
|
255 |
10 |
254 |
10 |
|
Casing Type |
227 |
8 15/16 |
355 |
14 |
268 |
10 9/16 |
355 |
14 |
|
232 |
9 1/8 |
457 |
18 |
|
257 |
10 1/10 |
508 |
20 |
|
General Information
1. Name: Rubber Roller For Rice Huller
2. Material: SBR,NBR, POLY
3.Color: brown, white, amber, red
4.Size: 4 inch SBR ,NBR ,Poly
5.Minimum Order: 100pcs
6.Delivery Time: Within 20 days after receiving the payment
7.Packing: shirnk film of each piece, carton box outside
8.Hulling capacity:
10" NBR amber 180mt brown 150mt SBR white 150mt brown 130mt POLY 380mt
14"NBR white 230mt brown 200mt SBR white 210mt brown 200mt POLY 500mt
Technical Specification
A. Color: Brown
a: Tensile Strength:Mpa 23-25
b: Elongation Rate: % 290-400
c: Wear Reduction: cm3/1.6km 0.19-1.05
d: Hardness (shore A): 95-96oC
B. Color: White
a: Tensile Strength:Mpa 22-24
b: Elongation Rate: % 280-400
c: Wear Reduction: cm3/1.6km 0.15-0.10
d: Hardness (shore A): 94-95oC
C. Color: Amber
a: Tensile Strength:Mpa 22-24
b: Elongation Rate: % 280-350
c: Wear Reduction: cm3/1.6km 0.15-0.10
d: Hardness (shore A): 92-96oC
Rubber Roller Character:
- Hardness is 90 ~95 degrees;
- Excellent in heat and abrasion resistance;
- Offering very strong bonding between rubber and drum;
- High shelling efficiency up to 95%;
- The SBR and NBR rice huller rubber roller can be options.
- Elastic stiffness, Strong plasticity under the high hardness, moderate grain force, high roughness, low cardamine.
- Good wear resistance, long using period. trong temperature, no climate impact, not deformation, soft, anti-tear at high-speed.
- Health and non-toxic, no pollution to rice and bran, clean, bright white grain of rice, pure color quality.
Usage:
- Rice hulling rubber is the main part of rice huller machine, because of speed difference of veer and reversion between two rubber rollers, paddy are torn up by two rubber rollers, in the end, rice grains come out.
- NBR roller is the 2nd generation of rice huller rubber roller, is adopted 100% NBR rubber materials, the original color is Amber with innocuity, and its outputs will be two or three times more than SBR roller at least.

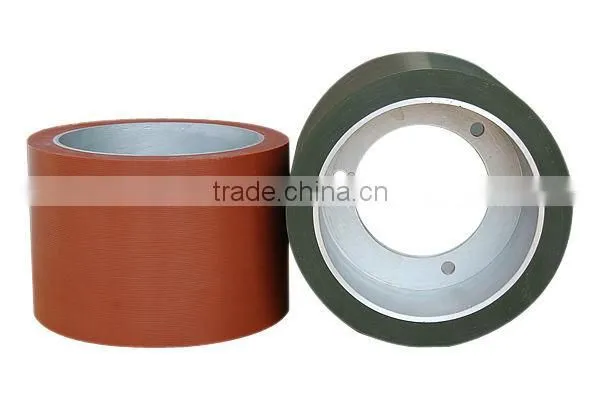

- Aluminium drum rubber roller, with its light weight, high concentricity, the wear-resisting performance is good. It makes the machine to reduce the load vibration, and to increase the rubber roller's life.
- We are pleasure to offer the main styles of hulling rubber rollers in our company. Our enterprise also can design special product according to your individual requirement.
Attentions:
- Handle carefully during the transportation.
- Store in dry place, away from Acid, Alkali, Salt, oil, and dirty, forbidden to put under sun for long time.
- Take sands away from the paddy; keep paddy dry and cleaning when using the rollers.
- Two rollers should be at the same lever, the space must be equal.
- The paddy inputting should be keeping the balance.
- keep the rate of the re-hulling under the limited
- Don’t make the machine work for a long time, in case effect the hulling capacity.
- The surrounding temperature is better under the 50°C.
- Change the fast and slow roller at a certain time.
