Help Center14 Inch Iron Drum White NBR Rice Rubber Roller for Rice Huller
Related Products
-
14 Inch Iron Drum Red NBR Rice Rubber Roller for Rice HullerUS$ 8 - 12MOQ: 100 Pieces -
14inch Red Color Aluminum Drum Milling Rice Rubber RollerUS$ 8 - 12MOQ: 100 Pieces
-
14inch Green Color Aluminum Drum Milling Rice Rubber RollerUS$ 8 - 12MOQ: 100 Pieces
-
14inch Amber Color Aluminum Drum Milling Rice Rubber RollerUS$ 8 - 12MOQ: 100 Pieces
-
Inch White Color Aluminum Drum Milling Rice Rubber RollerUS$ 8 - 12MOQ: 100 Pieces
Specific for different Size :
Type |
Inch |
External diameter |
Length |
Thickness of rubber |
Wheel Type |
4” |
222 mm |
100 mm |
19.5 mm |
6” |
222 mm |
152 mm |
19.5 mm |
|
8” |
225 mm |
200 mm |
25 mm |
|
10” |
255 mm |
254 mm |
24.5mm |
|
Casing Type |
14” |
227 mm |
355 mm |
29.5 mm |
18” |
232 mm |
457 mm |
30.5 mm |
|
20” |
258 mm |
508 mm |
30.5 mm |
|
|
25” |
255 mm |
635mm |
30.5mm |
|
28” |
255mm |
710mm |
30.5mm |
Color |
White & Brown & ember |
|||
Hardness Shore A |
95±3° |
|||
Tensile Strength |
≥21.0(Mpa) [Superior to international advanced level] |
|||
Elongation Rate |
≥250% [Superior to international advanced level] |
|||
Brand |
Roaring Lion ,Qiaowang , OEM Service |
|||

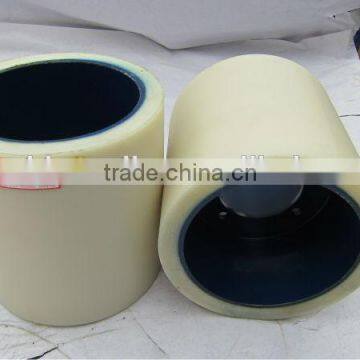

Product picture :
Our product meet the standard of "Quality managment system certificate ISO9001:2008"
Factory introduction :
Chibi City Double Lion Food Processing Machinery CO., Ltd is a Professional production enterprise of rice hulling rubber roll.for year of effort ,we have realized scale production of "Qiaowang" , "Roaring lion" and "Yashi" brand , our company has advanced equipment, complete testing method ,superior quality ,top quality raw material ans sincere service . our product sell to oversea market and get high prasie among wide users .
client visting :
PRECAUTION FOR OPERATORS
- At the time of installation of new rubber roll on the mendal, screw should be tight.
- At the time of installation sleeve rubber roll it must be checked that the holes for nut and bolt should be of proper size and round in shape rather than elliptical to avoid vibrations.
- The perforated Jali used for manufacturing rubber dehusking roll should be of proper size otherwise it may be distorted at the time of installation of rubber roll on mendal of the machine.
- Don't use hammer on rubber rolls inner bore while fitting it on the mendal.
- Set right the roll on mendal in quite straight in position as shown in the Figure. Please check both the keys of the roll. They should be in the center of the grooves of the mendal at the time of switching on the machine for applying pressure.
- Paddy must be cool, clean and sound having fair average specifications.
- Moisture contents of paddy to be dehusked should not be more than 14% to 15% i.e. it must be dried upto the safe level.
- Paddy should not be damaged or partially damaged.
OEM order with your logo is accept . If you need other size and specification rubber roller , please provide detailed specification or send sample to us , we can creat to supply it for you .
