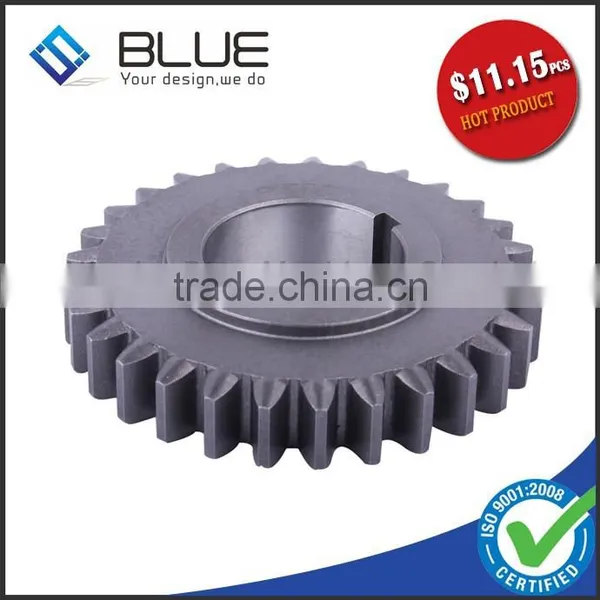

OEM Timing Gear, Crankshaft Timing Gear, Camshaft Timing Gear for Automotive Aftermarket
US$ 11 - 11.35
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Model Number:
BG005 timing gear
Brand Name:
BLUE
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo / Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Precision Gear Wheel/Wheel Gear/Metal Gear WheelUS$ 9 - 9.1MOQ: 1 Piece -
High Strength Mechanical Synchronizer Gear, Cylindrical Gear, Engine Timing GearUS$ 12.95 - 14.95MOQ: 1 Piece
-
CNC Machined Steel Gear, Metal Gear, Large Metal Gear of Power TransmissionUS$ 9 - 9.3MOQ: 1 Piece
-
Automatic Internal Helical Gear With Hardness HRC58~62US$ 7 - 7.8MOQ: 1 Piece
-
Customized Wheel Gear For Automotive AftermarketUS$ 8.9 - 9.5MOQ: 1 Piece
Place of Origin
Zhejiang, China
Model Number
BG005 timing gear
Brand Name
BLUE
Material
Other, Steel, 20CrMnTi or customized
OEM Timing Gear, Crankshaft Timing Gear, Camshaft Timing Gear for automotive aftermarket
| SAMPLE INFORMATION | |
| Sample QTY | 1 PCS |
| Sample Cost | For Free |
| Delivery Time | 3 Workdays |
| Courier Transportion | Around 3 Workdays |
| GEAR PARAMETERS | ||
MAIN PARAMETER |
SYMBOL |
SIZE (mm) |
| Module | m | 6 |
| Teeth | z | 29 |
| Pressure Angle | a | 20° |
| Tip Diameter | da | Φ132.44 |
| Part No. | BG005 | |
| Net Weight | 1677g | |
| Material | 20CrMnTi | |
| Surface Finish | Carburizing treatment | |
| Hardness | HRC 58~64 | |
| Tooth Accuracy | ISO/GB Class 7 |
|

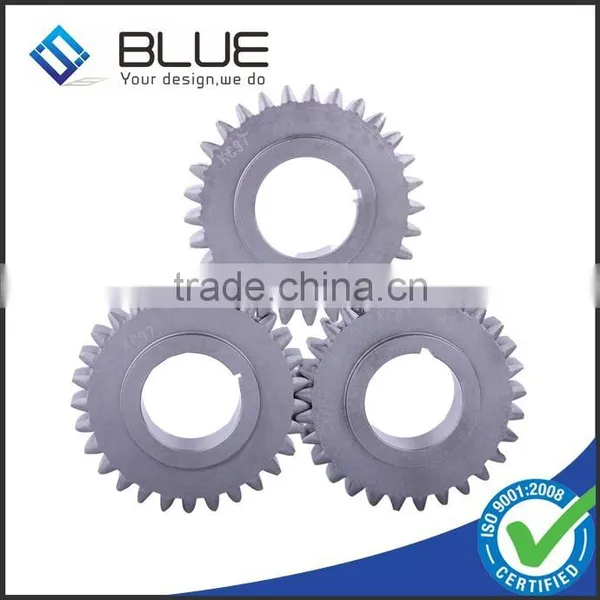

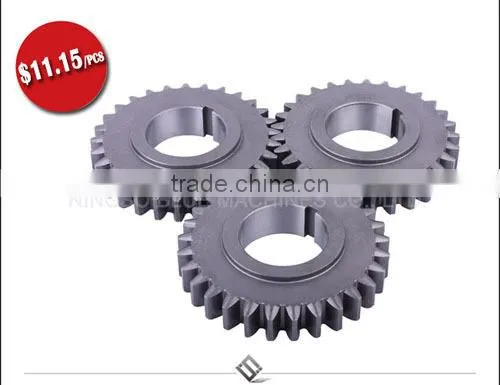

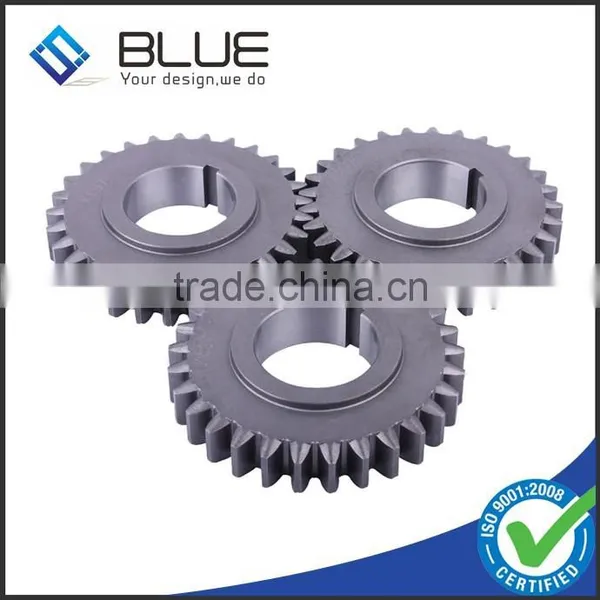

More Pictures:
| PRODUCTS RANGE | |||||
| MATERIAL | Carbon Steel | SAE1020, SAE1045, Cr12, 40Cr, Y15Pb, 1214L….. | |||
| Alloy Steel | 20CrMnTi, 16MnCr5, 20CrMnMo, 41CrMo, 17CrNiMo5…… | ||||
| Brass/Bronze | HPb59-1, H70, CuZn39Pb2, CuZn40Pb2,C38000, CuZn40…… | ||||
| MACHINING PROCESS | Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding and Gear Lapping | ||||
| MODULES | 1.0, 1.25, 1.5, 1.75, 2.0, 2.25, 2.5……….8.0 | ||||
| TOLERANCE CONTROL | Outer Diameter | ±0.005 mm | |||
| Length Dimension | ±0.05 mm | ||||
| TEETH ACCURACY | DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0 | ||||
| HEAT TREATMENT | Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding…… | ||||
| SURFACE TREATMENT | Blacking, Polishing, Anodization, Chrome plating, Zinc plating, Nickel plating…… | ||||
| STANDARD | European , American or Britain standard…… | ||||
| PLANT CAPACITY | |||||
| MACHINE NAME | MACHINE QUANTITY | BRAND & FEATURE | |||
| Gear Hobbing Machine | 14 Units | CHINA CHMTI | |||
| Gear Shaving Machine | 4 Units | CHINA N2M | |||
| Gear Shaping Machine | 7 Units | CHINA N2M | |||
| Gear Grinding Machine | 21 Units | Shanghai Machine Tool | |||
| Chamfering machine | 2 Units | CHINA N2M | |||
| Drilling Machine | 3 Units | Hangzhou Xihu Driling Machine Co., Ltd | |||
| CNC Milling Machine | 2 Units | Germany Hans | |||
| Gear Shape detector | 1 Unit | Harbin Measuring & Cutting Tool Group | |||
| Heat Treatment Machine | 1 Unit | Jiangsu Standard Electric Furnace Co., Ltd. | |||

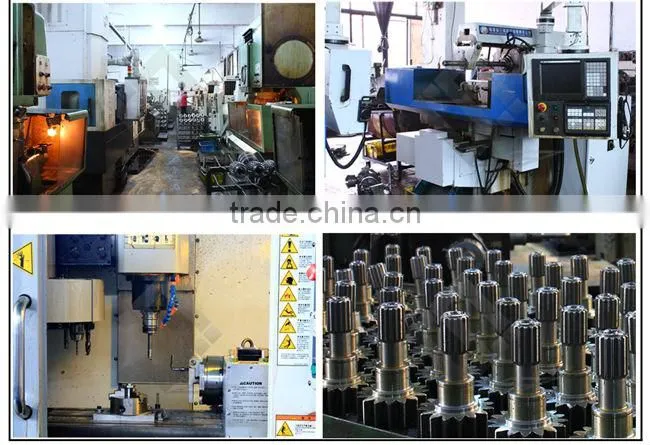

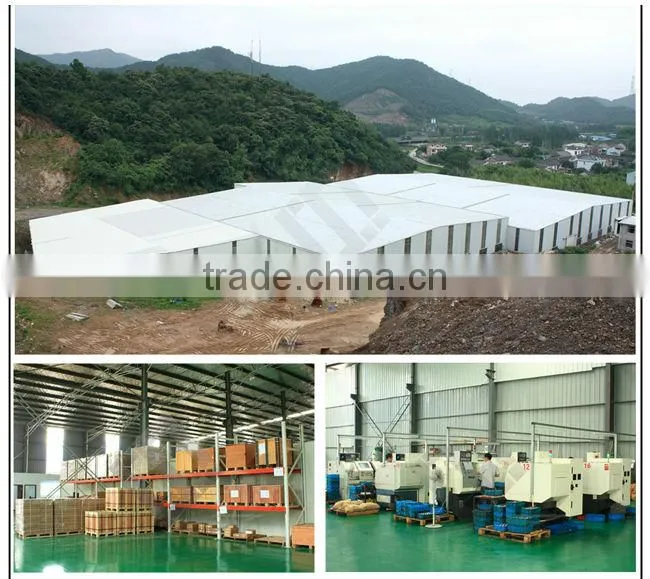

| PLANT PICTURES | |||||
