High Strength Mechanical Synchronizer Gear, Cylindrical Gear, Engine Timing Gear
US$ 12.95 - 14.95
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Model Number:
BG019 synchronizer gear
Brand Name:
BLUE
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo / Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Machined Steel Gear, Metal Gear, Large Metal Gear of Power TransmissionUS$ 9 - 9.3MOQ: 1 Piece -
Automatic Internal Helical Gear With Hardness HRC58~62US$ 7 - 7.8MOQ: 1 Piece
-
Customized Wheel Gear For Automotive AftermarketUS$ 8.9 - 9.5MOQ: 1 Piece
-
Atv Engine Reverse Gear With Material 20CrMnTiUS$ 13.9 - 14.1MOQ: 1 Piece
-
HOT-SELLING Custom Made Gear for Tractor AftermarketUS$ 7 - 7.8MOQ: 1 Piece
Place of Origin
Zhejiang, China
Model Number
BG019 synchronizer gear
Brand Name
BLUE
Material
Steel
High Strength Mechanical Synchronizer Gear, Cylindrical Gear, Engine Timing Gear
| SAMPLE INFORMATION | |
| Sample QTY | 1 PCS |
| Sample Cost | For Free |
| Delivery Time | 3 Workdays |
| Courier Transportion | Around 3 Workdays |

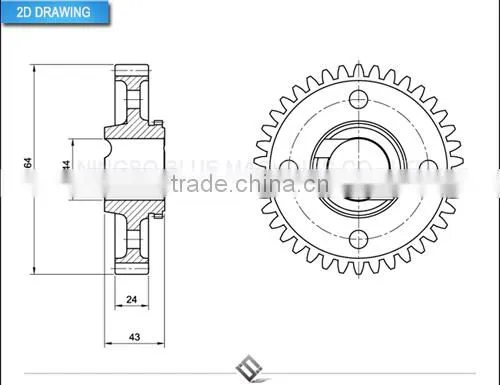

| GEAR PARAMETERS | ||
MAIN PARAMETER |
SYMBOL |
SIZE (mm) |
| Module | m | 3.75 |
| Teeth | z | 38 |
| Pressure Angle | a | 24° |
| Tip Diameter | da | 164 |
| Part No. | BG019 | |
| Net Weight | 2525 g | |
| Material | 20CrMnTi | |
| Surface Finish | Carburizing treatment | |
| Hardness | HRC 58~64 | |
| Tooth Accuracy | ISO/GB Class 7 |
|
More Pictures:
| PRODUCTS RANGE | |||||
| MATERIAL | Carbon Steel | SAE1020, SAE1045, Cr12, 40Cr, Y15Pb, 1214L….. | |||
| Alloy Steel | 20CrMnTi, 16MnCr5, 20CrMnMo, 41CrMo, 17CrNiMo5…… | ||||
| Brass/Bronze | HPb59-1, H70, CuZn39Pb2, CuZn40Pb2,C38000, CuZn40…… | ||||
| MACHINING PROCESS | Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding and Gear Lapping | ||||
| MODULES | 1.0, 1.25, 1.5, 1.75, 2.0, 2.25, 2.5……….8.0 | ||||
| TOLERANCE CONTROL | Outer Diameter | ±0.005 mm | |||
| Length Dimension | ±0.05 mm | ||||
| TEETH ACCURACY | DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0 | ||||
| HEAT TREATMENT | Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding…… | ||||
| SURFACE TREATMENT | Blacking, Polishing, Anodization, Chrome plating, Zinc plating, Nickel plating…… | ||||
| STANDARD | European , American or Britain standard…… | ||||
| PLANT CAPACITY | |||||
| MACHINE NAME | MACHINE QUANTITY | BRAND & FEATURE | |||
| Gear Hobbing Machine | 14 Units | CHINA CHMTI | |||
| Gear Shaving Machine | 4 Units | CHINA N2M | |||
| Gear Shaping Machine | 7 Units | CHINA N2M | |||
| Gear Grinding Machine | 21 Units | Shanghai Machine Tool | |||
| Chamfering machine | 2 Units | CHINA N2M | |||
| Drilling Machine | 3 Units | Hangzhou Xihu Driling Machine Co., Ltd | |||
| CNC Milling Machine | 2 Units | Germany Hans | |||
| Gear Shape detector | 1 Unit | Harbin Measuring & Cutting Tool Group | |||
| Heat Treatment Machine | 1 Unit | Jiangsu Standard Electric Furnace Co., Ltd. | |||
| PLANT PICTURES | |||||
