Specifications
Inch Linear Bushing Bearings LBB121.low friction drag
2.support high loads
3.save for oil
4.ISO:9001:2000

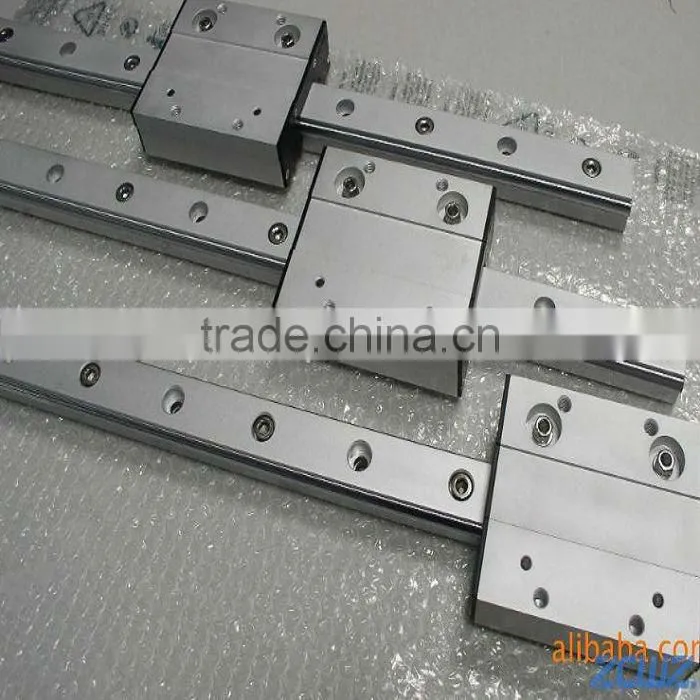

Inch Linear Bushing Bearings LBB12

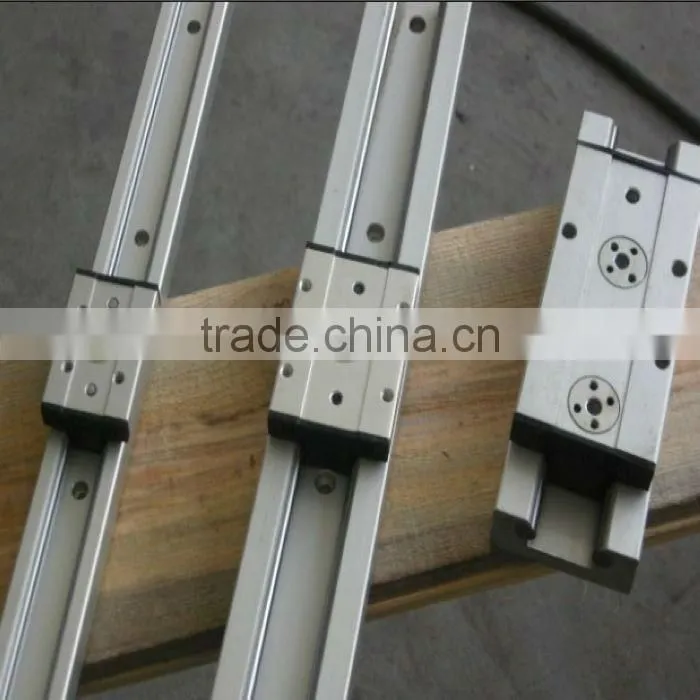

Linear-motion bearing
A linear-motion bearing or linear slide is a bearing designed to provide free motion in one dimension. There are many different types of linear motion bearings.
Motorized linear slides such as machine slides, XY tables, roller tables and some dovetail slides are bearings moved by drive mechanisms. Not all linear slides are motorized, and non-motorized dovetail slides, ball bearing slides and roller slides provide low-friction linear movement for equipment powered by inertia or by hand. All linear slides provide linear motion based on bearings, whether they are ball bearings, dovetail bearings, linear roller bearings, magnetic or fluid bearings. XY Tables, linear stages, machine slides and other advanced slides use linear motion bearings to provide movement along both X and Y multiple axis.
Technical specification of Inch Linear Bushing Bearings LBB12
1.The load ratings are based on Load Direction A loading. See the product technical pages for more information.
2.Tolerance data is available in the product technical pages.
3.Stainless steel models are available.
| Attributes | Values |
| Bearing Type | standard type |
| Dynamic Load Rating (Cr) | 137 |
| Static Load Rating (Cor) | 378 |
| Shaft Dia. (Fw) | 0.750 |
| Outside Dia. (D) | 1.250 |
| Length ( C ) | 1.625 |
| Groove-to-groove length (C1) | 1.166 |
| Groove Width (C2) | 0.056 |
| Groove Dia. (D1) | 1.194 |
| Weight (g) | 79.50 |
| Material | 52100 chrome steel, or equivalent |
Characteristics of Inch Linear Bushing Bearings LBB12
1.Linear bearings enble high precision linear motion on round shaft by ulitizing recirculating ball pathways.
2.The patened recirculation curve enbles CLUNT's linear bearing to sustain heavy loads with low noise and high stiffness.
3.CLUNT's diverse line of linear bearings perform under almost under any environmental conditions and load conditions and capacities to satisfy a wide range of applications.
Descriptions
Application of Inch Linear Bushing Bearings LBB12
They are widely used in electronic aid, tension tester, digitized three dimensional coordinate measurement system, and slide unit of multispindle, machine
punch, grinders, automatic gas cutting machine, printer, card cull eliminator, food packaging machinery etc.

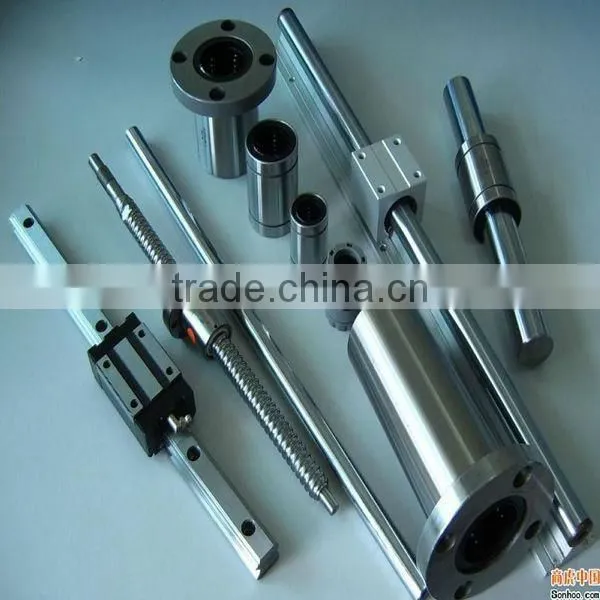

part models of linear bearing:
| Model | NO.of row | Inner size | Outer size | Length | Snapring groove | ||
| dr | D | L | B | D1 | W | ||
| LM6UU | 4 | 6 | 12 | 19 | 13.5 | 11.5 | 1.1 |
| LM8UU | 4 | 8 | 15 | 17 | 11.5 | 14.3 | 1.1 |
| LM8UU | 4 | 8 | 15 | 24 | 17.5 | 14.3 | 1.1 |
| LM10UU | 4 | 1 0 | 19 | 29 | 22 | 18 | 1.3 |
| LM12UU | 4 | 1 2 | 21 | 30 | 23 | 20 | 1.3 |
| LM13UU | 4 | 1 3 | 23 | 32 | 23 | 22 | 1.3 |
| LM16UU | 5 | 1 6 | 28 | 37 | 26.5 | 27 | 1.6 |
| LM20UU | 5 | 2 0 | 32 | 42 | 30.5 | 30.5 | 1.6 |
| LM25UU | 6 | 2 5 | 40 | 59 | 41 | 38 | 1.85 |
| LM30UU | 6 | 3 0 | 45 | 64 | 44.5 | 43 | 1.85 |
| LM35UU | 6 | 3 5 | 52 | 70 | 49.5 | 49 | 2.1 |
| LM40UU | 6 | 4 0 | 60 | 80 | 60.5 | 57 | 2.1 |
| LM50UU | 6 | 5 0 | 80 | 100 | 74 | 76.5 | 2.6 |
| LM60UU | 6 | 6 0 | 90 | 110 | 85 | 86.5 | 3.15 |
| LME8UU | 4 | 8 | 16 | 25 | 16.5 | 15.2 | 1.1 |
| LME10UU | 4 | 1 0 | 19 | 29 | 22 | 18 | 1.3 |
| LME12UU | 4 | 1 2 | 22 | 32 | 22.9 | 21 | 1.3 |
| LME16UU | 5 | 1 6 | 26 | 36 | 24.9 | 24.9 | 1.3 |
| LME20UU | 5 | 2 0 | 32 | 45 | 31.5 | 30.3 | 1.6 |
| LME25UU | 6 | 2 5 | 40 | 58 | 44.1 | 37.5 | 1.85 |
| LME30UU | 6 | 3 0 | 47 | 68 | 52.1 | 44.5 | 1.85 |
| LME40UU | 6 | 4 0 | 62 | 80 | 60.6 | 59 | 2.15 |
| LME50UU | 6 | 5 0 | 75 | 100 | 77.6 | 72 | 2.65 |
| LME60UU | 6 | 6 0 | 90 | 125 | 101.7 | 86.5 | 3.15 |

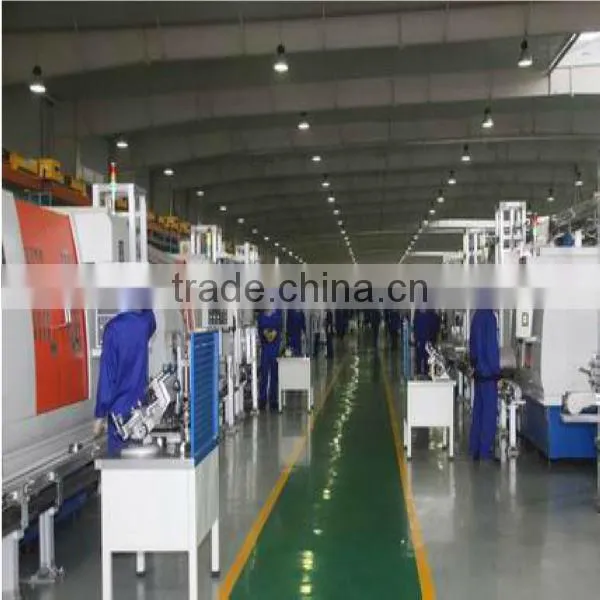

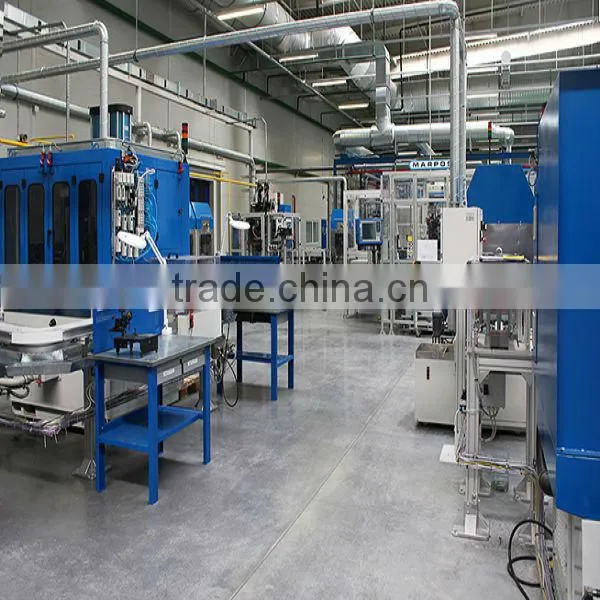

Company introduction
Jinan Kelunte Bearing Co., Ltd. is a professional bearing manufacturer and is engaged in the imported bearings.
Our company is engaged in the imported bearings, bearings made of specialized companies, company's main imported brands, Domestic brands: Harbin HRB bearings, Wafangdian ZWZ bearings, Luoyang LYC bearings, and other major brands. Our products are widely used in automotive, electrical, petroleum, chemical machinery, engineering machinery, mine machinery, steel, railways, textile machinery and agricultural machinery, and other fields, the company adequate supply, inventory rich. Transportation is convenient, welcome new customers to visit us !
These products are widely used in metallurgy, power, petrochemical, construction machinery, railway, steel, papermaking, cement, mining and other industries.
With adequate supply, large stock and convenient transportation, we warmly welcome new customers to visit us.
1.Staff mission: to develop, innovation, cooperation and good faith.
2,Company's goals: a hundred years the name Enterprise, the industry fresh air.
3,Staff objectives: Choi-chi, with a minor, win-win progress.
4,Business philosophy: science and technology, quality, service, win-win situation.
5,Service spirit: Dissemination of cutting-edge technology together to create wealth.
6,Staff spirit: innovation, cooperation, sincerity and dedication.
7,Development strategy: the internationalization of enterprises to enter the brand name.
8,The core concept: the market conception of qualified personnel, learning concept.
