Conveying Machinery Bearing 22317 & Spherical Roller Bearing

Conveying Machinery Bearing 22317 & Spherical Roller Bearing thumbnail-1
Conveying Machinery Bearing 22317 & Spherical Roller Bearing thumbnail-2
Conveying Machinery Bearing 22317 & Spherical Roller Bearing thumbnail-3
Conveying Machinery Bearing 22317 & Spherical Roller Bearing photo-1
Conveying Machinery Bearing 22317 & Spherical Roller Bearing photo-2

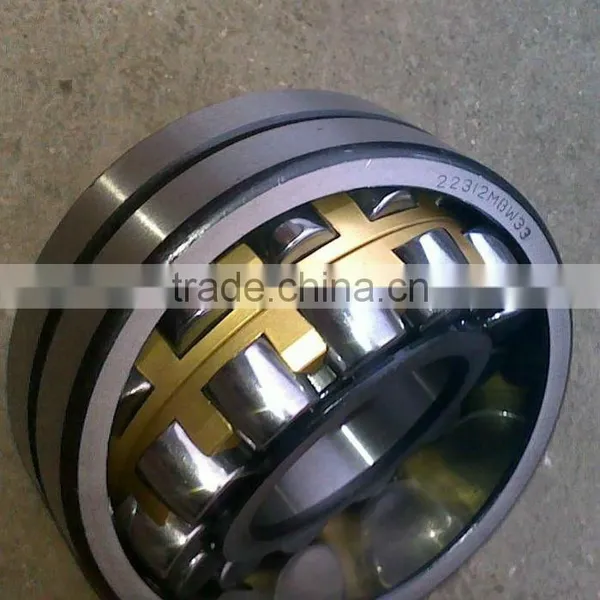

Conveying Machinery Bearing 22317 & Spherical Roller Bearing photo-3
US$ 40 - 40 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Bore Size:
85,
Outside Diameter:
180,
Contact Supplier Request Quote Chat Now
Jinan Kelunte Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CLUNT
Bore Size 85,
Outside Diameter 180,
Model Number 22317
Precision Rating P0 P6 P5 P4
Seals Type UNSEALED
Number of Row Double Row
Place of Origin Shandong, China

Specifications

conveying machinery bearing 22317
1.spherical roller bearing
2.High speed
3.China manufacturer
4.ISO:9001:2000

conveying machinery bearing 22317 & spherical roller bearing

Introduction of conveying mahcinery bearing 22317

Spherical roller bearings are usually used in  conveying machinery .So we can call it conveying machinery bearing.We supply all type of conveying machinery bearings, the material include high quality bearing steel and carbon steel. At the same time the bearings can be customized according to your needs.

Conveying machinery bearings are principally provided with two rows of symmetrical spherical rollers and a common sphere raceway in out ring, the two inner ring raceways are included at an angle to the bearing axial.The bearings have good self aligning ability and can operate when the shaft



deflection under load or the shaft deflection under load or the shaft misaligningment in



mounting and their permissible aligning angle is 1 to 2.5 degree.



  Feature of convey machinery bearing 22317

1.Heavy load carrying capacity



2.Anti-impact ability



3.Aadial loads, axial loads in two directions



4.Permit a low limiting speed



5.Low noise and high precision



6.High quality and competitive price

Details of convery mahcinery bearing 22317



symbol 22317CA
mass [kg]: 7.27
basic load rating (dynamic) C [kN] 447
basic load rating (static) Co [kN] 556
limiting speeds (grease) [min-1] 2200
limiting speeds (oil) [min-1] 2800
d [mm] 85
D [mm] 180
B [mm] 60
r1,2 min [mm] 3



 Other spherical bearings can be used in convery machinery

Bearing numbers Dimensions Load ratings Mass
 d D B r Dynamic Static
Cylindrical bore Tapered bore  mm min Cr (kN) C0r (kN) ≈kg

22216 CC
22216 CCK
 80 140 33 2 176 228 2.05
22216 E
22216 EK
 80 140 33 2 207 270 2.1
21316 CC
21316 CCK
 80 170 39 2.1 255 335 4.2
22316 CC/W33
22316 CCK/W33
 80 170 58 2.1 374 455 6.2
22316 E
22316 EK
 80 170 58 2.1 431 540 6.2
22217 CC/W33
22217 CCK/W33
 85 150 36 2 210 270 2.55
22217 E
22217 EK
 85 150 36 2 244 325 2.65
21317 CC
21317 CCK
 85 180 41 3 293 375 5
22317 CC/W33
22317 CCK/W33
 85 180 60 3 420 520 7.25
22317 E
22317 EK
 85 180 60 3 477 620 7.25
22218 CC/W33
22218 CCK/W33
 90 160 40 2 253 340 3.4
22218 E
22218 EK
 90 160 40 2 282 375 3.4
23218 CC/W33
23218 CCK/W33
 90 160 52.4 2 311 440 4.6

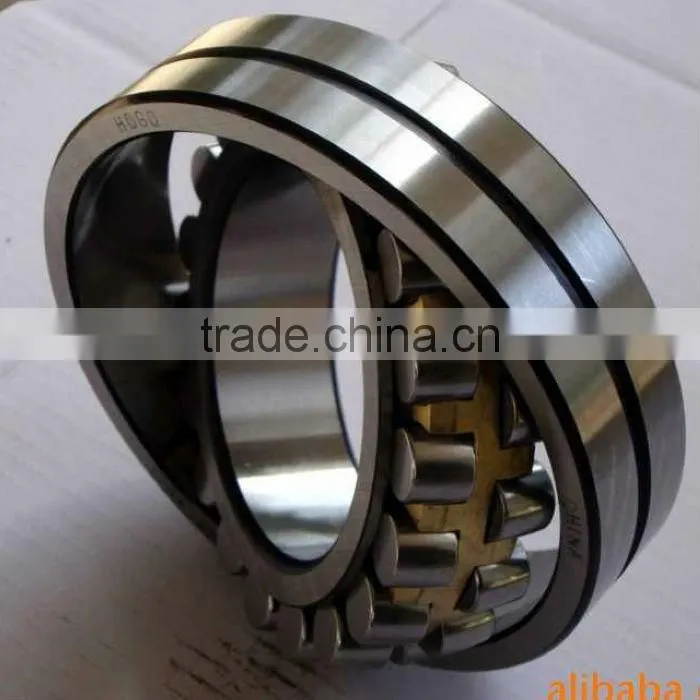

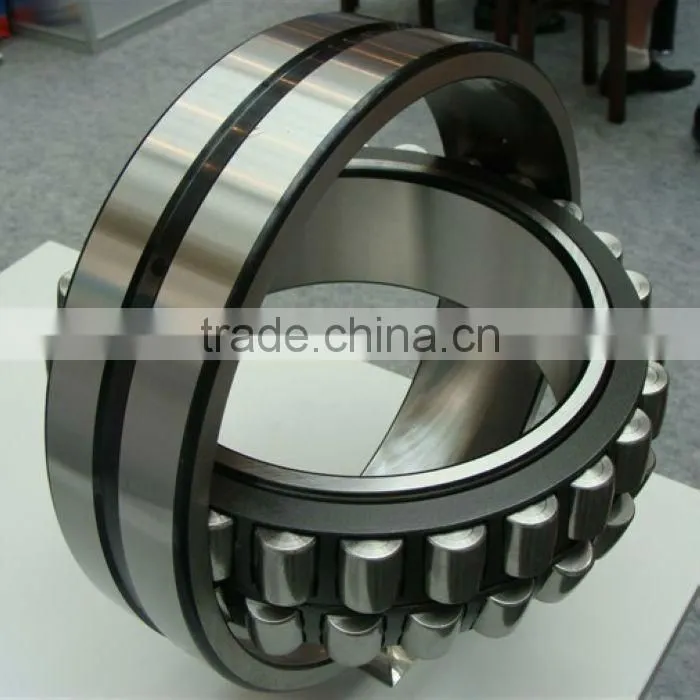

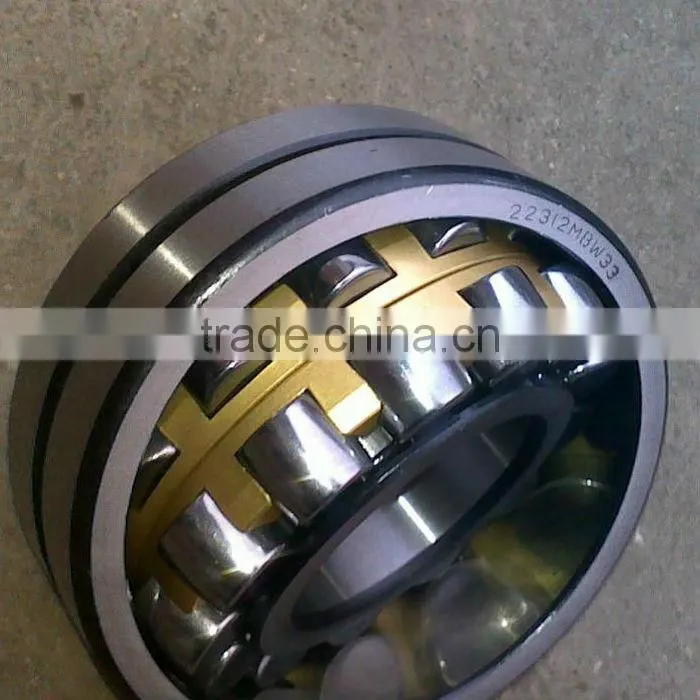

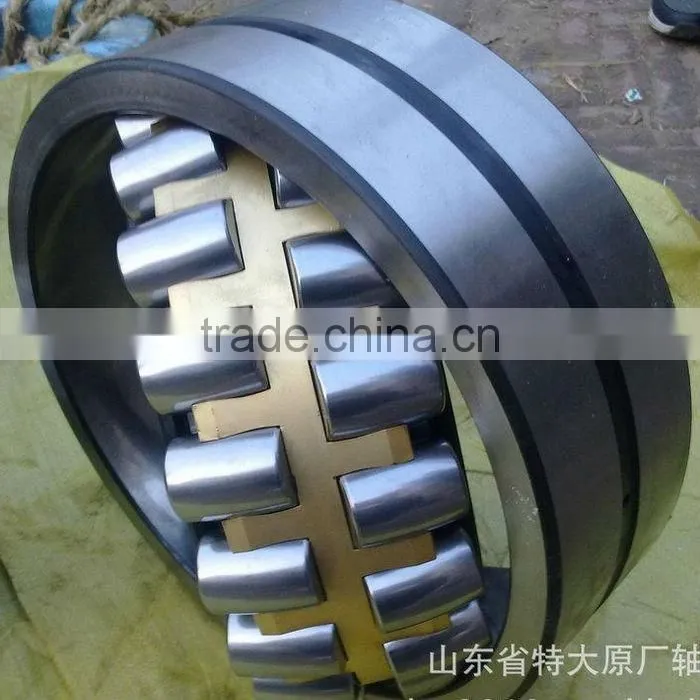

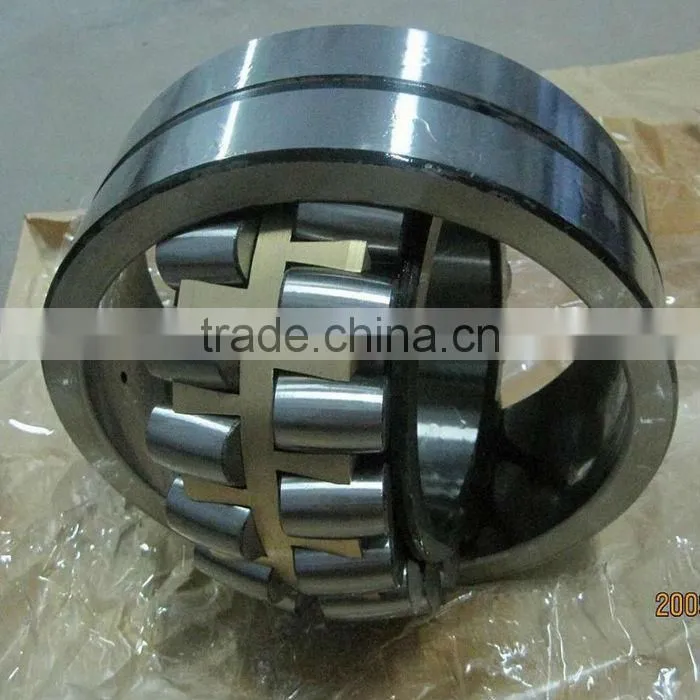

 Picture of bearings

conveying machinery bearing 22317 & spherical roller bearingconveying machinery bearing 22317 & spherical roller bearingconveying machinery bearing 22317 & spherical roller bearingconveying machinery bearing 22317 & spherical roller bearingconveying machinery bearing 22317 & spherical roller bearing

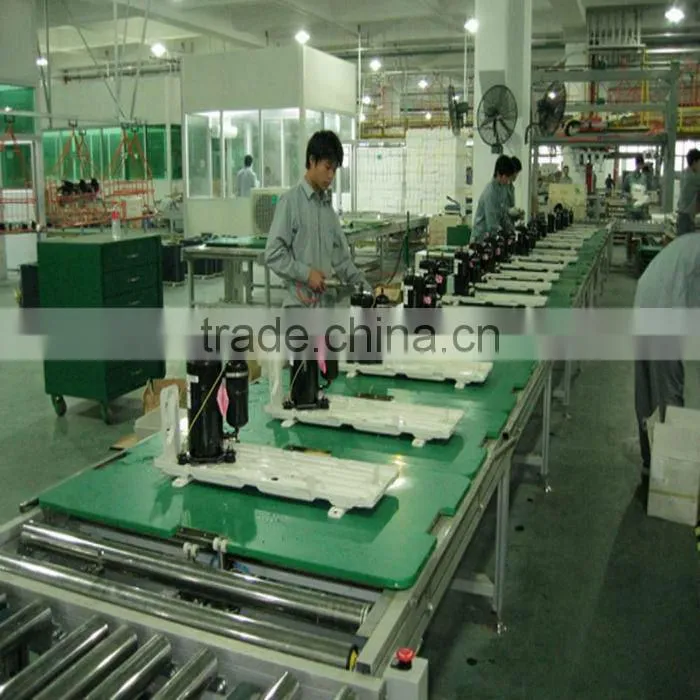

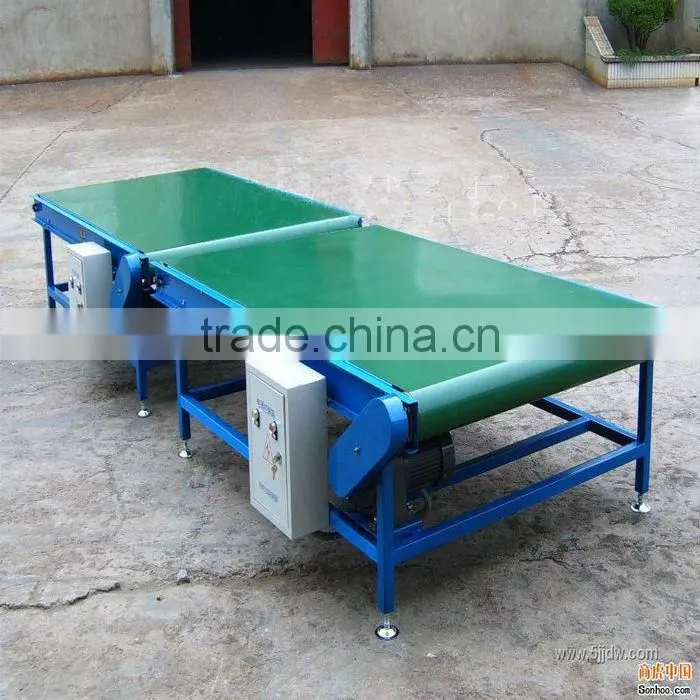

Picture of convery machinery bearing application

conveying machinery bearing 22317 & spherical roller bearingconveying machinery bearing 22317 & spherical roller bearing
