Self-aligning Roller Bearing 22216 K CK MB W33 China Manufacturer

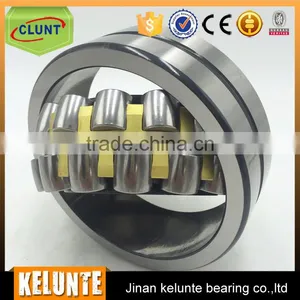

Self-aligning Roller Bearing 22216 K CK MB W33 China Manufacturer thumbnail-1
Self-aligning Roller Bearing 22216 K CK MB W33 China Manufacturer thumbnail-2
Self-aligning Roller Bearing 22216 K CK MB W33 China Manufacturer thumbnail-3
Self-aligning Roller Bearing 22216 K CK MB W33 China Manufacturer thumbnail-4
Self-aligning Roller Bearing 22216 K CK MB W33 China Manufacturer thumbnail-5
Self-aligning Roller Bearing 22216 K CK MB W33 China Manufacturer thumbnail-6
Self-aligning Roller Bearing 22216 K CK MB W33 China Manufacturer photo-1
Self-aligning Roller Bearing 22216 K CK MB W33 China Manufacturer photo-2
Self-aligning Roller Bearing 22216 K CK MB W33 China Manufacturer photo-3

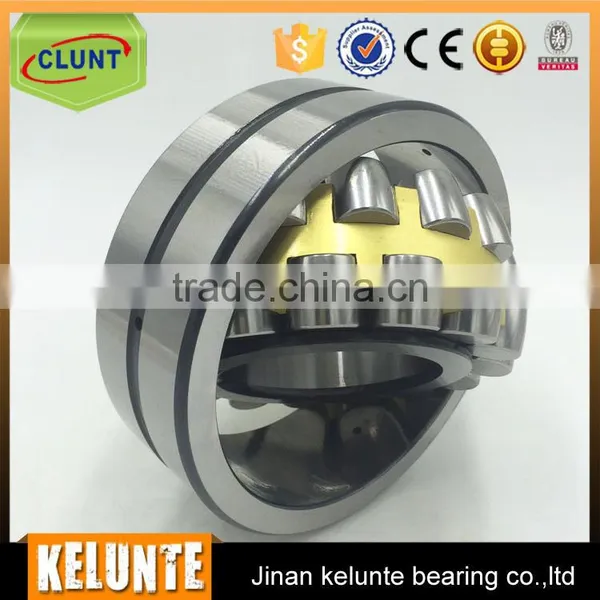

Self-aligning Roller Bearing 22216 K CK MB W33 China Manufacturer photo-4

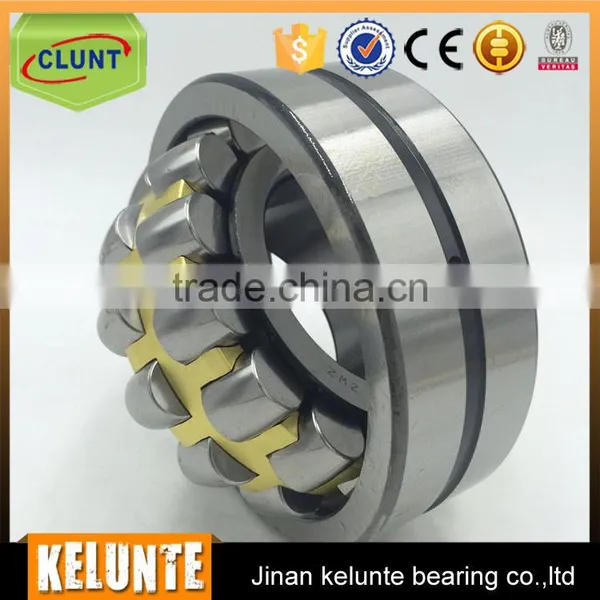

Self-aligning Roller Bearing 22216 K CK MB W33 China Manufacturer photo-5

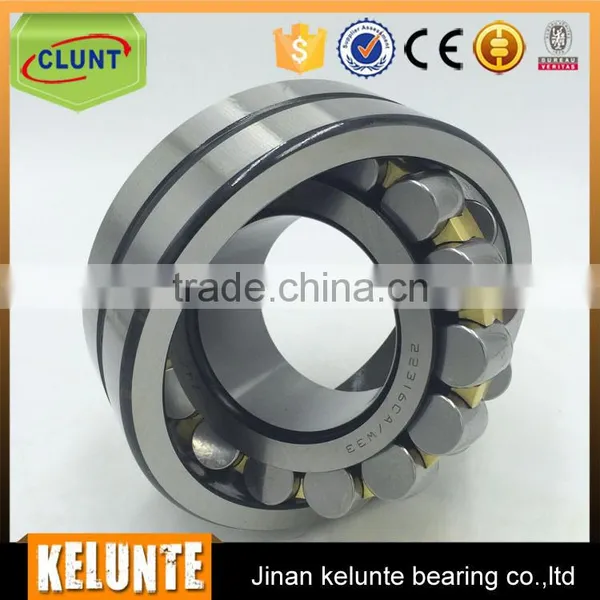

Self-aligning Roller Bearing 22216 K CK MB W33 China Manufacturer photo-6
US$ 15 - 19 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Bore Size:
80,
Outside Diameter:
140,
Contact Supplier Request Quote Chat Now
Jinan Kelunte Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CLUNT
Bore Size 80,
Outside Diameter 140,
Model Number 22216
Precision Rating P0 P6 P5 P4 P2
Seals Type OPEN
Number of Row Double Row
Place of Origin Shandong, China

Self-aligning roller bearing 22216 K CK MB W33 China manufacturer

Self-aligning roller bearing 22216 K CK MB W33 China manufacturer:

22216 Spherical roller bearing CLUNT Brand, the inner diameter is 80mm, outer diameter is 140mm and the width is 33mm, this is a popular size that could be used in many applications.

  • Item: 22216 Ball Bearing
  • Type: Spherical Roller Ball Bearing
  • Size: 80mm x 140mm x 33mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 299,000 N
  • Static load rating Cor: 269,000 N
  • Limiting Speed:
    • Grease Lubrication: 3,600 RPM
    • Oil Lubrication: 4,500 RPM



The feature of spherical Roller Bearing 22216



22216 Chrome Steel bearing, spherical roller bearing, 22216 bearing is made of Chrome Steel.

Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations.

Type: Spherical Roller Bearing

Material: Chrome Steel Gcr15

Size:80x140x33mm

ID (inner diameter) bore: 80mm

OD (outer diameter):140mm

Width/Heigh/Thickness:33mm

Dimensions:80mmx140mmx33mm



 3.Our stock:




d D B rs min Cr e Y1 Y2 Cor Y0 grease oil designation weight
40 90 23 1.5 99 0.26 2.6 3.9 120 2.6 4500 6000 21308 C 0.71
40 90 23 1.5 99       120   4500 6000 21308 CA
40 90 23 1.5 99 0.26 2.6 3.9 120 2.6 4500 6000 21308 CK 0.7
40 90 23 1.5 99 0.26 2.6 3.9 120 2.6 4500 6000 21308 CK W33 0.7
45 100 25 1.5 120 0.26 2.6 3.9 135 2.6 4000 5300 21309 C 0.95
45 100 25 1.5 120       135   4000 5300 21309 CA
45 100 25 1.5 120 0.26 2.6 3.9 135 2.6 4000 5300 21309 CK 0.94
45 100 25 1.5 120 0.26 2.6 3.9 135 2.6 4000 5300 21309 CK W33 0.94
50 110 27 2 120 0.24 2.8 4.1 130 2.7 3600 4800 21310 C 1.25
50 110 27 2 120       130   3600 4800 21310 CA
50 110 27 2 120 0.24 2.8 4.1 130 2.7 3600 4800 21310 CK 1.2
50 110 27 2 120 0.24 2.8 4.1 130 2.7 3600 4800 21310 CK W33 1.2
55 120 29 2 135 0.24 2.8 4.1 155 2.7 3200 4300 21311 C 1.65
55 120 29 2 135       155   3200 4300 21311 CA
55 120 29 2 135 0.24 2.8 4.1 155 2.7 3200 4300 21311 CK 1.6
60 130 31 2.1 150 0.24 2.9 4.3 180 2.8 3000 4000 21312 C 1.95
60 130 31 2.1 150       180   3000 4000 21312 CA
60 130 31 2.1 150 0.24 2.9 4.3 180 2.8 3000 4000 21312 CK 1.9
65 140 33 2.1 220 1.24 2.8 4.2 290 2.8 2800 3800 21313 C 2.45
65 140 33 2.1 220       290   2800 3800 21313 C A
65 140 33 2.1 220 0.24 2.8 4.2 290 2.8 2800 3800 21313 CK 2.4
70 150 35 2.1 250 0.23 2.9 4.4 310 2.9 2600 3400 21314 C
70 150 35 2.1 250       310   2600 3400 21314 CA 4.35
70 150 35 2.1 250 0.23 2.9 4.4 310 2.9 2600 3400 21314 CK 3
75 160 37 2.1 280 0.23 2.9 4.4 360 2.9 2400 3200 21315 C W33
75 160 37 2.1 280 0.23 2.9 4.4 360 2.9 2400 3200 21315 CK W33 3.5
80 170 39 2.1 310 0.23 2.9 4.4 400 2.9 2200 3000 21316 C W33 4.25
80 170 39 2.1 310       400   2200 3000 21316 CA
80 170 39 2.1 310 0.23 2.9 4.4 400 2.9 2200 3000 21316 CK W33 4.2
85 180 41 3 350 0.22 3 4.5 450 2.9 2200 2800 21317 C 5.1
85 180 41 3 350       450   2200 2800 21317 CA
85 180 41 3 350 0.22 3 4.5 450 2.9 2200 2800 21317 CK 5
90 190 43 3 385 0.22 3 4.5 510 2.9 2200 2800 21318 C 5.8
90 190 43 3 385       510   2200 2800 21318 CA
90 190 43 3 385 0.22 3 4.5 510 2.9 2200 2800 21318 CK 5.7
95 200 45 3 420 0.22 3 4.5 580 3 2000 2600 21319 CA 7.43
95 200 45 3 385 0.22 3.1 4.6 530 3 1800 2400 21319 MB 7.15
95 200 45 3 385 0.22 3.1 4.6 530 3 1800 2400 21319 MBK 7
100 215 47 3 460 0.22 3.1 4.7 640 3.1 1800 2400 21320 CA 9.07
100 215 47 3 425 0.22 3.1 4.7 580 3.1 1700 2200 21320 MB 8.8
100 215 47 3 425 0.22 3.1 4.7 580 3.1 1700 2200 21320 MBK 8.3
110 240 698 2.1 570       690   1200 1600 21322 CA
110 240 50 3 510 0.21 3.2 4.8 690 3.2 1500 2000 21322 MBK 11.7

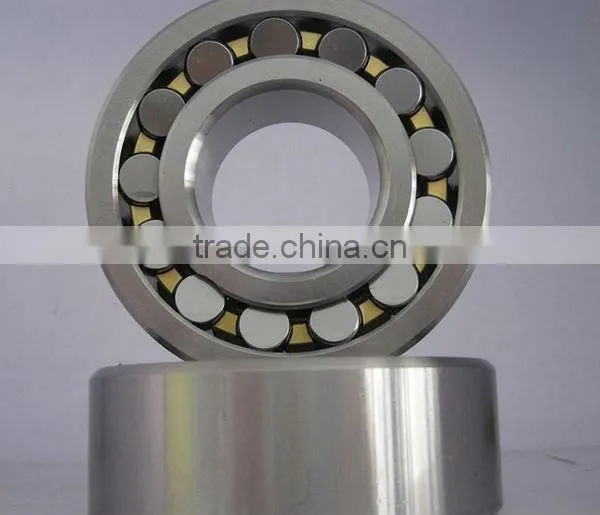

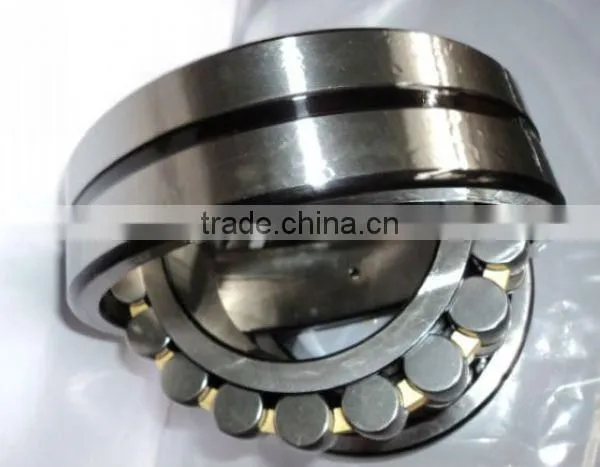

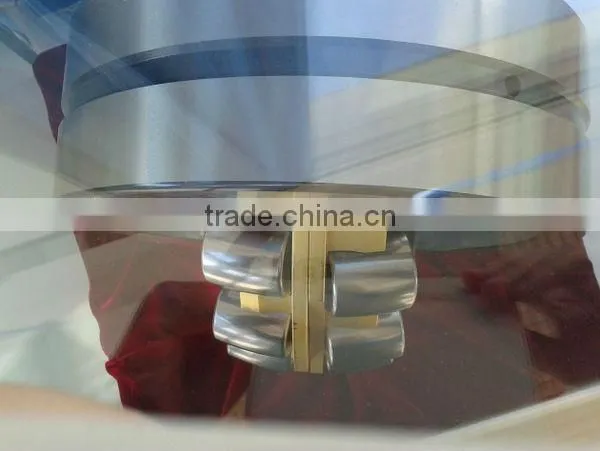

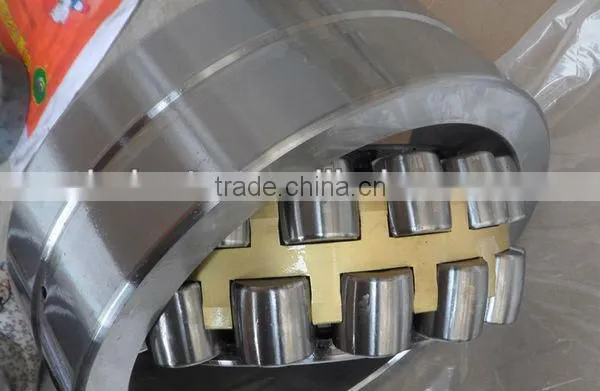

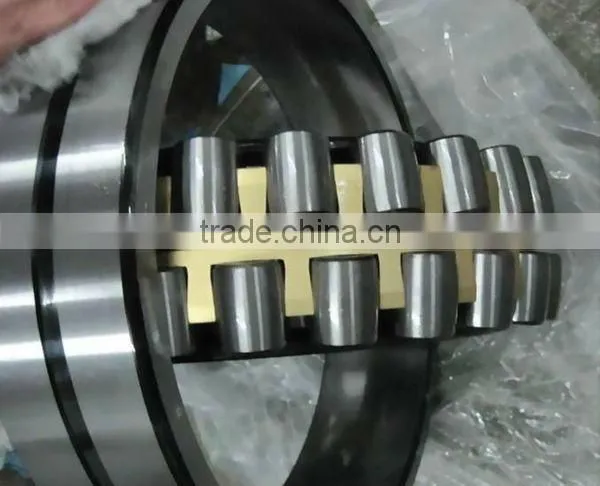

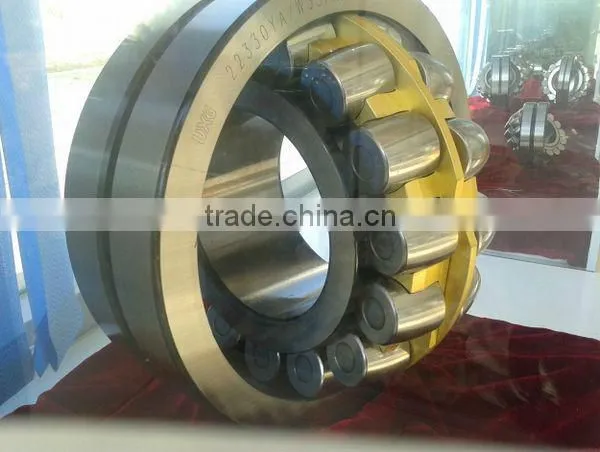

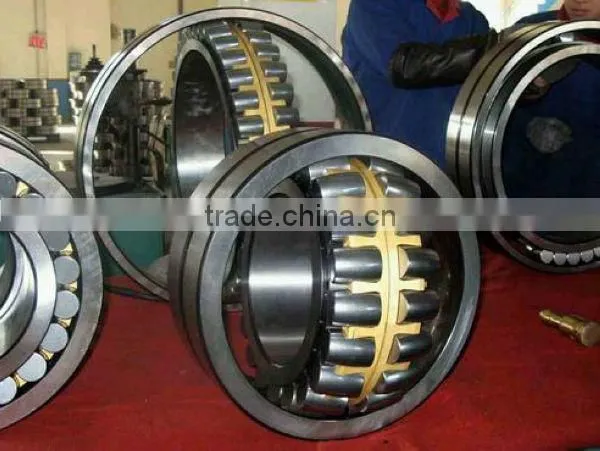

Self-aligning roller bearing 22216 K CK MB W33 China manufacturerSelf-aligning roller bearing 22216 K CK MB W33 China manufacturerSelf-aligning roller bearing 22216 K CK MB W33 China manufacturerSelf-aligning roller bearing 22216 K CK MB W33 China manufacturer

Self-aligning roller bearing 22216 K CK MB W33 China manufacturerSelf-aligning roller bearing 22216 K CK MB W33 China manufacturerSelf-aligning roller bearing 22216 K CK MB W33 China manufacturer

Company Information

Jinan Kelunte Bearing Co., Ltd. is a professional bearing manufacturer and is engaged in the imported bearings. Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing,Ceramic Bearing,cylindrical roller bearing, spherical roller bearing . and our brands:CLUNT.

Self-aligning roller bearing 22216 K CK MB W33 China manufacturer

Self-aligning roller bearing 22216 K CK MB W33 China manufacturer

Packaging & Shipping

Self-aligning roller bearing 22216 K CK MB W33 China manufacturer

Packing details:

1.brand Plastic bag+brand color box+carton+wooden pallet.

2.Neutral package+carton+wooden pallet.

3.According to customer request.

4.Own brand:CLUNT package+carton+wooden pallet.



Payment Terms:

TT,Western Union,Paypal

How much Deposite?

T/T 30% of total as deposit, banlance 70% Before Shipment

Our Services

 Jinan kelunte bearing Co., Ltd.  keep improving and do our best to serve you.



1. OEM and ODM  bearing assembly are welcome!

2. Online 24 hours

3. Free sample



We are very honored if you come to  visit our factory, welcome at any time
Self-aligning roller bearing 22216 K CK MB W33 China manufacturer
EXHIBITION CUSTOMERS

Self-aligning roller bearing 22216 K CK MB W33 China manufacturer

CERTIFICATE SHOWING

Self-aligning roller bearing 22216 K CK MB W33 China manufacturer

FAQ

Q:Are you factory or trading company?

A:We are factory.

Q:Where is your factory located in?

A:Linqing.

Q:Could i get samples before order?

A:Yes,sure,we can send you samples,let you check quality first.

Q:What is your MOQ?

A:one piece.

Q:What is your delivery time?

A:For small quantity we have in the stock,large quantity need 10-15 days.

Q:What is your payment terms?

A:Western Union,TT,Paypal.

Q:Do you supply OEM?

A:Sure
