China Yiwu City Bearing Spherical Roller Bearing 22222 W33

China Yiwu City Bearing Spherical Roller Bearing 22222 W33 thumbnail-1
China Yiwu City Bearing Spherical Roller Bearing 22222 W33 thumbnail-2
China Yiwu City Bearing Spherical Roller Bearing 22222 W33 thumbnail-3
China Yiwu City Bearing Spherical Roller Bearing 22222 W33 thumbnail-4
China Yiwu City Bearing Spherical Roller Bearing 22222 W33 thumbnail-5
China Yiwu City Bearing Spherical Roller Bearing 22222 W33 thumbnail-6
China Yiwu City Bearing Spherical Roller Bearing 22222 W33 photo-1
China Yiwu City Bearing Spherical Roller Bearing 22222 W33 photo-2
China Yiwu City Bearing Spherical Roller Bearing 22222 W33 photo-3

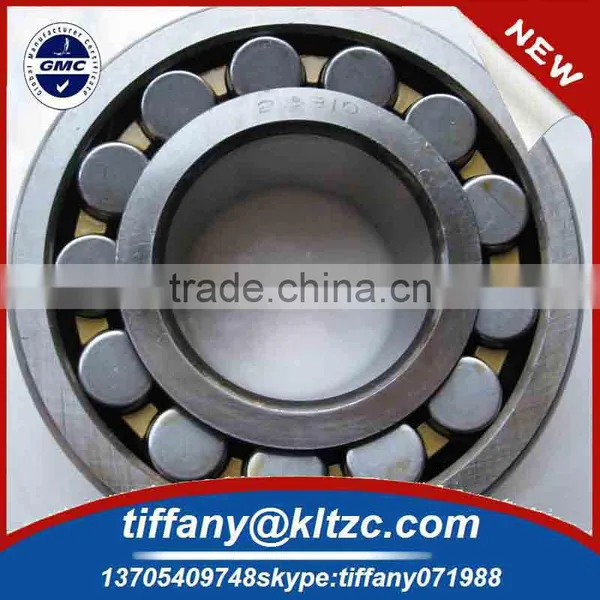

China Yiwu City Bearing Spherical Roller Bearing 22222 W33 photo-4
China Yiwu City Bearing Spherical Roller Bearing 22222 W33 photo-5
China Yiwu City Bearing Spherical Roller Bearing 22222 W33 photo-6
US$ 26.38 - 26.38 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
china brand
Bore Size:
110,
Outside Diameter:
200,
Contact Supplier Request Quote Chat Now
Jinan Kelunte Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name china brand
Bore Size 110,
Outside Diameter 200,
Model Number 22222 W33
Precision Rating P0,P6,P5
Seals Type Open style, Z, ZZ, RS, 2RS, 2RZ
Number of Row Double Row
Place of Origin Shandong, China



Product Description



 spherical roller bearing 22222 W33



Spherical Roller Bearings feature:



shown in the figures, types EA, C, CD, CA, which are designed for high load capacity, are available. Types EA, C, and CD have pressed steel cages; and type CA has machined brass cages. Type EA has especially high load capacity, features low torque, and has a high-strength cage.

An oil groove and holes are provided in the outer ring to supply lubricant and the bearing numbers are suffixed with E4.

To use bearings with oil grooves and holes, it is recommended to provide an oil groove in the housing bore, since the depth of the groove in the bearing is limited.

 china yiwu city bearing spherical roller bearing

Series 21300, 22200, 22300, 23000, 23100, 23200,24000,24100 , inch size also available.



Spherical Roller Bearings models:


22205--22240;  22308--22340;
23022--23068;  23120--23156;
23220--23240;  24020--24056;
24120--24156;  21306--21316;

Thrust Spherical Roller Bearings:
29240--29296; 29317--29368;
29380--29396; 29412--29496;
Note: For the above spherical roller bearings, we also supply CAW33, K, MW33 etc. type bearings.





china yiwu city bearing spherical roller bearing other models:



Boundary dimensions Basic load ratings Limiting speeds Mass Bearing
MM N RPM   No's
D B Rs min dynamic  static  Grease oil kg cylindrical tapered
      CR Cor       bore bore
52 18 1 35700 21600 8500 11000 0.18 22205 22205K
62 20 1 48900 30000 7500 9500 0.28 22206 22206K
72 23 1 63300 40500 6300 8000 0.43 22207 22207K
80 23 1.1 73600 47500 6000 7500 0.52 22208 22208K
90 23 1.5 82800 55000 4500 5600 0.71 21308 21308K
90 33 1.5 113000 73500 4500 5600 1 22308 22308K
85 23 1.1 77100 51000 5300 6700 0.56 22209 22209K
100 25 1.5 101000 65500 4300 5300 0.95 21309 21309K
100 36 1.5 138000 95000 3800 4800 1.35 22309 22309K
90 23 1.1 79900 54000 5000 6300 0.6 22210 22210K
110 27 2 120000 81500 3800 4800 1.2 21310 21310K
110 40 2 176000 120000 3200 4300 1.85 22310 22310K
100 25 1.5 99500 67000 4500 5600 0.82 22211 22211K
120 29 2 138000 93000 3400 4300 1.6 21311 21311K
120 43 2 199000 137000 3400 4000 2.35 22311 22311K
110 28 1.5 122000 83000 4000 5000 1.1 22212 22212K
130 31 2.1 161000 114000 3000 3800 1.95 21312 21312K
130 46 2.1 235000 166000 3000 3800 2.95 22312 22312K
120 31 1.5 144000 100000 3800 4800 1.45 22213 22213K
140 33 2.1 184000 134000 2800 3600 2.45 21313 21313K
120 48 2.1 253000 180000 2600 3400 3.55 22313 22313K
125 31 1.5 148000 104000 3600 4500 1.55 22214 22214K
150 35 2.1 207000 150000 2600 3400 3 21314 21314K
150 51 2.1 311000 228000 2400 3200 4.3 22314 22314K
130 31 1.5 154000 110000 3400 4300 1.65 22215 22215K
160 37 2.1 235000 170000 2400 3200 3.55 21315 21315K
160 55 2.1 345000 255000 2200 3000 5.25 22315 22315K
140 33 2 176000 127000 3200 4000 2.05 22216 22216K
170 39 2.1 258000 190000 2200 3000 4.2 21316 21316K
170 58 2.1 374000 275000 2000 2800 6.2 22316 22316K
150 36 2 202000 146000 3000 3800 2.55 22217 22217K
180 41 3 293000 216000 2000 2800 5 21317 21317K
180 60 3 420000 310000 1900 2600 7.25 22317 22317K
160 40 2 244000 183000 2600 3400 3.25 22218 22218K
160 52.4 2 311000 250000 1900 2600 4.6 23218 23218K
190 43 3 322000 240000 1900 2400 5.8 21318 21318K
190 64 3 477000 365000 1800 2400 8.6 22318 22318K
170 43 2.1 282000 212000 2400 3200 4 22219 22219K
200 45 3 351000 270000 1800 2400 7.15 21319 21319K
200 67 3 518000 400000 1800 2400 10 22319 22319K
165 52 2 322000 270000 2000 2800 4.4 23120 23120K
180 46 2.1 311000 236000 2200 3000 4.85 22220 22220K
180 60.3 2.1 414000 340000 1700 2200 6.7 23220 23220K
215 47 3 385000 300000 1700 2200 8.8 21320 21320K
215 73 3 610000 475000 1700 2200 13 22320 22320K





Product Picture

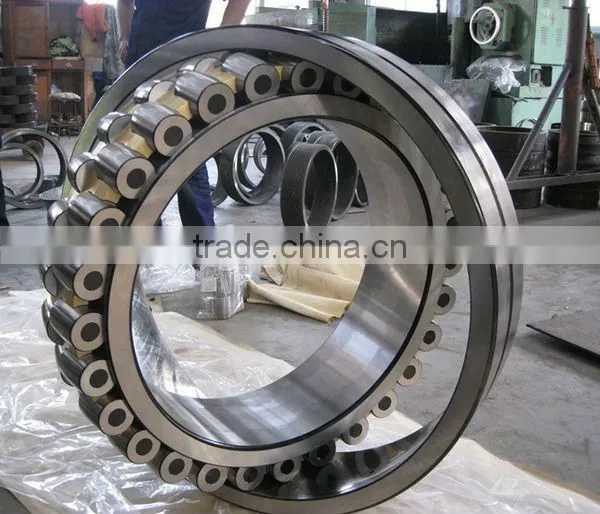

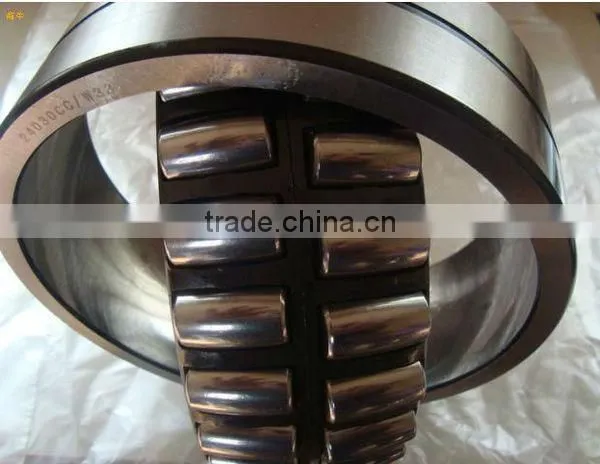

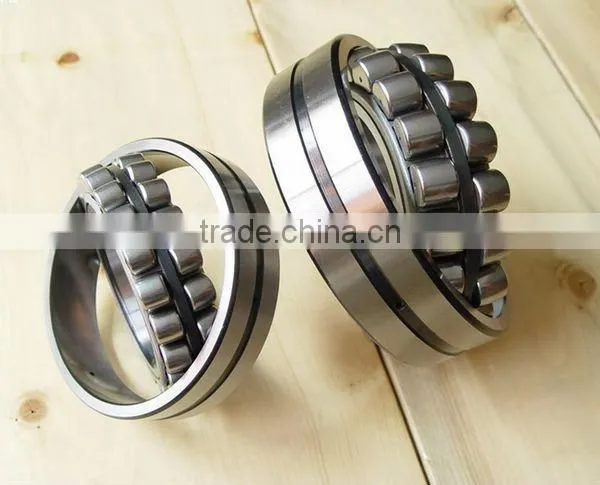

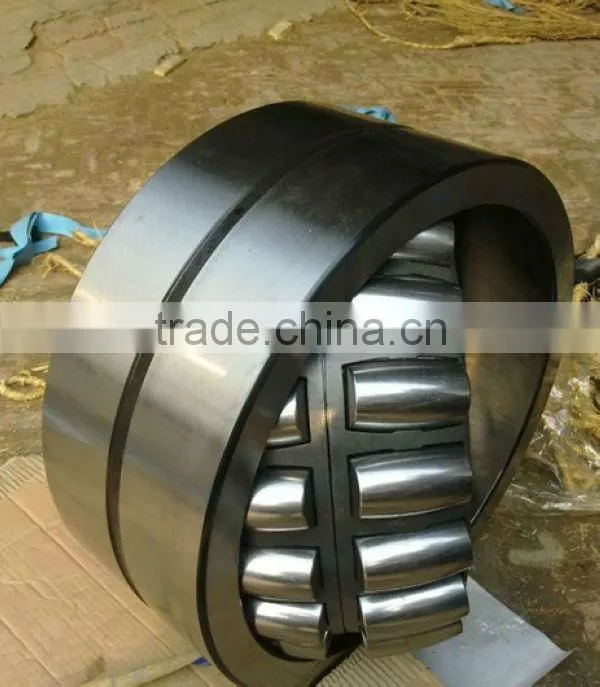

 china yiwu city bearing spherical roller bearing 22222 W33china yiwu city bearing spherical roller bearing 22222 W33china yiwu city bearing spherical roller bearing 22222 W33china yiwu city bearing spherical roller bearing 22222 W33

company information

china yiwu city bearing spherical roller bearing 22222 W33china yiwu city bearing spherical roller bearing 22222 W33

My company equipment is advanced, leading the management level, the warehouse clean and orderly, mount guard after qualified staff skill training, greatly improve the quality of our products and reduce the production cost, follow up competitiveness in the bearing industry.Our company pays attention to technology innovation the technological innovation enables enterprises to form core competitiveness, and to keep a competitive strength.

1: Germany equipment,
2: dust-free workshop,
3: smokeless workshop,
4:5 s management system,
5: ERP warehouse outbound,

Welcome to visit our factory, and promote the communication and learning, and go further in the bearing industry .

china yiwu city bearing spherical roller bearing 22222 W33

Our company quality first gained international certification

International certification:
1: ISO9001:2000,
2: BV,
3: CC,

Inland certification:
1: Shandong star enterprise ,
2: Domestic well-known brand,
3: Five years gold supplier in Alibaba,
4: The key enterprises of "Jinan 11th Five-Year Plan"

china yiwu city bearing spherical roller bearing 22222 W33

package & shipping

china yiwu city bearing spherical roller bearing 22222 W33

Packaging
A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your requirement

china yiwu city bearing spherical roller bearing 22222 W33

FAQ

china yiwu city bearing spherical roller bearing 22222 W33
