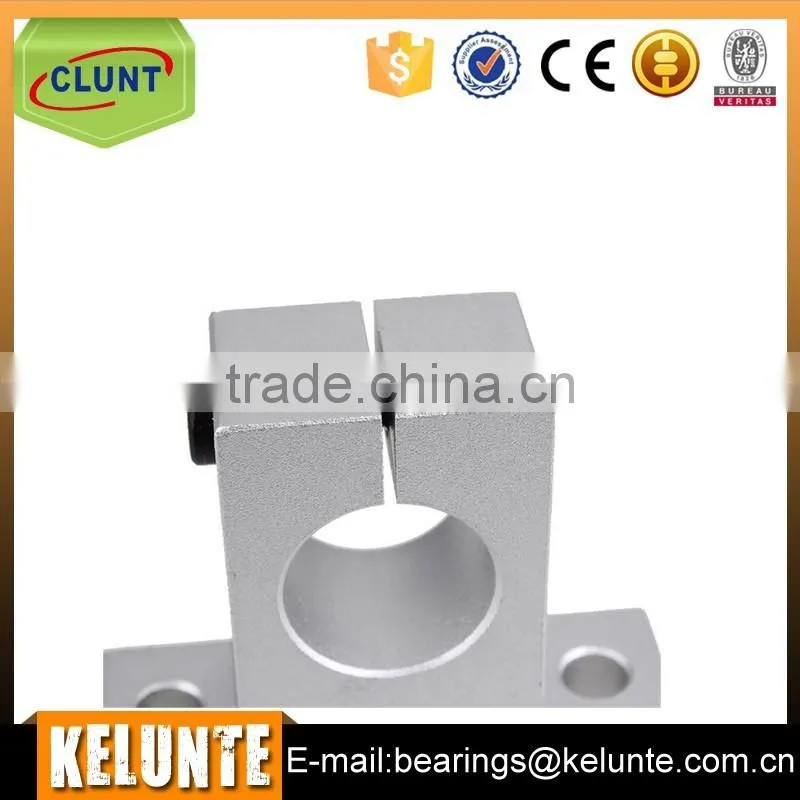

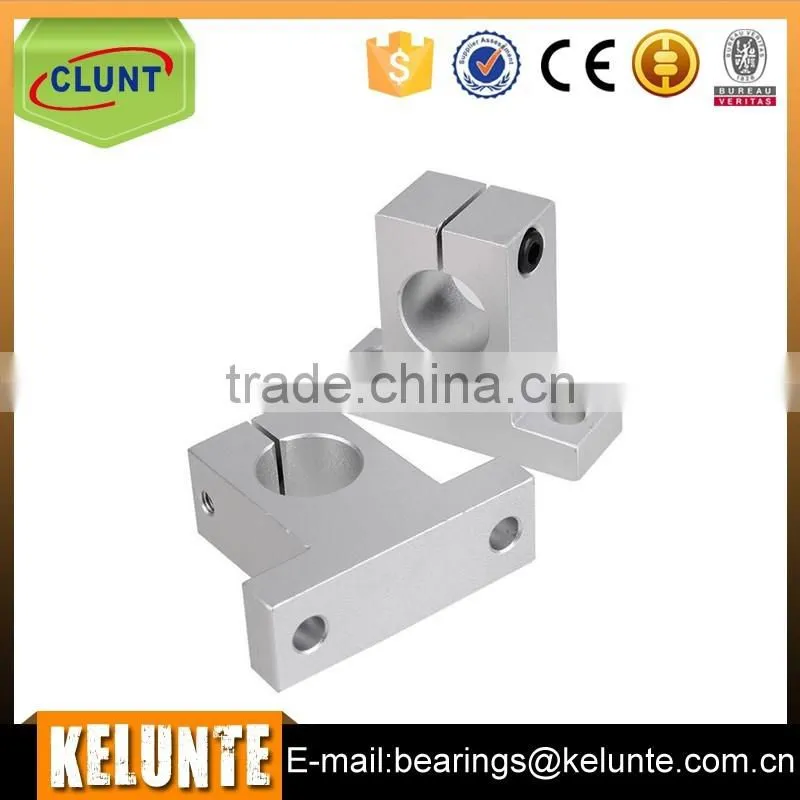

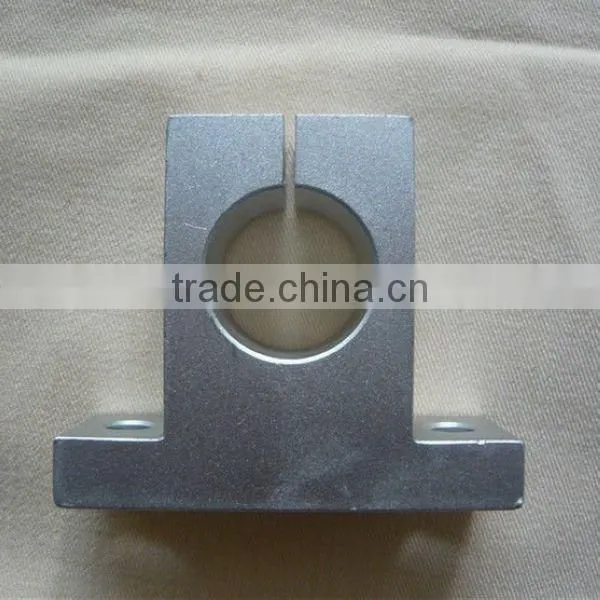

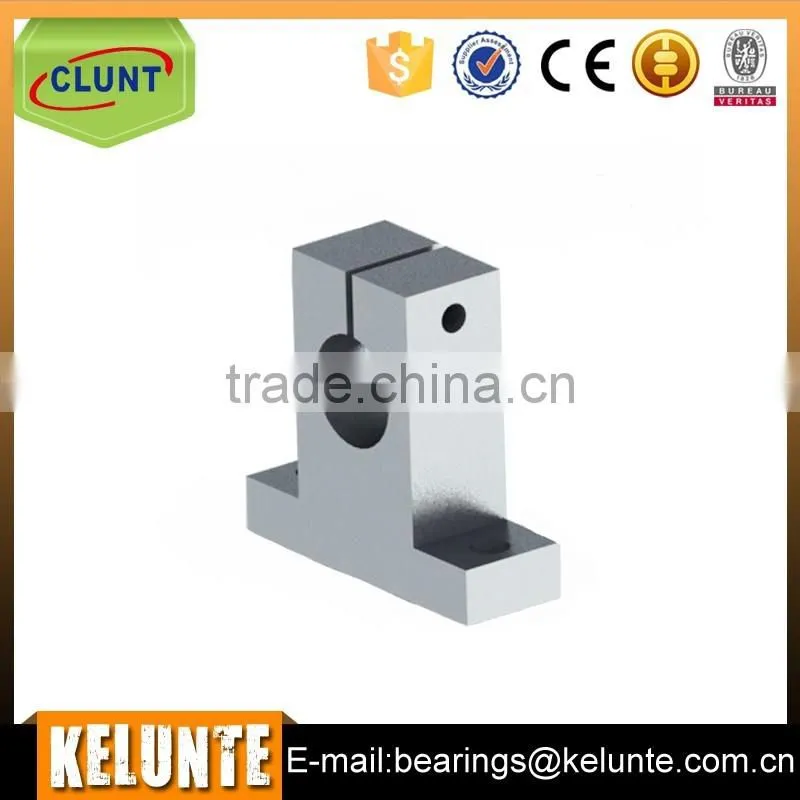

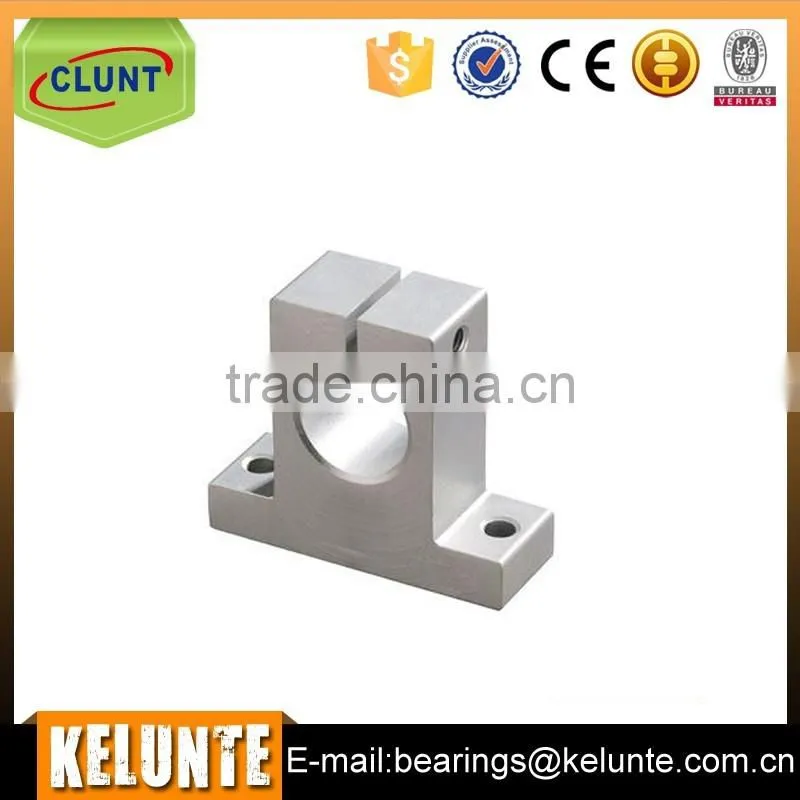

Help CenterSK Series Linear Motion Guide Rail Shaft Support Bearing SK5
Related Products
-
Shaft Linear Guide Support SK6US$ 0.9 - 0.9MOQ: 10 Sets -
SK8 Aluminum Linear Guide Rail Linear Shaft Suport Bearing HousingUS$ 0.9 - 0.9MOQ: 10 Sets
-
Linear Rail Shaft Support SK10US$ 0.9 - 0.9MOQ: 10 Sets
-
Linear Rail Shaft Support SK12US$ 0.9 - 0.9MOQ: 10 Sets
-
SK Series Linear Motion Guide Rail Shaft Support Bearing SK13US$ 0.9 - 0.9MOQ: 10 Sets
linear rail bearing support
Shaft support blocks are used for end or intermittent support where loads are light and slight shaft deflection is not a concern. Unlike shaft support rails, blocks do not permit longitudinal passage of open-type ball bushing bearings. Shaft support blocks enable clamping of shafts, type SB and eliminate the need for bolts to maintain shaft position. Shimming is suggested for high precision applications to eliminate the effect of variations in surface of base or manufacturing tolerances between supports. | ||
|---|---|---|
| Support Block Style | Imperial Type (in) | Metric Type (mm) |
| Sizes | .25" - 2" | 8mm - 40mm |
| Support Types |
Standard Low Profile Flanged |
Standard Low Profile |
| Support Materials |
Aluminum Malleable Iron |
Aluminum Malleable Iron |
| Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. With rotation of ball with a quite slight friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine,numeralization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on. | ||
Brif introductions of shaft supporting housing
Model numbers shaft support housing
| Shaft support unit-SK | ||||
| Model | Shaft | Clamping | Mounting | Mass |
| no. | Dia(mm) | bolt | bolt | (g) |
| SK3 | 3 | M4 | M5 | 24 |
| SK4 | 4 | M4 | M5 | 24 |
| SK5 | 5 | M4 | M5 | 24 |
| SK6 | 6 | M4 | M5 | 24 |
| SK8 | 8 | M4 | M5 | 24 |
| SK10 | 10 | M4 | M5 | 24 |
| SK12 | 12 | M4 | M5 | 30 |
| SK13 | 13 | M4 | M5 | 30 |
| SK16 | 16 | M5 | M6 | 40 |
| SK20 | 20 | M6 | M6 | 70 |
| SK25 | 25 | M6 | M8 | 130 |
| SK30 | 30 | M8 | M10 | 180 |
| SK35 | 35 | M8 | M10 | 270 |
| SK40 | 40 | M10 | M10 | 420 |
| SK50 | 50 | M12 | M12 | 750 |
| SK60 | 60 | M12 | M12 | 1100 |
Model numbers shaft support housing
My company equipment is advanced, leading the management level, the warehouse clean and orderly, mount guard after qualified staff skill training, greatly improve the quality of our products and reduce the production cost, follow up competitiveness in the bearing industry.Our company pays attention to technology innovation the technological innovation enables enterprises to form core competitiveness, and to keep a competitive strength.
1: Germany equipment,
2: dust-free workshop,
3: smokeless workshop,
4:5 s management system,
5: ERP warehouse outbound,
Welcome to visit our factory, and promote the communication and learning, and go further in the bearing industry .
Our company quality first gained international certification
International certification:
1: ISO9001:2000,
2: BV,
3: CC,
Inland certification:
1: Shandong star enterprise ,
2: Domestic well-known brand,
3: Five years gold supplier in Alibaba,
4: The key enterprises of "Jinan 11th Five-Year Plan"
Packaging
A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your requirement
