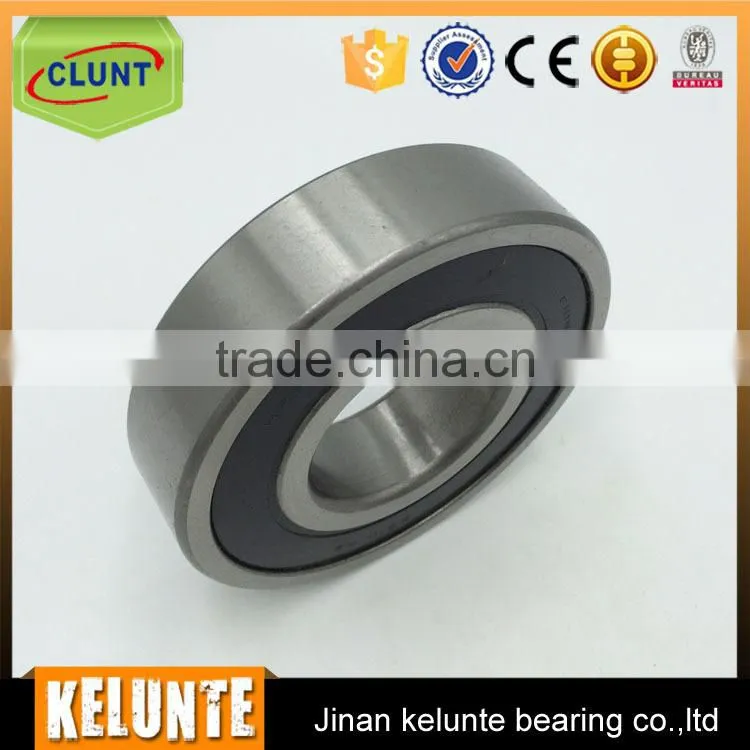

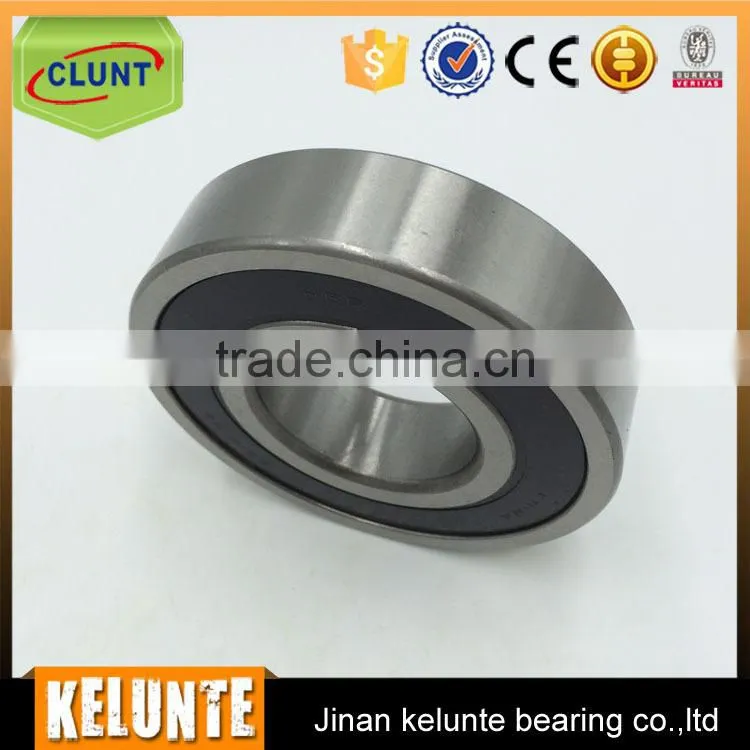

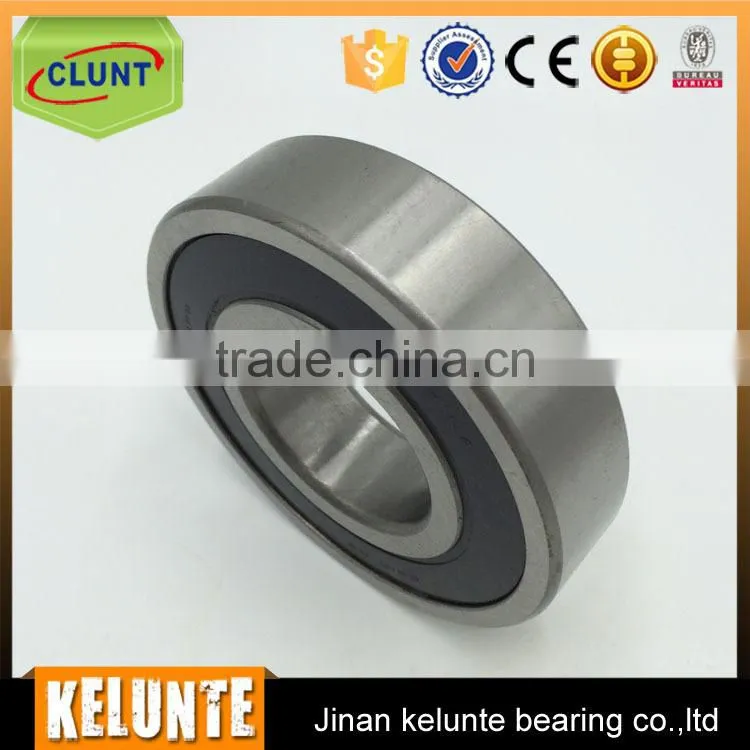

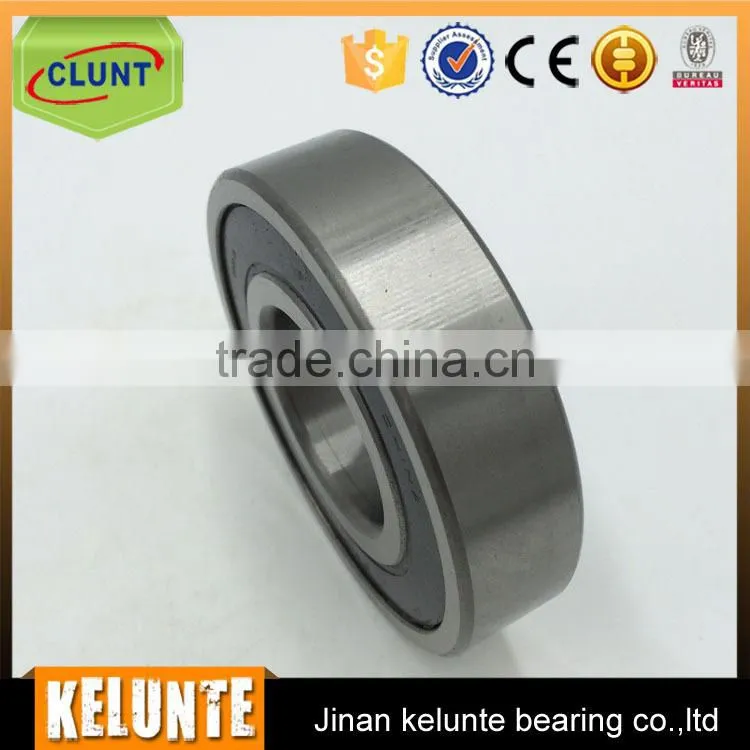

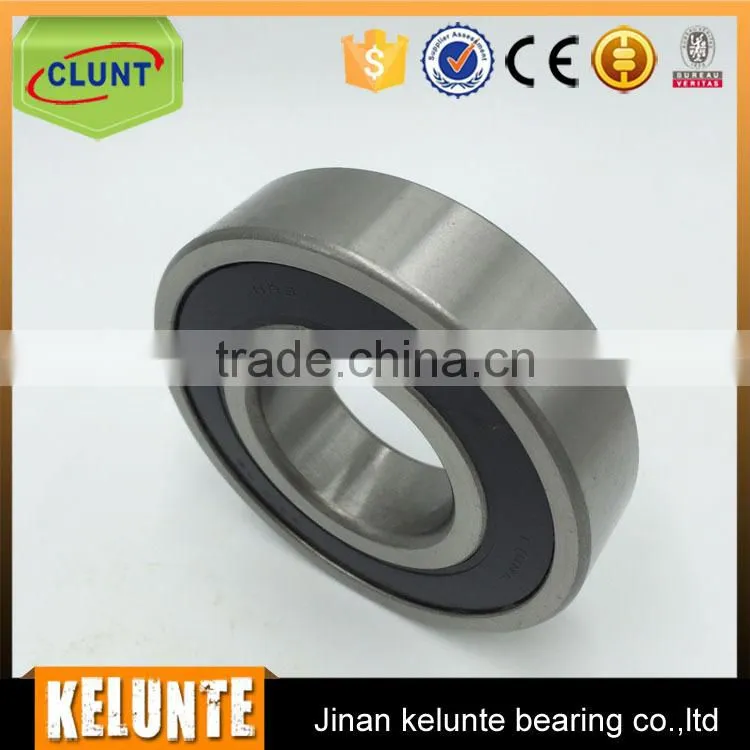

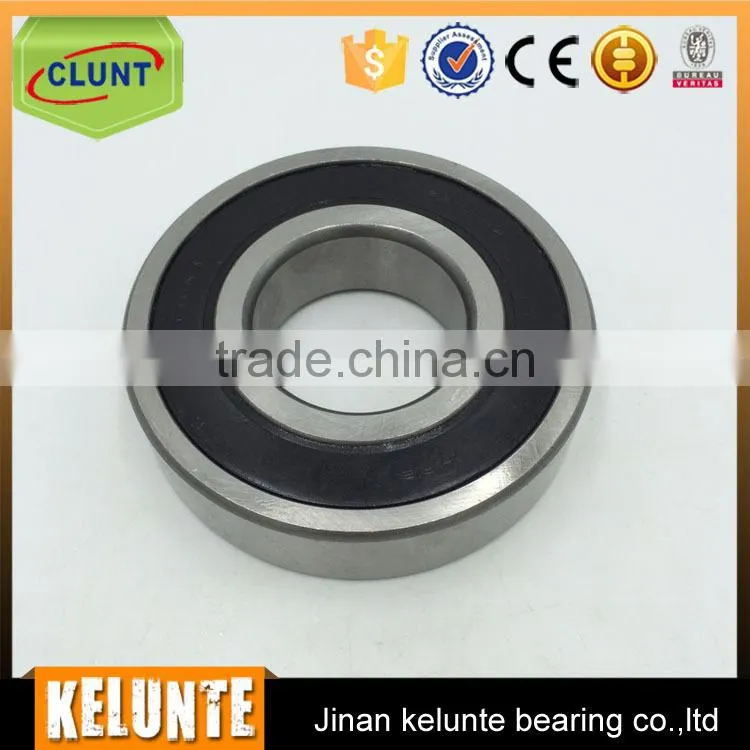

DC motor deep groove balll bearings 1640
Descriptions of dc motor ball bearing 1640
Deep groove ball bearings are the most common type of rolling bearings. Their use is very widespread. The raceway grooves on both the inner and outer rings have circular arcs of slightly larger radius than that of the balls. In addition to radial loads, axial loads can be imposed in either direction. Because of their low torque, they are highly suitable for applications where high speeds and low power loss are required.
In addition to open type bearings, these bearings often have steel shields or rubber seals installed
on one or both sides and are prelubricated with grease. Also, snap rings are sometimes used on the periphery. As to cages, pressed steel ones are the most common.
This bearing coms in both a sealed and a shielded version. Please select between the two below. Select 2RS for a sealed bearing or ZZ for a shielded bearing.
This bearing can be found with the following part numbers on it:
1640-2RS, 1640 2RS, 1640 RS, 1640RS, 1640-ZZ, 1640 ZZ, 1640ZZ, 1640 Z
The 1640-2RS and 1640-ZZ is a 7/8 ball bearing that is found in many applications. The 1640-2RS ball bearing has two contact rubber seals one on each side of the ball bearing. The 1640-ZZ ball bearing has two non-contact metal shields one on each side of the ball bearing. If your application requires a 1640 ball bearing with only one seal or shield you can get this ball bearing and take one of the shields or seals off. This 7/8 inch ball bearing is high quality and can take electric motor demands if needed. |
Specifications of dc motor ball bearing 1640
1.Bore Tolerance: +.0000"/-.0005"
2.Outer Diameter Tolerance: +.0000"/-.0006"
3.Width Tolerance - Outer: +.000"/-.005"
| Attributes | Values |
| Bearing Type | Open |
| Bore Dia (d) | 0.8750 |
| Outer Dia (D) | 2.0000 |
| Width (B) | 0.5625 |
| Dynamic Load Rating (Cr) | 2265 |
| Static Load Rating (Cor) | 1315 |
| Standard Clearance | C0 |
| Material | 52100 Chrome Steel |
| 1640-2RS Sealed Ball Bearing 7/8" x 2" x 9/16" inch |
|
1640-2RS Bearing is regular section, double sealed, radial and deep groove ball bearing,bearing is made of Chrome Steel with chrome steel balls and steel cage,1640-2RS bearing is closed with rubber seals to protect the bearing from dust or any possible contamination, bearing is sealed and self lubricated,the quality is set to EMQ (electric motor quality) to ensure high speed,1640-2RS bearing is lubricated with grease.
|
1 |
Material |
Chrome Steel Gcr15 , Carbon steel Gcr11 , Stainless steel |
2 |
Grease/Oil |
Good quality |
3 |
Cage |
Steel , Brass , Nylon |
4 |
Ball/Roller |
Steel |
5 |
Seal |
Open, Z, ZZ, RS, 2RS, 2RZ, Oil seal |
6 |
Package |
1.Industry package: Plastic paper+Kraft paper,10pcs or 5pcs/roll 2.Plastic tube: 10pcs/tube or 5pcs/tube 3.Single box: plastic bag+single box, OEM supply 4.Single wooden box: plastic bag+single wooden box 5.Carton: Standard export carton(300X260X180MM) or as your need. 6.Pallet: Wooden or Iron pallet with plastic film against moisture. 7.Pallet size: 1200X900X750(mm), 0.81CBM 8.Package as your requirement |
7 |
Bearing precision |
P0(ABEC1) P6(ABEC3) P5(ABEC5) P4(ABEC7) |
8 |
Noise |
Z1V1 Z2V2 Z3V3 |
9 |
Quality |
We have complete process for the production and quality assurance to make sure our products can meet your requirement. 1.Assembly 2.Windage test 3.Cleaning 4.Rotary test 5.Greasing and gland 6.Noise inspection 7.Appearance inspection 8.Rust prevention 9.Product packaging |
10 |
Service |
OEM |
11 |
Application |
Home appliances, low noise and high speed electric motors, automotive components, pumps, machinery. |
12 |
Delivery |
Normally ready goods and stock within 7 days |
13 |
Payment Terms |
30% T/T In Advance, 70% T/T Against Copy Of B/L or 100% LC at sight |
15 |
Contact |
13658640794 |
THE MAIN TYPE OF THE BEARINGS
604 series |
605 606 607 608 609 |
623 series |
623 624 625 626 627 628 629 |
634 series |
634 635 638 |
|
61800 series |
61800 61801 61802 61803 61804 61805 61806 61807 61808 61809 61820 61821 61822 61824 61826 61828 61834 61838 61840 61852 61860 61864 61872 61876 61880 61888 61892 |
|
61900 series |
61900 61901 61902 61903 61904 61905 61906 61907 61908 61909 61910 61911 61912 61913 61914 61915 61916 61917 61918 61919 61920 61921 61922 61924 61926 61928 61934 61936 61938 61940 61944 61948 61952 61960 61964 61968 61980 61984 61988 61992 |
|
16001 series |
16002 16003 16004 16005 16006 16007 16008 16009 16010 16011 16012 16013 16014 16015 16016 16017 16018 16019 16020 16021 16022 16024 16026 16028 16030 16032 16034 16038 16040 16052 |
|
6000 series |
6000 6001 6002 6003 6004 6005 6006 6007 6008 6009 6010 6011 6012 6013 6014 6015 6016 6017 6018 6019 6020 6021 6022 6024 6026 6028 6030 6032 6034 6036 6038 6040 6044 6048 6052 6056 6060 6064 6068 6072 6080 6088 6092 |
|
6200 series |
6200 6201 6202 6203 6204 6205 6206 6207 6208 6209 6210 6211 6212 6213 6214 6215 6216 6217 6218 6219 6220 6221 6222 6224 6226 6228 6230 6232 6234 6236 6238 6240 6244 6248 6252 |
|
6300 series |
6300 6301 6302 6303 6304 6305 66306 6307 6308 6309 6310 6311 6312 6313 6314 6315 6316 6317 6318 6319 6320 6321 6322 6324 6326 6328 63306332 6334 |
|
6403 series |
6403 6404 6405 6406 6407 6408 6409 6410 6411 6412 6413 6414 6415 6416 6417 6418 6419 6420 6422 6426 |
