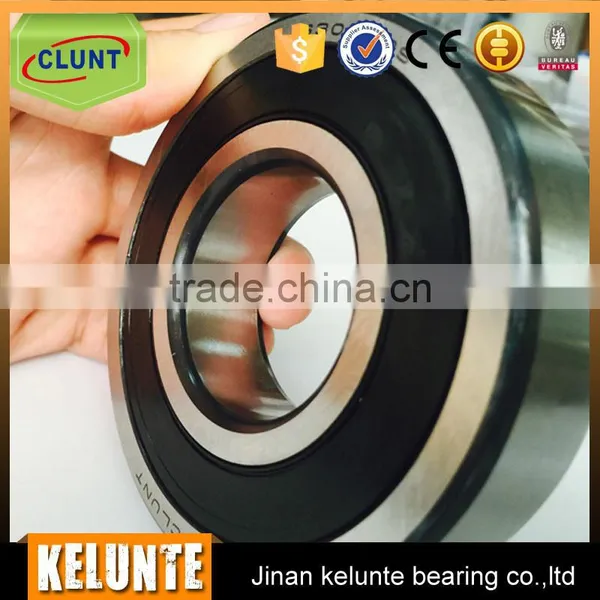

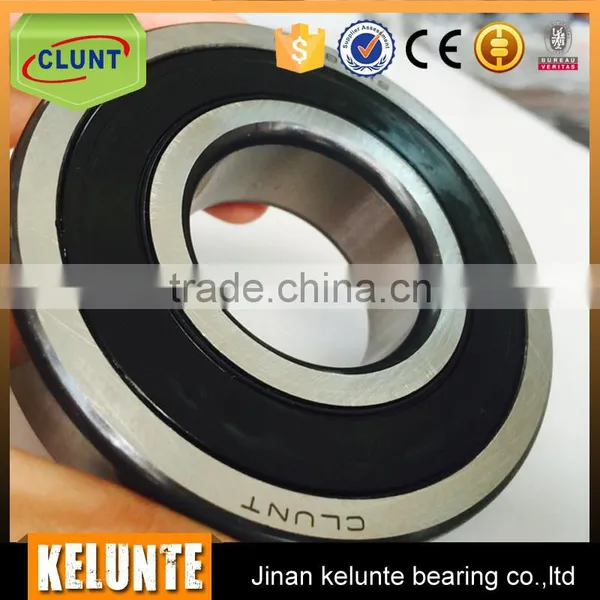

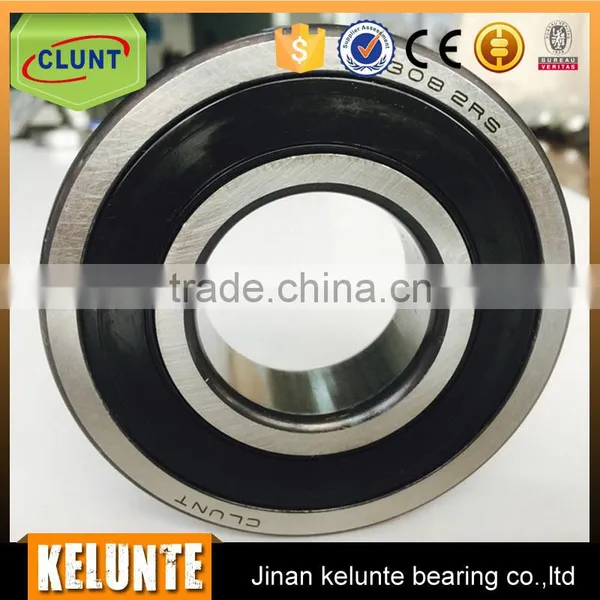

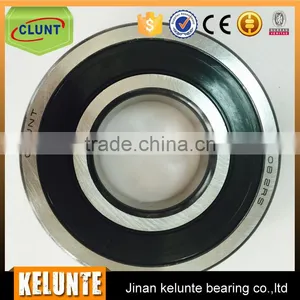

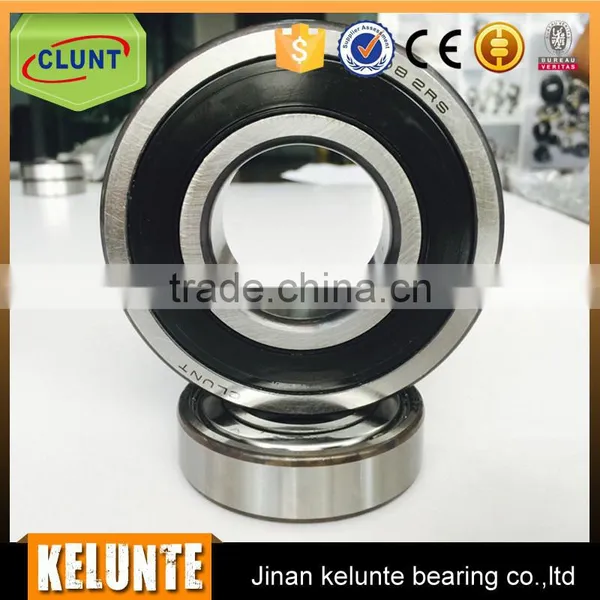

Original in sweden deep groove ball bearing GCR15 6309-2RS
6309 C3 deep groove ball bearing 45X100X25mm Specifications:
Type: deep groove ball bearing
Lubrication: Oil or Grease
Dimensions:45X100X25mm
ID (inner diameter)/Bore: 45mm
OD (outer diameter):100mm
Width/Height/thickness:25mm
Dynamic load rating Cr: 53KN
Static load rating Cor: 32KN
Material:Chrome steel,Carbon steel, Stainless steel
Lmiting Speed:
Grease Lubrication: 7000R/M
Oil Lubrication:8000R/M
Weught:0.837kg
Material:Bearing steel/carbob steel/chrome steel/stainless steel
sweden ball bearing feature
Deep groove ball bearing is suitable for high speed running, and very durable, need not often maintenance. These bearing small friction coefficient, high limit speed, size range and diverse in form, used in precision instruments, low noise motors, automobiles, motorcycles and general machinery and other industries, is the most widely used type of bearings in machinery industry. Mainly bear radial load, also can withstand a certain amount of axial load.
Deep groove ball bearing has simple structure, easy to use, is the production batch, the biggest range is the most widely used type of bearings. Widely used in automobiles, household appliances, machine tools, motors, pumps, agricultural machinery, textile machinery, and many other fields. Its output accounted for over 70% of the total production of the bearing, it is the highest yield in China, the most commonly used and the price is the cheapest kind of bearings.
sweden ball bearing Application
Material handling machinery, grinding machinery agricultural machinery, mining machinery, textile machinery, fluid machinery, bionic machinery casting equipment, power equipment, lifting equipment, refrigeration equipment, separation equipment and
molding and packaging equipment.
6300 Series Deep Groove Ball Bearing - 6309ZZ
| 6300 SERIES BALL BEARINGS | MEDIUM | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NPB Part No. RFQ per item |
Bore | Outside Diameter | Width | Max. Fillet Radius |
Balls | Static Load Lbs. |
Dynamic Load Lbs. |
|||||
| Frac. | Inch | Tol. | Frac. | Inch | +.0000 -.0050 |
No. | Diam. | |||||
| Open | Seal/Shield | |||||||||||
| 6300 | 10 | .3937 | -.0003 | 35 | 1.3780 | 11 | .4331 | .025 | 6 | 9/32 | 845 | 1430 |
| 6301 | 12 | .4724 | -.0003 | 37 | 1.4567 | 12 | .4724 | .040 | 6 | 5/16 | 1045 | 1655 |
| 6302 | 15 | .5906 | -.0003 | 42 | 1.6535 | 13 | .5118 | .040 | 7 | 5/16 | 1215 | 1975 |
| 6303 | 17 | .6693 | -.0003 | 47 | 1.8504 | 14 | .5512 | .040 | 7 | 11/32 | 1470 | 2335 |
| 6304 | 20 | .7874 | -.0004 | 52 | 2.0472 | 15 | .5906 | .040 | 7 | 3/8 | 1750 | 2730 |
| 6305 | 25 | .9843 | -.0004 | 62 | 2.4409 | 17 | .6693 | .040 | 7 | 7/16 | 2385 | 3690 |
| 6306 | 30 | 1.1811 | -.0004 | 72 | 2.8346 | 19 | .7480 | .040 | 8 | 15/32 | 3130 | 4605 |
| 6307 | 35 | 1.3780 | -.0005 | 80 | 3.1496 | 21 | .8268 | .060 | 8 | 17/32 | 4020 | 5775 |
| 6308 | 40 | 1.5748 | -.0005 | 90 | 3.5433 | 23 | .9055 | .060 | 8 | 19/32 | 5020 | 7060 |
| 6309 | 45 | 1.7717 | -.0005 | 100 | 3.9370 | 25 | .9843 | .060 | 8 | 11/16 | 7000 | 9120 |
| 6310 | 50 | 1.9685 | -.0005 | 110 | 4.3307 | 27 | 1.0630 | .080 | 8 | 3/4 | 8010 | 10750 |
| 6311 | 55 | 2.1654 | -.0006 | 120 | 4.7244 | 29 | 1.1417 | .080 | 8 | 13/16 | 9400 | 12410 |
| 6312 | 60 | 2.3622 | -.0006 | 130 | 5.1181 | 31 | 1.2205 | .080 | 8 | 7/8 | 10900 | 14180 |
| 6313 | 65 | 2.5591 | -.0006 | 140 | 5.5118 | 33 | 1.2292 | .080 | 8 | 15/16 | 12515 | 16050 |
| 6314 | 70 | 2.7559 | -.0006 | 150 | 5.9055 | 35 | 1.3780 | .080 | 8 | 1 | 14240 | 18025 |
