japanese koyo brand Gas turbine bearings 7004C

Specifications

Gas turbine bearings 7004C
1.High quality
2.ISO9001:2000
3.Quick delivery.
4.long service life

japanese koyo brand Gas turbine bearings 7004C





1.Gas turbine bearings 7004C



gas turbine, also called a combustion turbine, is a type of internal combustion engine. It has an upstream rotating compressor coupled to a downstream turbine, and a combustion chamber in-between.

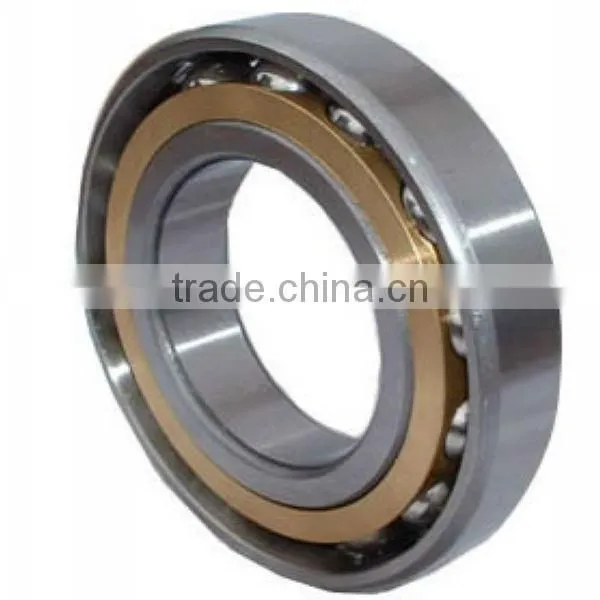

Item:	7004 C
Type:	Angular Contact Ball Bearings
Basic load ratings Cr	9.2 kN
Basic load ratings Cor	6.0 kN
grease:	36000 r/min
oil-air	51000 r/min
ID (inner diameter)/Bore:	20 mm
OD (outer diameter):	42 mm
Width/Height/thickness:	12 mm
Quantity:	10 bearing

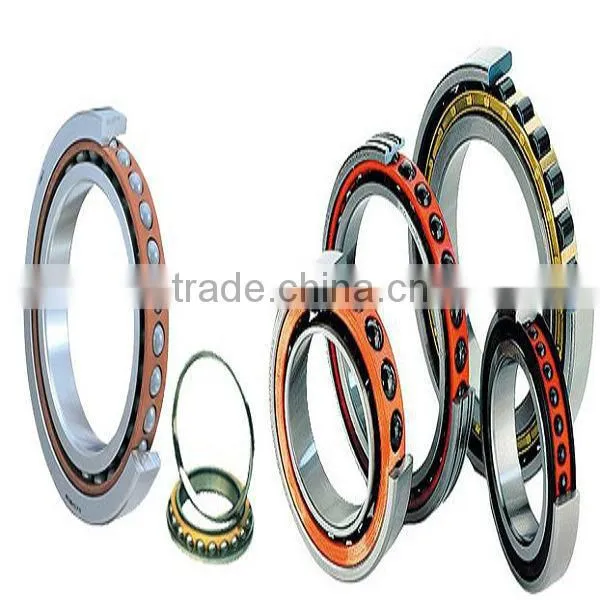

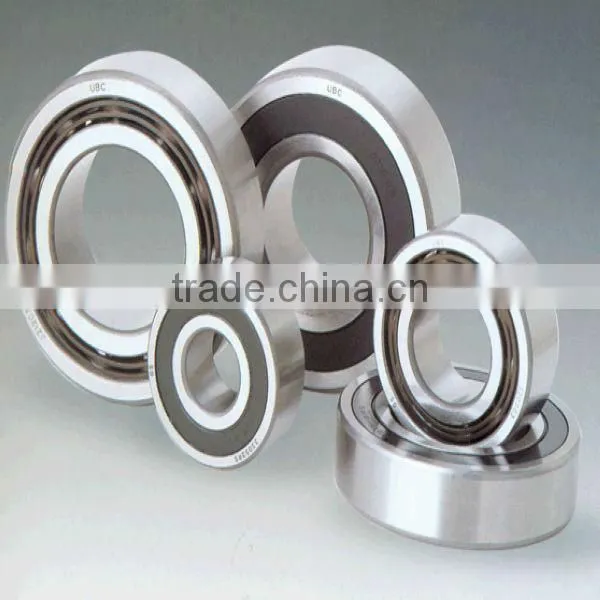

Angular Contact Ball Bearing Series

Many angular contact bearing manufacturers have three or more dimensional series to accommodate higher speeds or higher loads than “standard.” In particular, the most common series names are:

• ISO 18 Series - highest speed, lowest load bearings
• ISO 19 Series - second highest speed, with the second lowest load bearings
• ISO 10 Series - highest load, second lowest speed bearings
• ISO 02 Series - highest load, lowest speed bearings

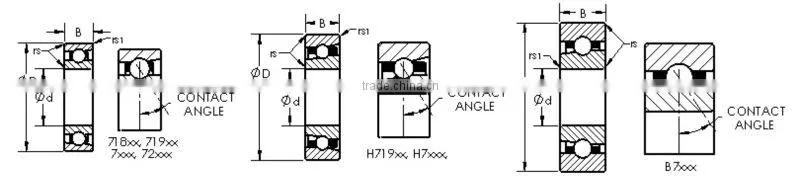

ISO Equivalents To Waltz Series Designations

Many times, manufacturers have further separated the ISO dimensional classes by adding a higher speed variant with the same dimensions. The following table summarizes Waltz product offerings:

ISO Series	Waltz Designation
ISO 18	718 Series Angular Contact Bearings
ISO 19	719 Series Angular Contact Bearings
ISO 19 (high speed)	H719 Series Angular Contact Bearings
ISO 10	70 Series Angular Contact Bearings
ISO 10 (high speed)	H70 Series Angular Contact Bearings
ISO 10 (high load)	B70 Series Angular Contact Bearings
ISO 02	72 Series Angular Contact Bearings



Bearing no.	d	D	B	rmin	r1min
7000C	10	26	8	0.3	0.15
7001C	12	28	8	0.3	0.15
7002C	15	32	9	0.3	0.15
7003C	17	35	10	0.3	0.15
7004C	20	42	12	0.6	0.15
7005C	25	47	12	0.6	0.15
7006C	30	55	13	1	0.3
7007C	35	62	14	1	0.3
7008C	40	68	15	1	0.3
7009C	45	75	16	1	0.3
7010C	50	80	16	1	0.3
7011C	55	90	18	1.1	0.6
7012C	60	95	18	1.1	0.6
7013C	65	100	18	1.1	0.6
7014C	70	110	20	1.1	0.6
7015C	75	115	20	1.1	0.6
7016C	80	125	22	1.1	0.6
7017C	85	130	22	1.1	0.6
7018C	90	140	24	1.5	0.6
7019C	95	145	24	1.5	0.6
7020C	100	150	24	1.5	0.6
7200C	10	30	9	0.6	0.15
7201C	12	32	10	0.6	0.15
7202C	15	35	11	0.6	0.15
7203C	17	40	12	0.6	0.3
7204C	20	47	14	1	0.3
