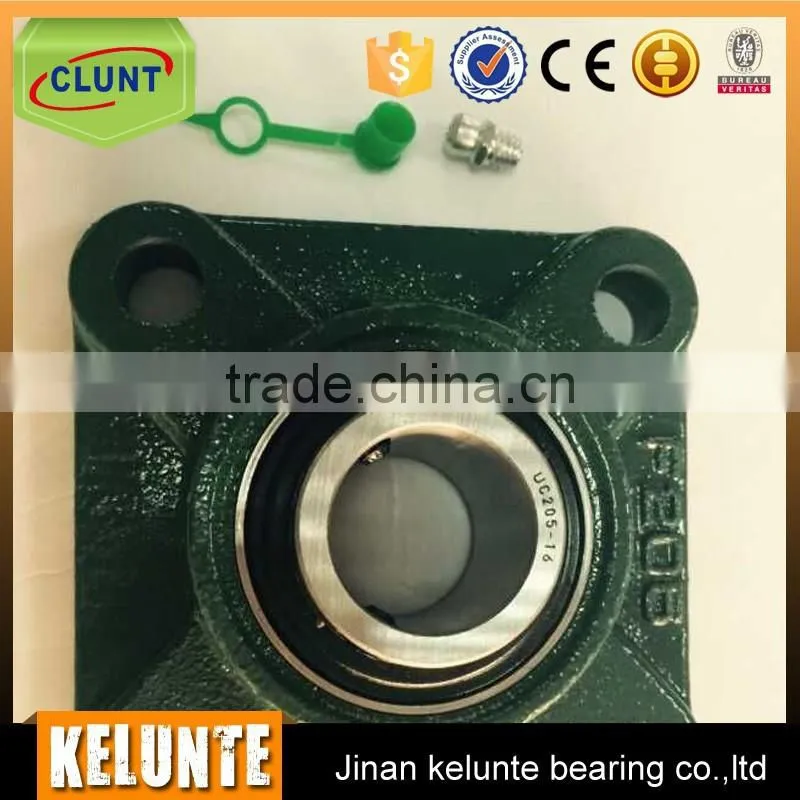

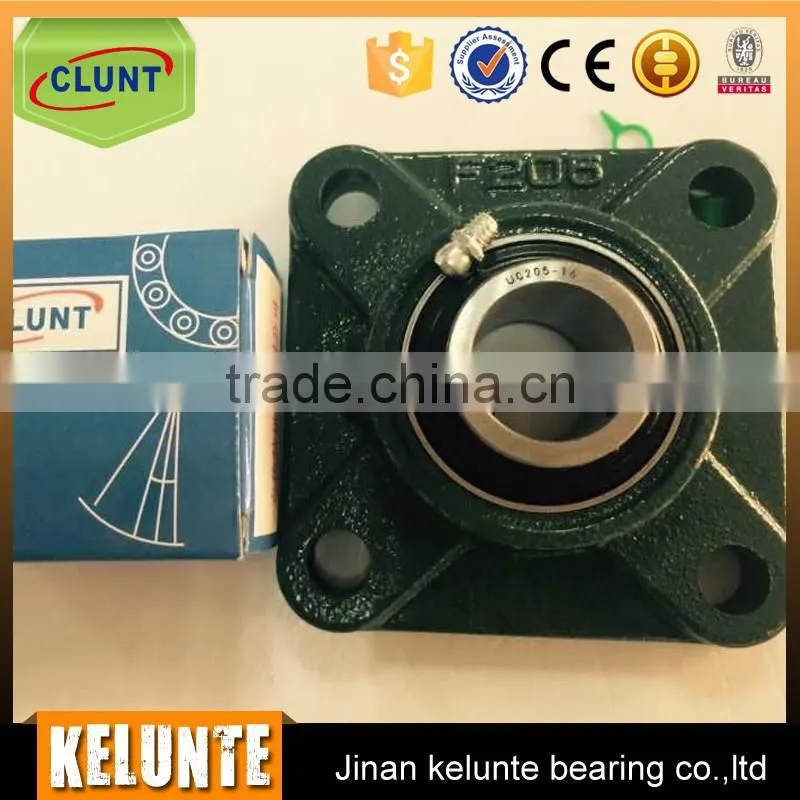

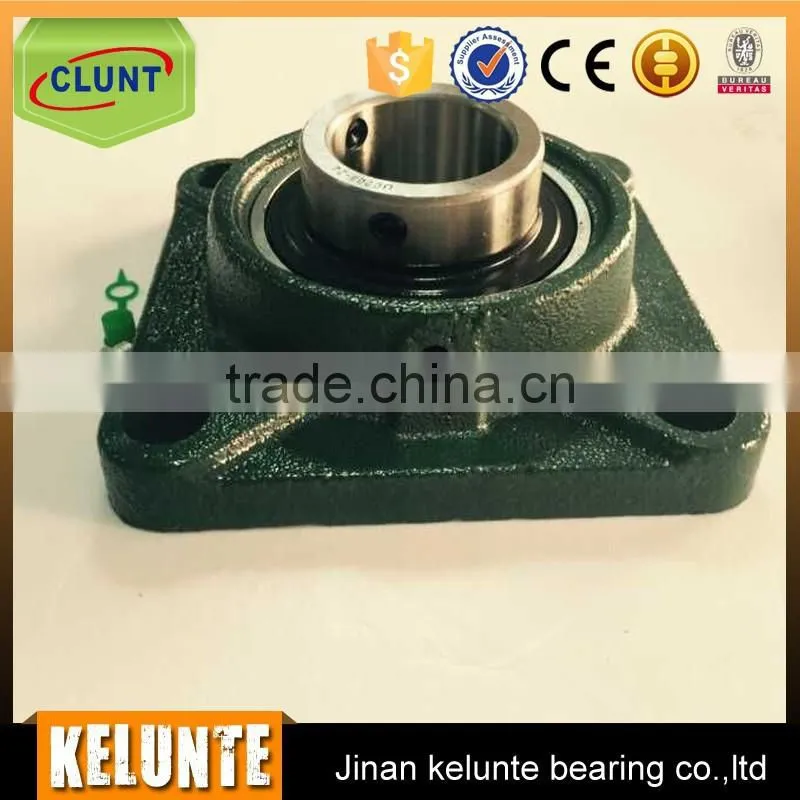

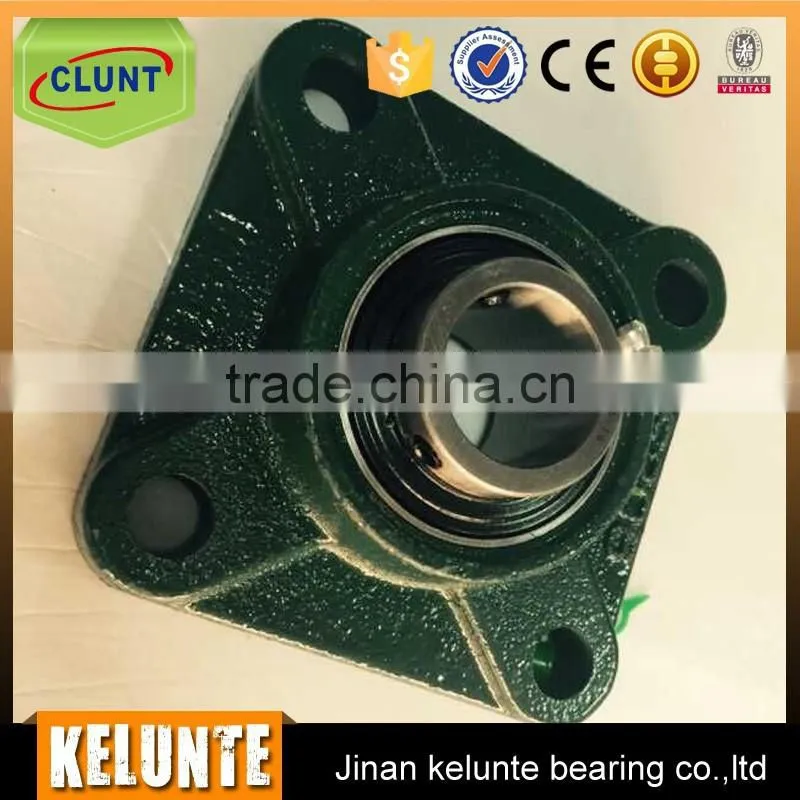

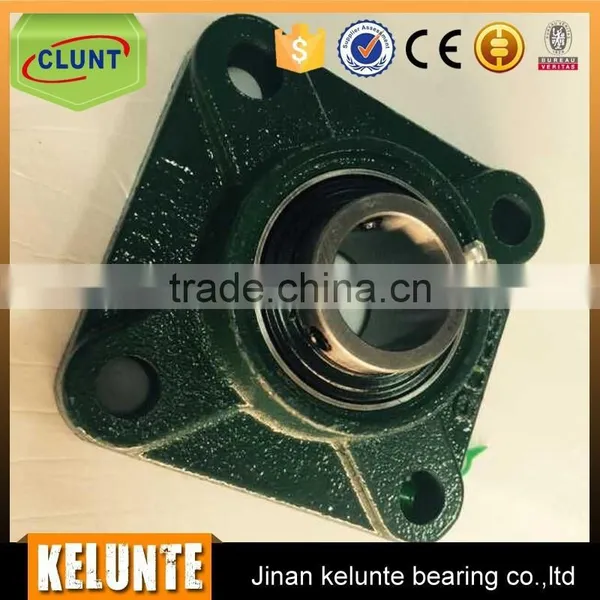

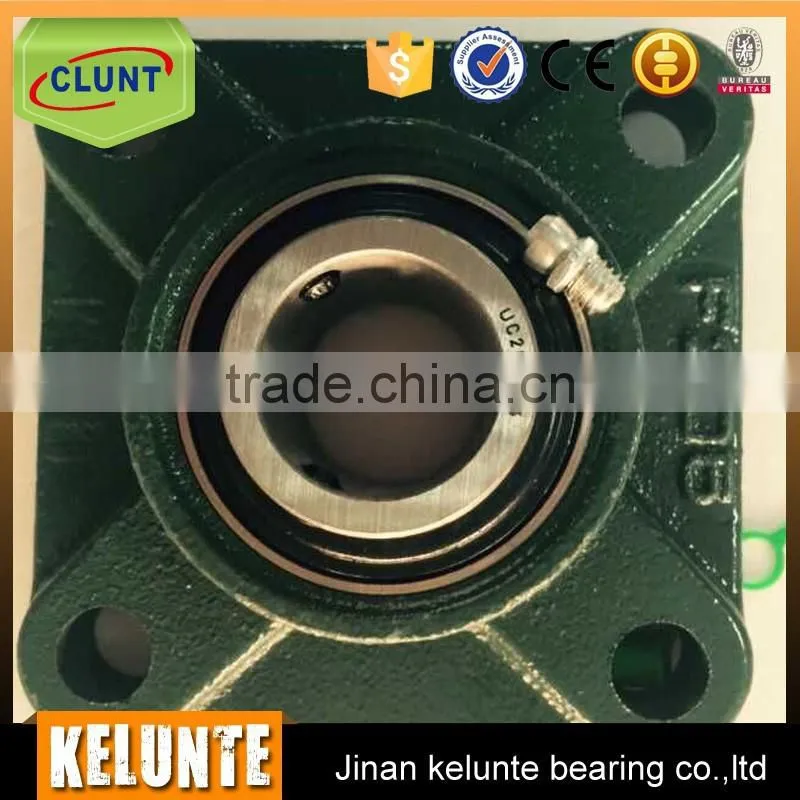

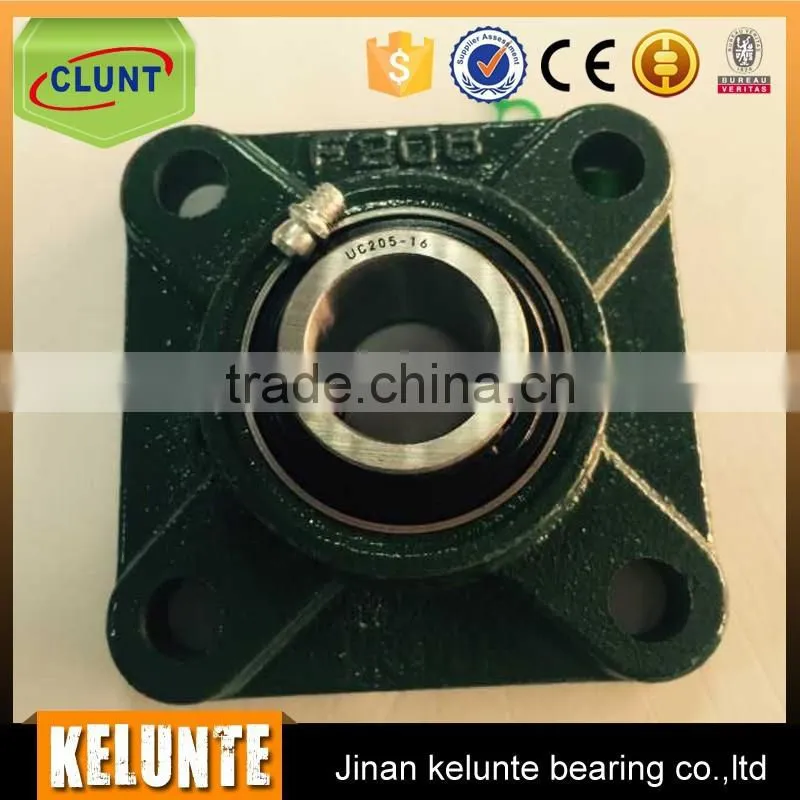

KOYO water resistant flange bearing UCP209
Detailed informations of bearing UCP209
1.Also available with eccentric locking collar.
2.Medium Duty, Heavy Duty and other available types are described in the Bearing Types information.
3.Various seal options and plated housing options are described in the Nomenclature and Bearing Types information.
| Attributes | Values |
| Bearing Type | Extended inner race with set screws |
| Dynamic Load Rating (Cr) | 34120 |
| Static Load Rating (Cor) | 21277 |
| Shaft Dia. (Fw) | 45.0000 |
| Shaft Height (h) | 54.0000 |
| Housing Width (b) | 54.0000 |
| Mounting Hole Center-to-Center (e) | 146.0000 |
| Housing Length (a) | 190.0000 |
| Mounting Slot Length (S2) | 21.0000 |
| Mounting Slot Width (S1) | 17.0000 |
| Housing Base Thickness (g) | 17.0000 |
| Housing Height (w) | 106.0000 |
| Bearing Inner Race Width (Bi) | 49.2000 |
| Bearing Inner Race Width - Short Side (n) | 19.0000 |
| Bearing Inner Race Width - Extended Side (m) | 30.2000 |
| Mounting Bolt Size | 14.0000 |
| Bearing Number | UCP 209 |
| Housing Number | P 209 |
| Shaft Dia., Nominal (d) | 45.0000 |
| Weight (g) | 2313.00 |
| Material | Cast iron housing, chrome steel bearing |
Descriptions of bearing UCP209
Pillow block bearings are one of the most popular bearings both at home and abroad. Of them, KOYO pillow block bearings are well-known all over the world. Pillow block bearings are widely used in various kinds of industries and machines such as car wash equipment, construction machinery, fans, HVAC, food processing, metal working machinery, textile machinery, paper making & paper converting equipment & woodworking machinery.
Pillow block bearings are mounted type bearings available in flanged & upright styles in different inch & metric sizes. Pillow block bearings are designed to support shafts. Features include mounting surfaces parallel to shaft axes & elongated bolt holes in bases or feet of units for adjustment & mounting of pillow block bearing. Pillow block bearings are available in bore sizes ranging from 1/2 in. to 10 in.

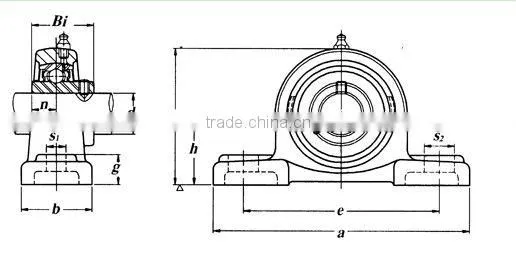

Drawings of UCP209
Model numbers of pillow block bearings
| MODEL | SIZE(mm) | |||||
| d | B | S | ||||
| UCP 203 | 17 | 7.4 | 11.5 | SY 17 TF | ||
| UCP 204 | 20 | 31 | 12.7 | UCP 204 | P56204 | SY 20 TF |
| UCP 205 | 25 | 34.1 | 14.3 | UCP 205 | P56205 | SY 25 TF |
| UCP 206 | 30 | 38.1 | 15.9 | UCP 206 | P56206 | SY 30 TF |
| UCP 207 | 35 | 42.9 | 17.5 | UCP 207 | P56207 | SY 35 TF |
| UCP 208 | 40 | 49.2 | 19 | UCP 208 | P56208 | SY 40 TF |
| UCP 209 | 45 | 49.2 | 19 | UCP 209 | P56209 | SY 45 TF |
| UCP 210 | 50 | 51.6 | 19 | UCP 210 | P56210 | SY 50 TF |
| UCP 211 | 55 | 55.6 | 22.2 | UCP 211 | P56211 | SY 55 TF |
| UCP 212 | 60 | 65.1 | 25.4 | UCP 212 | P56212 | SY 60 TF |
| UCP 213 | 65 | 65.1 | 25.4 | UCP 213 | SY 65 TF | |
| UCP 214 | 70 | 74.6 | 30.2 | UCP 214 | SY 70 TF | |
| UCP 215 | 75 | 77.8 | 33.3 | UCP 215 | SY 75 TF | |
| UCP 216 | 80 | 82.6 | 33.3 | UCP 216 | SY 80 TF | |
| UCP 217 | 85 | 85.7 | 34.1 | UCP 217 | SY 85 TF | |
| UCP 218 | 90 | 96 | 39.7 | UCP 218 | SY 90 TF | |
| UCP 220 | 100 | 108 | 42 | SY 100TF | ||
