3216 Bearing Angular Contact Ball 3216ZZ Bearing 3056216

3216 Bearing Angular Contact Ball 3216ZZ Bearing 3056216 thumbnail-1
3216 Bearing Angular Contact Ball 3216ZZ Bearing 3056216 photo-1
US$ 19.3 - 19.3 MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Bore Size:
80,
Outside Diameter:
140,
Contact Supplier Request Quote Chat Now
Jinan Kelunte Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CLUNT
Bore Size 80,
Outside Diameter 140,
Model Number 3216
Precision Rating P0 P6 P5 P4 P2
Seals Type OPEN ZZ 2RS
Number of Row Double Row
Place of Origin Shandong, China

Specifications

3216ATN ball bearing 3216ATN Bearing
1.High quality
2.ISO9001:2000
3.Quick delivery.
4.long service life

angular contact ball bearing 3216 ATN 3216-2RSATN1



More Feature:
1) Model: Open, Z, ZZ, RZ,2RZ,RS, 2RS
2) Quality level: reach the same level as the Japanese and European bearings
3) Tolerance level: ABEC-1 (P0), ABEC-3 (P6),ABEC-5(P5)
4) Noise Level: EMQ V1 Z2, EMQ V2 Z3, EMQ V3 Z4, EMQ V4
5)Application: home appliances,low noise and high speed electric motors;



 Double Row Angular Contact Ball Bearing (5000 Series)



TSB
Bearing NO.

Boundary Dimension(mm)

Load Ratings(KN)

Refer Weight(kg)

Open

Shielded

Sealed

d

D

B

Dynamic

Cr

Static

Cr

Z

ZZ

RS

2RS

3216

3216-Z

3216-ZZ

3216-RS

3216-2RS

80

140

44.4

53.3

43.6

2.48





Production Introduction:


    Angular contact ball bearings are able to support radial load and axial load. As single row angular contact ball bearings can only support axial load in single direction, matched bearing mounting is often adopted to them as matched parts of bearings, preload for them is more convenient.
Retainers are made of brass, synthetic resins or others subject to individual bearing features and application conditions.

Angular contact ball bearing include:
1) Single row angular contact ball bearing
2) Matched angular contact ball bearing
3) Double row angular contact ball bearing
4) Four-point contact ball bearing

Angular contact ball bearings features :
1) Load capacities are higher than deep groove ball bearings of same dimensions;
2) Used for bearing radial-axial combined loads or pure thrust loads;
3) Low operating friction and high limiting speed.



Double-row Angular Contact Ball Bearing

Features:
1) Withstand both radial load and axial load, with high rotation speed

2) Using the good raw material to ensure perfect quality

3) Scientific producing process and  Rigorous technical testing

Bearing NO d D B KG
5200 10 30 14.3 0.049
5201 12 32 15.9 0.057
5202 15 35 15.9 0.064
5203 17 40 17.5 0.096
5204 20 47 20.6 0.153
5205 25 52 20.6 0.175
5206 30 62 23.8 0.286
5207 35 72 27.0 0.436

5208

 40 80 30.2 0.590
5209 45 85 30.2 0.640
5210 50 90 30.2 0.689
5211 55 100 33.3 0.986
5212 60 110 36.5 1.270
5213 65 120 38.1 1.570
5214 70 125 39.7 1.800
5215 75 130 41.3 1.900
5216 80 140 44.4 2.390
5217 85 150 49.2 3.060
5218 90 160 52.4 3.730
5302 15 42 19.0 0.132
5303 17 47 22.2 0.181
5304 20 52 22.2 0.127
5305 25 62 25.4 0.362
5306 30 72 30.2 0.553
5307 35 80 34.9 0.766

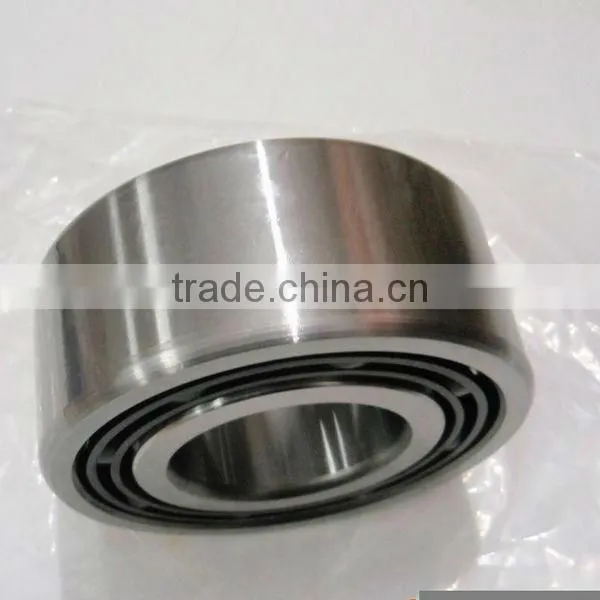

 3216 Bearing angular contact ball 3216ZZ bearing 3056216

3216 Bearing angular contact ball 3216ZZ bearing 3056216
