Specifications
Supergrip Brute L5 Skid Steer tyre1. 12-16.5 X89 14PR TL
2. Machine:Skid-steer/Backhoe Loader
3. Application:Severe Duty

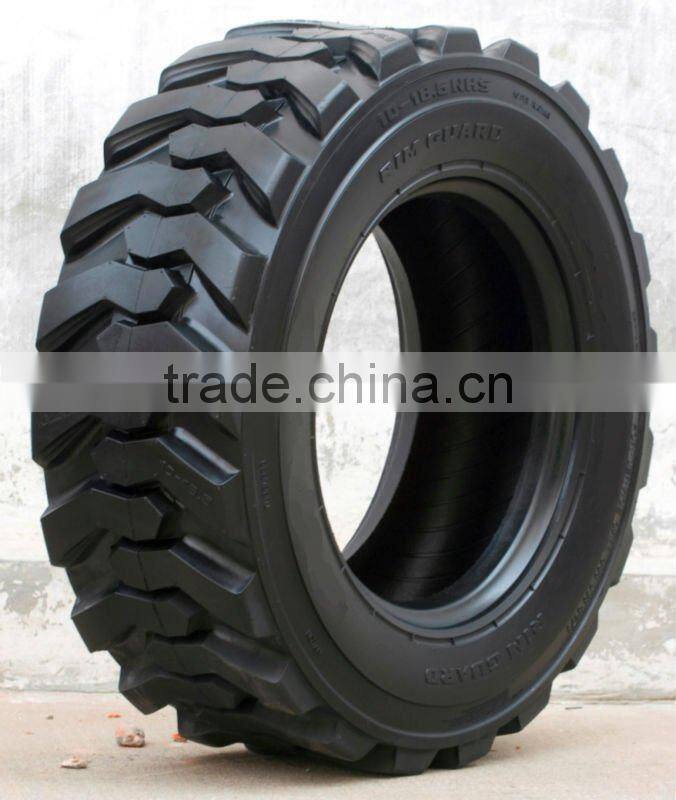

Supergrip Brute L5 Skid Steer tyre
Bobcat Tire
Extra-Deep L5 Non-Traction
Features:
* Extra deep tread, extra thick sidewalls provide exceptional durability and minimize the risk of punctures & accidental damages
* Specially designed Rim Guard ensures protection against flats & wheel damages in the rim flange area
* Rugged Lug Design has higher surface contact designed for improved performance, grip, braking and better stability with higher loads
* Exceptional treadwear for long life
* Improved productivity
Applications:
* Quarries
* Rock & Shale
* Gravel
* Scrap Yard
* Asphalt
* Stone
Specification:
| SIZE | P.R | PATTERN | TYPE | T.D. | Std Rim | Load | Inflation Pressure | Speed | S.W | O.D | |
| (mm) | (lbs) | (psi) | (mph) | (mm) | (mm) | ||||||
| 5.70-12 | 8 | x89 | TL | 20 | 4.50 | 1870 | 90 | 5 | 146 | 574 | |
| 5.90-15 | 8 | x89 | TL | 26 | 5.00 | 2100 | 90 | 5 | 152 | 686 | |
| 10-16.5 | 14 | x89 | TL | 42 | 8.25 | 6010 | 105 | 5 | 270 | 785 | |
| 12-16.5 | 14 | x89 | TL | 43 | 9.75 | 6780 | 90 | 5 | 315 | 861 | |
| 27×8.50-15 | 10 | x89 | TL | 33 | 7.00 | 3220 | 80 | 5 | 221 | 686 | |

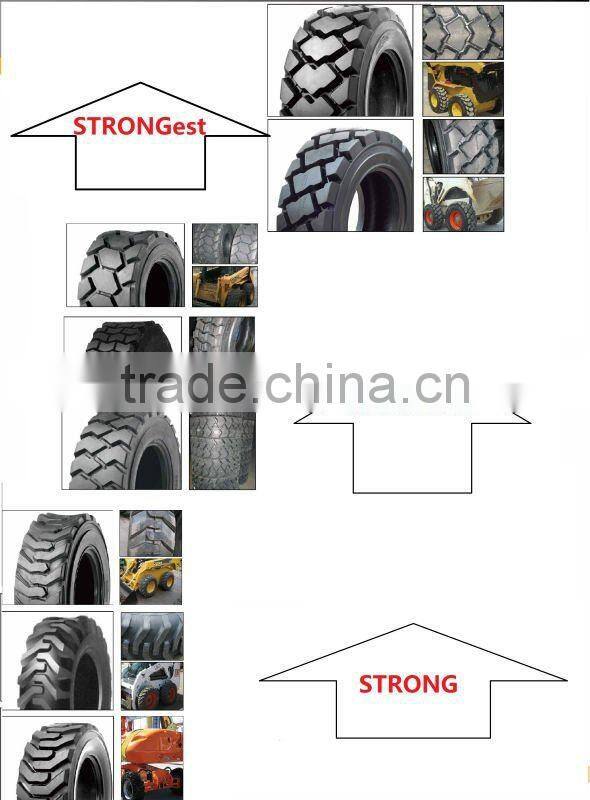

Patterns Availabe:
R4/ deeper L4/X'tra deep L5
R4
Features:
* Self-cleaning, open tread design for reduced maintenance time
* Extra large, tapered lugs for traction in slippery conditions and maximum wear life
* Reinforced dual sidewall for superior wear and resistance to cuts and abrasions
* Heavy rim guard reduces potential for damage to tire bead and wheel flange
* Improved productivity
* A smooth, stable ride for operator comfort
Applications:
* Dry Soil
* Wet Soil
* Rocky Soil
* Asphalt
Extra-Deep L5
Features:
* 14 ply rating enhances tear and puncture resistance
* Exceptional tread life resulting from low void-to-tread ratio
* Superior carcass strength allows the tire to bear extreme heavy load
* Exceptional traction and long wear
Applications:
* Quarries
* Rock & Shale
* Gravel
* Scrap Yard
* Asphalt
* Stone
Equivalent Brands:
| Equivalent Brands: | Part No. |
| Solideal | |
| Goodyear Sure Grip Lug | |
| Titan Contractor FWD I-3 | |
| CAT Premium Conventional Tires | 185-9932 |
| 185-9933 | |
| 238-7740 | |
| 216-9111 | |
| 216-9112 | |
| 216-9113 | |
| 208-8512 | |
| 281-6590 | |
| 281-6591 | |
| CAT XD Tires | 222-3962 |
| 222-3963 |
MAIN Market
| Aera | % |
| Asia | 0 |
| Mideast | 30 |
| Africa | 20 |
| North America | 10 |
| South America | 20 |
| Europe | 0 |
| Australia | 20 |
| Others | 0 |

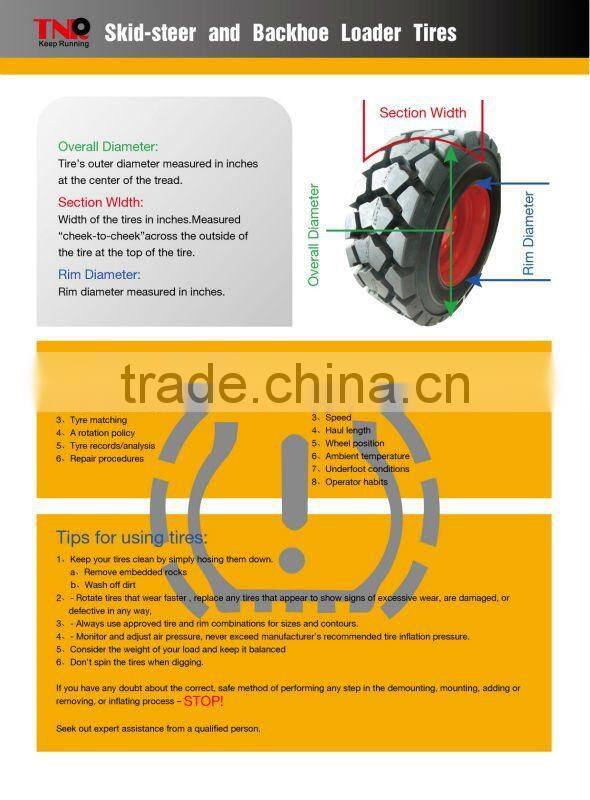

Safty Instructions:
The tire itself, the following factors are very important:
- Basic workmanship and materials.
- Air pressure maintenance
- Tyre matching
- A rotation policy
- Tyre records/analysis
- Repair procedures
Working site conditions, Including the following factors:
1. Type of equipment
2. Weight of distribution
3. Speed
4. Haul length
5. Wheel position
6. Ambient temperature
7. Underfoot conditions
8. Operator habits
Tips for using tires:
- Keep your tires clean by simply hosing them down.
- Remove embedded rocks
- Wash off dirt
- Always use approved tire and rim combinations for sizes and contours.
- Monitor and adjust air pressure, never exceed manufacturer’s recommended tire inflation pressure.
- Consider the weight of your load and keep it balanced
- Don’t spin the tires when digging.
- Rotate tires that wear faster , replace any tires that appear to show signs of excessive wear, are damaged, or defective in any way,

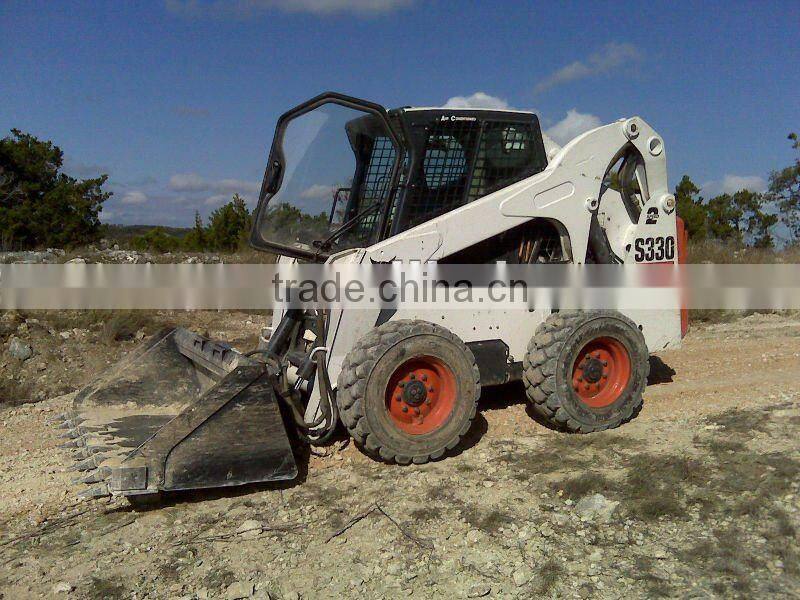

Which tire for which machines:
| CAT | BOBCAT | CASE | GEHL | JOHN DEER | MELROE BOBCAT | MUSTANG | NEW HOLLAND | RAM ROD | THOMAS | TOYATA | |||||||||||
| 10-16.5 | 216 | S130-S205 | 410-420 | 4515 | 240 | S130-S205 | 920 | L-465 | 516 | T-103 | 2SDK8 | ||||||||||
| 226 | 1835C | 4610 | 313 | 742 | 930A | L-553 | 584 | T-133 | |||||||||||||
| 228 | 1838 | 4615 | 315 | 743 | 940 | L-555 | |||||||||||||||
| 232 | 1840 | 4625 | 317 | 753 | L-565 | ||||||||||||||||
| 4635 | 675 | 753L | L-585 | ||||||||||||||||||
| 4835 | 4475 | 763 | LS-140 | ||||||||||||||||||
| 5625 | 5575 | 773 | LS-150 | ||||||||||||||||||
| 5635 | 6675 | 7753 | LS-160 | ||||||||||||||||||
| 6635 | 7775 | LS-170 | |||||||||||||||||||
| LX-465 |
| 12-16.5 | |||||||||||||||||||
| 236 | S220-S630 | 430-465 | 250 | S220-S630 | 96 | L-781 | 784 | T-173 | |||||||||||
| 242 | A300 | 1845 | 260 | 853H | 2060 | L-783 | T-203 | ||||||||||||
| 246 | 1845B | 320 | 8853 | L-785 | T-233 | ||||||||||||||
| 248 | 1845 | 325 | 843 | L-865 | T-243 | ||||||||||||||
| 252 | 8875 | 873 | L-885 | ||||||||||||||||
| 262 | 8853 | L-985 | |||||||||||||||||
| 268 | 853 | LS-180 | |||||||||||||||||
| 272 | 853H | LS-190 | |||||||||||||||||
| 863 | LX-865 |

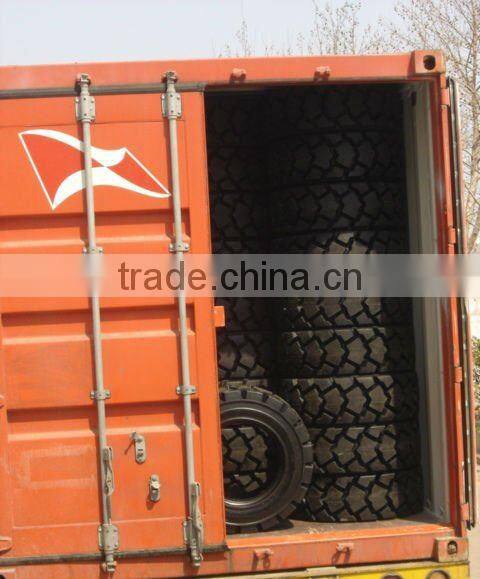

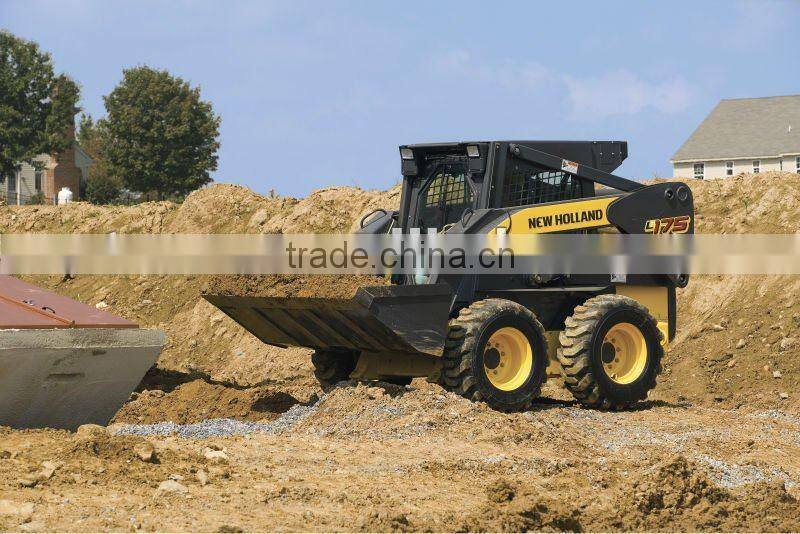

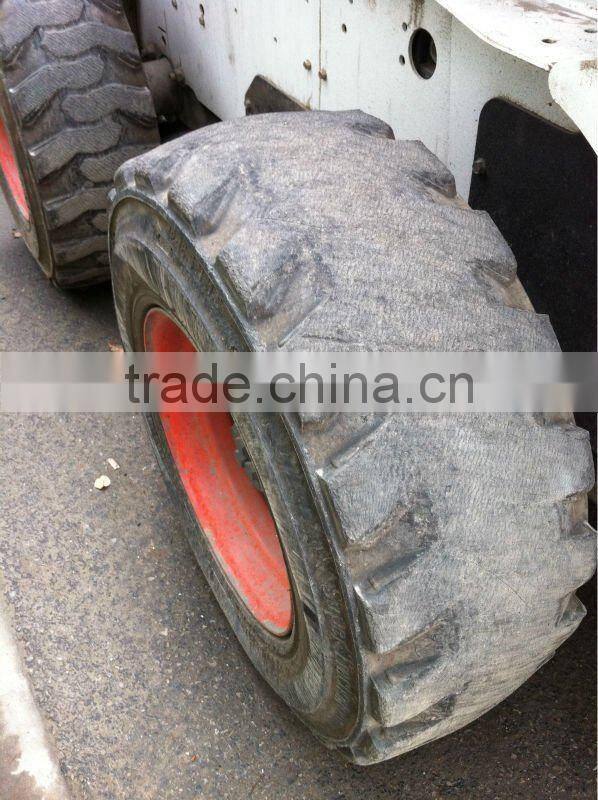

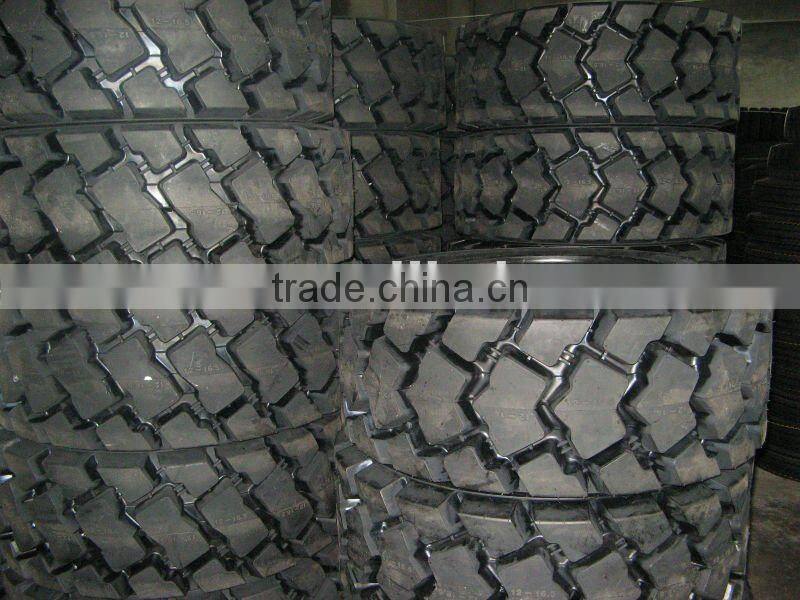

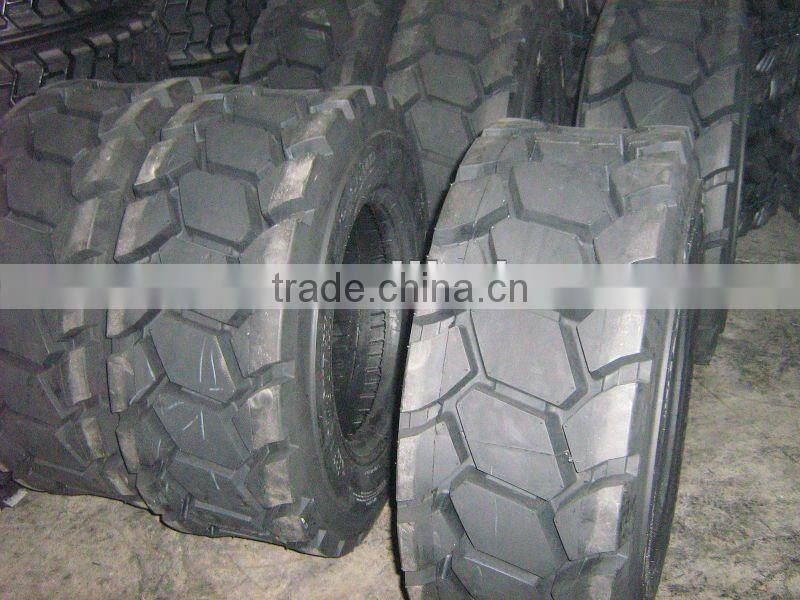

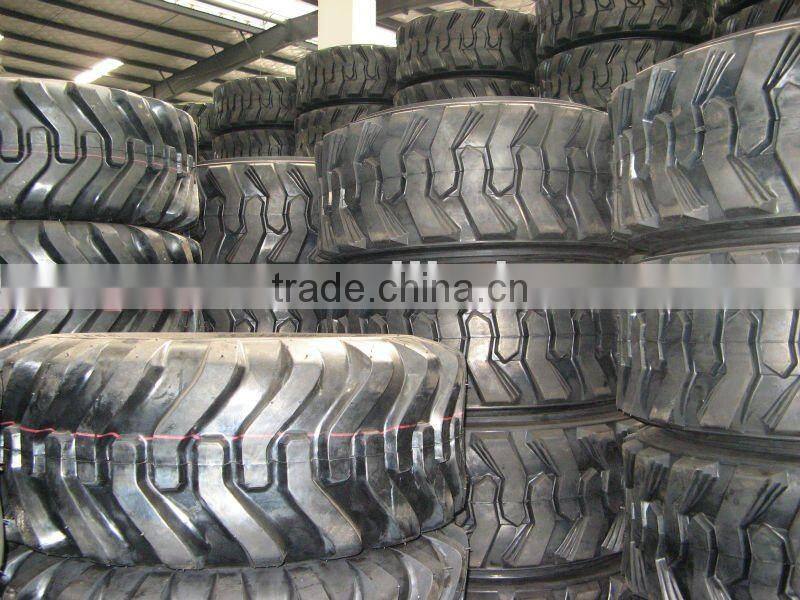

PICTURES:
