Specifications
DSTG Motor Grader1. DSTG Motor GraderPY220M
2. With Cummins or shangchai engine
with power 125kw-158kw
3. Blade
DSTG MOTOR GRADER PY220M/200M/180G/160G
Thanks for your attention for our products, we, Luoyang Chunqiu IMP & EXP Trading Co.,Ltd. Mainly deal with engineering machine and parts.
We have motor graders 125kw, 132kw, 140kw, 158kw, with cummins or shangchai engine, operating mass 11ton, 15ton, 16ton, 16.9ton, front dozer blade and rear ripper are optional.

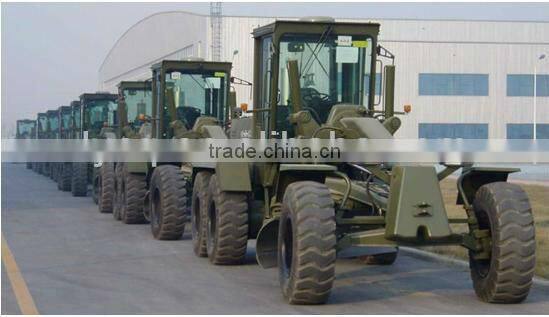

1.machine designated area
2.parts warehouse

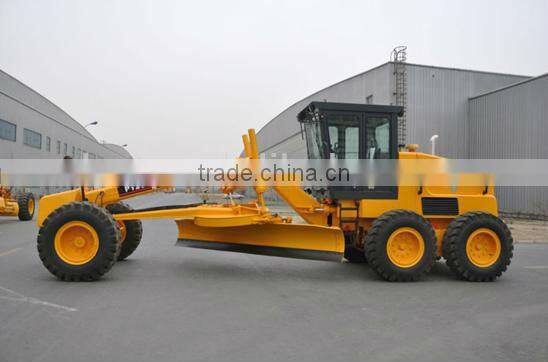

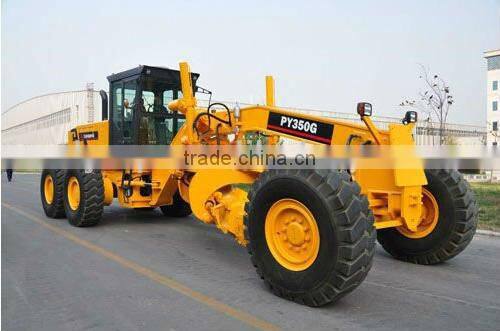

1.motor grader photos

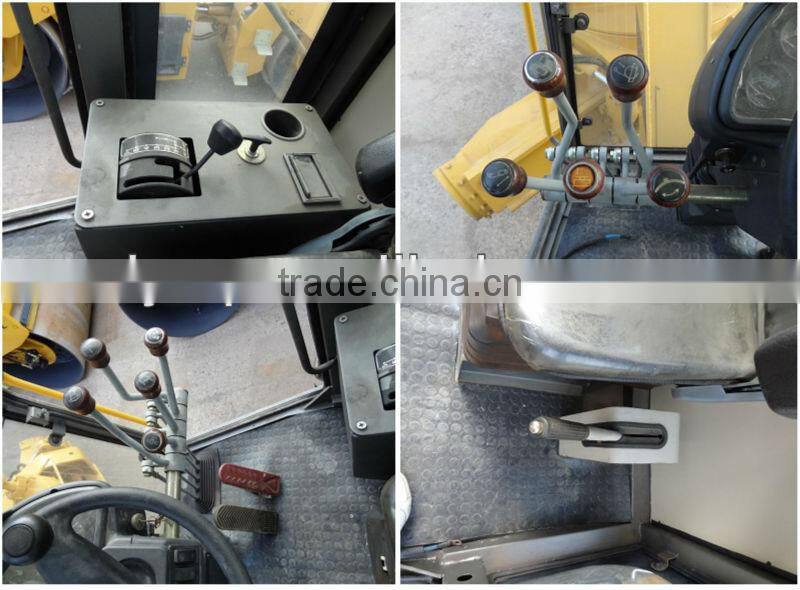

2.Cabin detail
PY220M/200M/180G/160G/160C Motor Grader Specifications
Machine parameters | ||
Dimension (L×W×H)Standard type |
9100×2600×3500mm |
|
Front dozer blade & rear scarifier type |
10330×2740×3500mm |
|
Axle base |
6335mm |
|
Wheel base |
2150mm |
|
Max. traction (coefficient of adhesion) |
86.6KN |
|
Min. turning radius (center line of outer front wheel) |
7800mm |
|
Engine | ||
Model |
SC11CB |
6CTA8.3-C230 |
Make |
Shangchai |
Cummins |
Rated power |
162/220 |
169/230 |
Rated speed (r/min) |
2300 |
2200 |
Weight | ||
Quality of work |
16500Kg |
|
Blade | ||
Length× height |
4270×650mm |
|
Rotation angle |
360° |
|
Max. tilt angle (left/right) |
90° |
|
Max. cutting depth |
470mm |
|
Wheel | ||
Tyre |
17.5-25 12PR |
|
Dozer blade (Optional) | ||
Width×height |
2740×920mm |
|
Distance to the front axle |
1550mm |
|
Max. cutting depth |
205mm |
|
Scarifier (Optional parts) | ||
Working width |
2000mm |
|
Max. cutting depth |
315mm |
|
Number of scarifier teeth |
5 |
|
Optional parts | ||
Front dozer blade | ||
Rear scarifier | ||
Rake attachment | ||
Environment-friendly air conditioner | ||
Automatic blade positioner | ||
Splasher | ||
