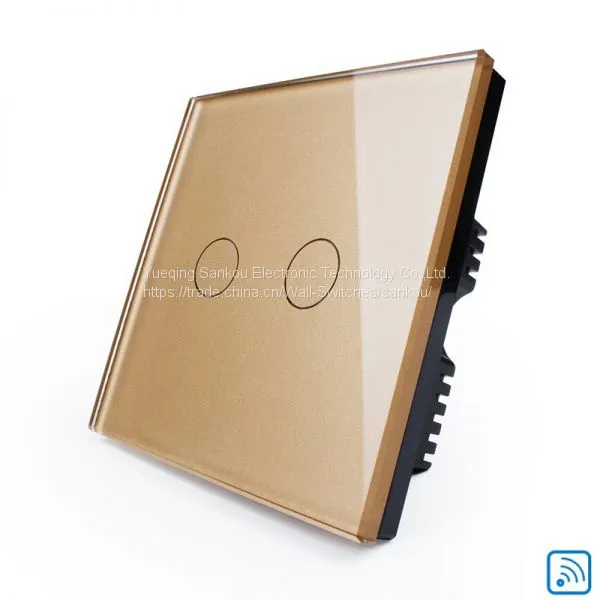

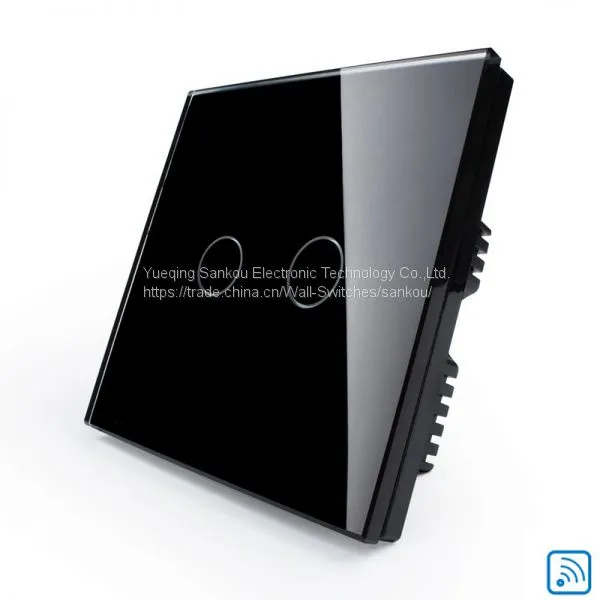

Help CenterUK RF 433.92MHz315MHz 2gang Touch Switch With Remote Controller
Related Products
-
UK Standard One Gang One Way White Crystal Glass Panel Touch Switch,wall SwitchUS$ 5.6 - 7.12MOQ: 10 Pieces -
UK Standard Two Gang One Way Crystal Glass Panel Touch Light Switch,110V/250V Wall SwitchUS$ 7.7 - 9.5MOQ: 10 Pieces
-
UK Standard Three Gang One Way Crystal Glass Panel Smart Home Wall Switch Touch Light SwitchUS$ 9 - 11.3MOQ: 10 Pieces
-
UK Standard ,110V-250V,one Gang Two Way Luxury Crystal Glass Panel Wall Switch Touch Light SwitchUS$ 9.2 - 11.15MOQ: 10 Pieces
-
UK Standard DC12V/AC250V Two Gang Two Way Luxury Crystal Glass Panel Touch Light SwitchUS$ 9.2 - 11.15MOQ: 10 Pieces
1gang/2gang/3gang 1way with remote function, suitable for RF 433.92MHz and 315MHz remote, can composed with home APP intelligent system. You can choose one of our remote paired study. Control lights on & off with remote controller directly.
Technical Parameters:
| Model | SK-A801-03UKB | SK-A802-03UKB | SK-A803-03UKB |
| Control Gang | One gang | Two gang | Three gang |
| Rated Voltage | AC220V/AC110V | ||
| Rated Power | 5W/2000W | ||
| Rated Frequency | 50Hz/60Hz | ||
| Receiving Frequency | 433.92MHz/315MHz | ||
| Power Supply | Single Live Line | ||
| Panel Material | Crystal glass panel, high quality flame retardant PC bottom case | ||
| Self Power Consuming | ≤0.1mA | ||
| Dimension (mm) | 86mm*86mm*33mm | ||

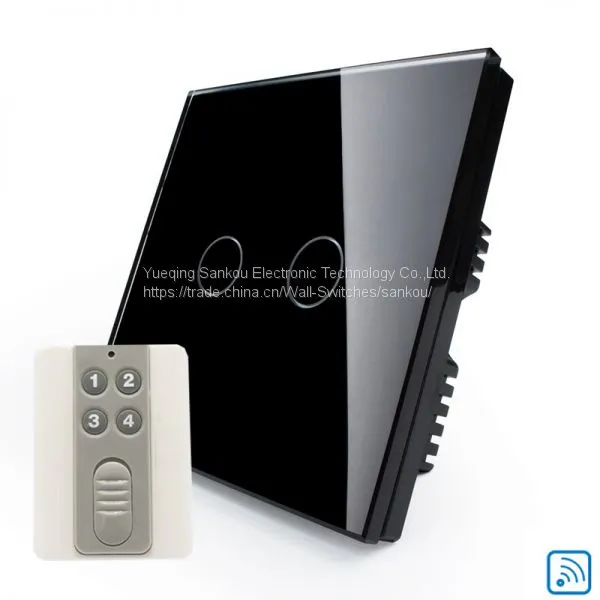

Touch switch with remote controller
1. Adopt PCB board communication antenna, remote frequency more stable. Most of other manufacturers using wires to remote.
2. Adopt EV1527 remote control module, better paired study with remote control from other manufacturers.
Production Process:
Step 1: Raw materials: For supplier of spare parts, our company has specialized person to inspect the quality, and using high quality parts. So that make the finished product more perfect.
Step 2: Welding: Using SMD automatic, making weld tightly, products more stable more beautiful.
Step 3: Debugging: Strict in testing program, with MCU control broad test (turn voltage and take load), making voltage more accurate, reducing the failure rate.
Step 4: Assemby: Using imported tricyclic paint which spray on PCB, can be waterproof, dustproof and anti-corrosion, make the products more stable and long-term use.
Step 5: Finished products test: Testing for sensitivity, dual-control study and all functions.
Step 6: Aging test: Sensitivity test, performance test including of remote control, lighting and so on.
Step 7: Finished products: Random inspection by quality inspector in accordance with ISO9001 Quality Control System.
Sankou Switch's Features:
1. Crystal glass panel, controlling by slightly touch, high-level enjoy.
2. 50ms touch response rate, high-tech touch technology.
3. Intelligent identify, Multi-protection. Make performance more stable.
4. Red & green backlight indicator. Don't worry about elder and children in night
5. International certification: CE, FCC and RoHS. High quality assurance.
6. Easy installation, without extra wiring.
7. Crystal glass panel have three color (white, black & gold), our own brand is SANKOU. We provide OEM and ODM service. (Note: Crystal glass plate can be customized personalized color. )
