Help CenterShear Studs,Weld Stud,Cheese Head Arc Welding Stud ISO13918 Shear Studs(bolt/stud/welded Stud)
Related Products
-
ASW D1.1 Shear Stud/weld Stud/arc Welding StudUS$ 0.1 - 0.3MOQ: 1 Ton -
ISO13918 Shear Stud for BridgeUS$ 0.1 - 0.3MOQ: 1 Ton
-
ISO 13918-1998 Unthreaded Stud for Arc Stud Welding(UT)US$ 1.3 - 1.5MOQ: 500 Pieces
-
Shear Connectors(SD)US$ 1.3 - 1.5MOQ: 500 Pieces
-
Unthreaded Studs(UD)US$ 1.3 - 1.5MOQ: 500 Pieces
Specifications
Shear studs1.CE
2. 3 days delivery time
3.High quality
4.100% inspection

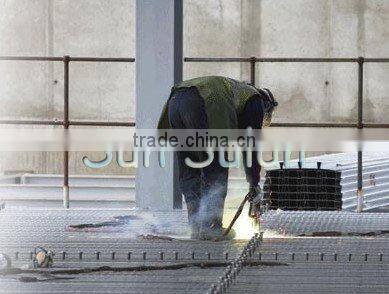

Stud welding, portable welders, stud welders, welder generators & capacitor discharge stud welding systems
Shear connector detail:
|
Raw material:
|
Carbon steel SWRCH 15A OR 18A(Equal to C1015-1020)
|
|
Size range:
|
Dia.: M12-M25(1/2"~1") Length: 30~100mm
|
|
Specs.:
|
EN ISO13918, ASWD1.1, GB/T10433, JIS B1198, AS1554,ECT.
|
|
Finish:
|
Plain, polish,phosphating coating,black, special heat treatment.
|
|

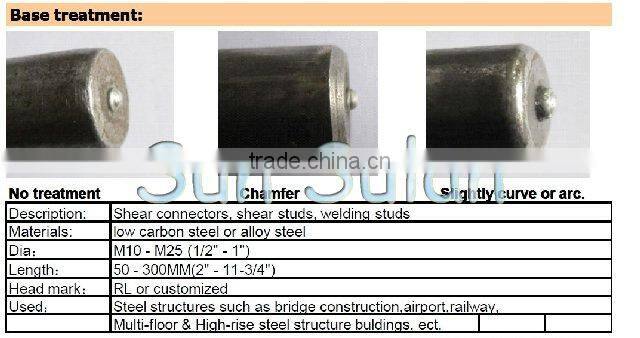

Bottom:
|
Making chamfer or slightly curve.
|
|
Mark:
|
Our logo HYZ or as your requested.
|
|
Seaworthy packing:
|
1.Plastic bag+strong carton+ wooden pallet. 2.Plastic bag+ metal or plastic barrel + wooden pallet or wooden case.
|
shear stud|shear connector | TC bolt | manufacturer |China
Shear Connector(M3~M64)
Standard: ISO 13918; AWS D1.1,ASTM A108
Mechanical properties:
Tensile strength ≥ 450N/mm2
Yield strength ≥ 350N/mm2
Elongation ≥ 15%
Shear studs(bolt/stud/welded stud)
Round-ended nail used in arc stud welding (shear studs)
| STUD DIMENSIONS | |||||||
| d | nominal | 10 | 13 | 16 | 19 | 22 | 25 |
| min | 9.64 | 12.57 | 15.57 | 18.48 | 21.48 | 24.48 | |
| max | 10 | 13 | 16 | 19 | 22 | 25 | |
| dK | min | 17.65 | 21.58 | 28.58 | 31.5 | 34.5 | 39.5 |
| max | 18.35 | 22.42 | 29.42 | 32.5 | 35.5 | 40.5 | |
| K | min | 6.55 | 7.55 | 7.55 | 9.55 | 9.55 | 11.45 |
| max | 7.45 | 8.45 | 8.45 | 10.45 | 10.45 | 12.55 | |
| WA ref. | 4 | 5 | 5 | 6 | 6 | 6 | |
| L1 | 40-180 | 40-200 | 50-250 | 60-300 | 80-300 | 80-300 | |
