Shear Connectors(SD)

Name: Shear Connectors(SD)
Brand: PAPAYA
SKU: 139914775
Availability: InStock

US$ 1.3 - 1.5 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

PAPAYA

Model Number:

M13,M16,M19.M25

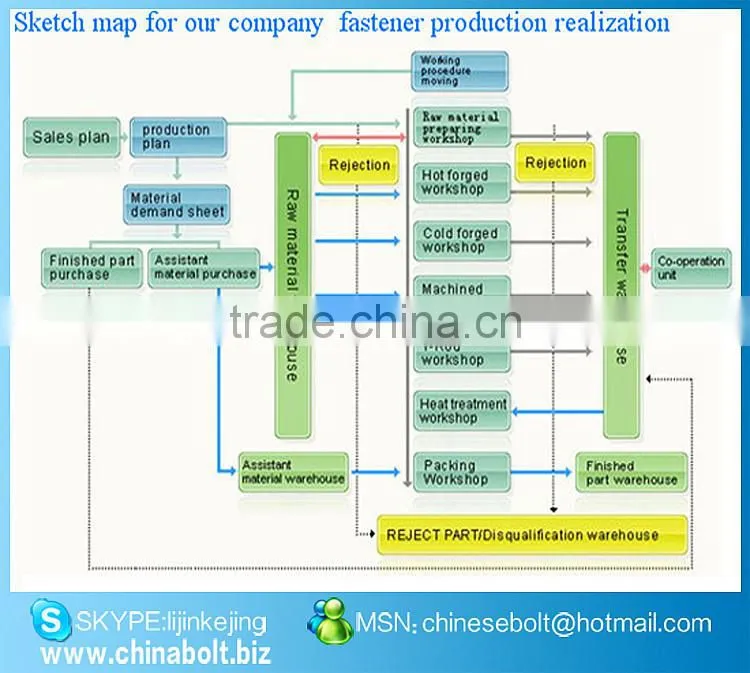

Hangzhou Papaya Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI OR NINGBO PORT

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name PAPAYA

Model Number M13,M16,M19.M25

Standard ANSI

Specifications

1.CE
2.5 days delivery time
3.ASTM A108, ASW D1.1, EN ISO13918, AS/NZS1554, JIS B1198
4.Advanced equipment

1. Stud welding, portable welders, stud welders, welder generators & capacitor discharge stud welding systems

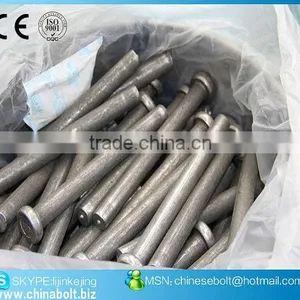

Shear Connector

M25*300

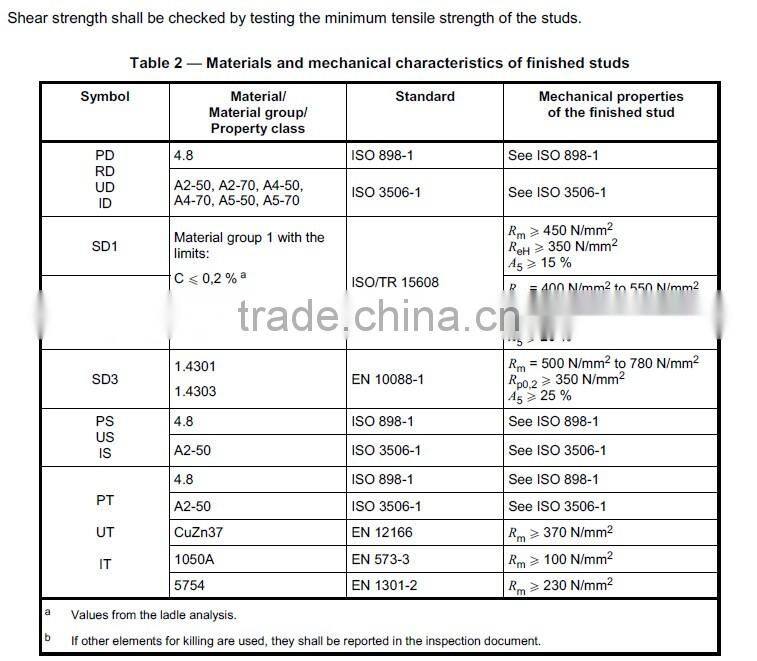

Standard: ISO 13918; AWS D1.1,ASTM A108
Mechanical properties:
Tensile strength ≥ 450N/mm2
Yield strength ≥ 350N/mm2
Elongation ≥ 15%

GB/T 10433, ASTM A108, ASW D1.1, EN ISO13918, AS/NZS1554, JIS B1198 Shear stud/weld stud/
arc welding stud

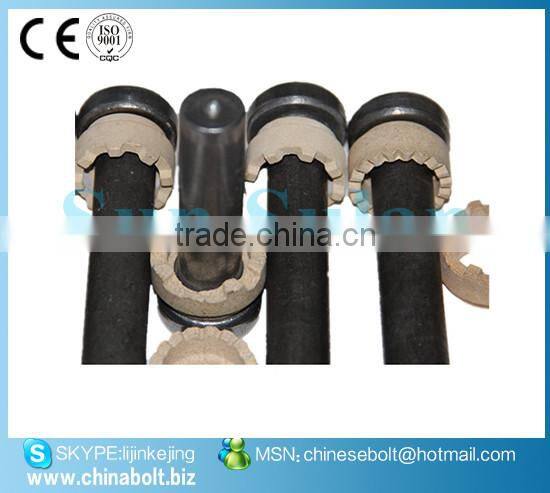

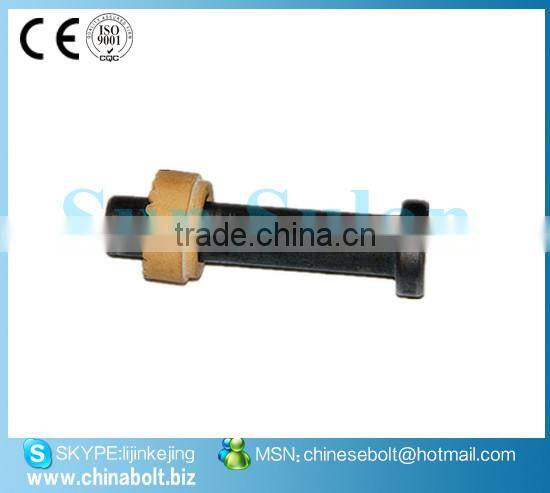

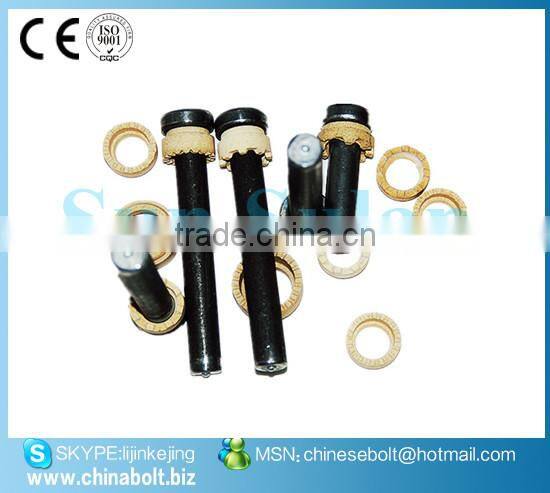

Round-ended nail used in arc stud welding (shear studs)

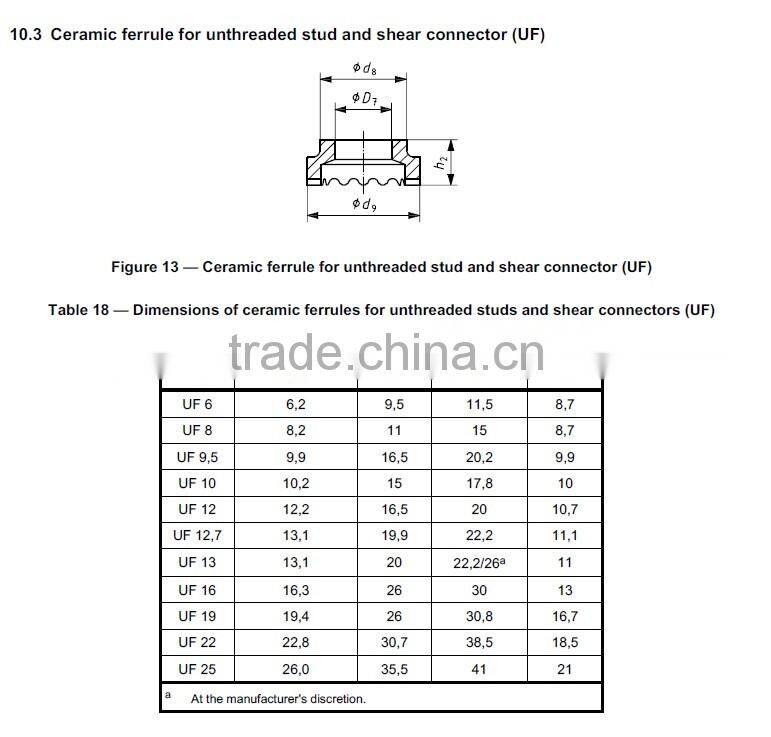

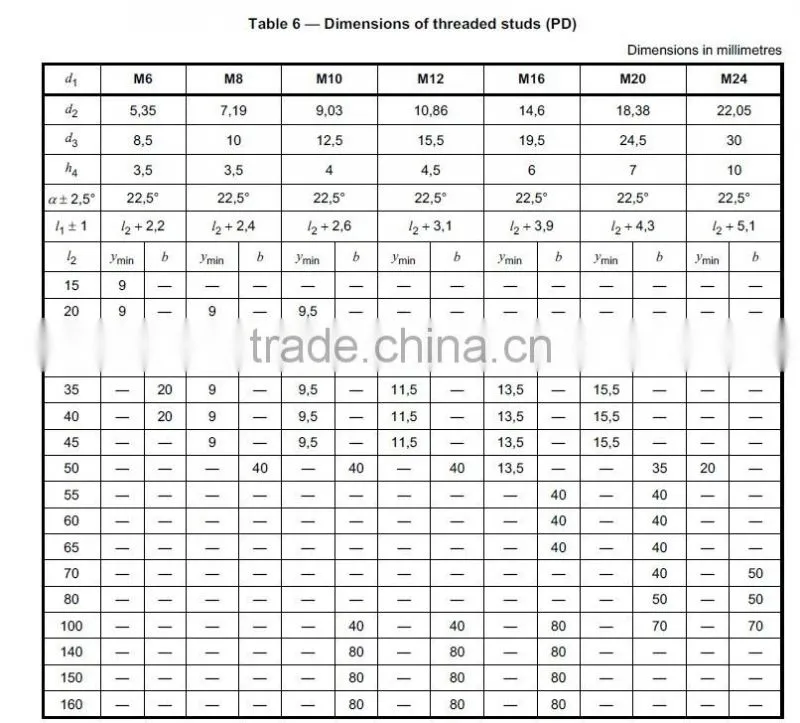

STUD DIMENSIONS
d	nominal	10	13	16	19	22	25
	min	9.64	12.57	15.57	18.48	21.48	24.48
	max	10	13	16	19	22	25
d_K	min	17.65	21.58	28.58	31.5	34.5	39.5
d_K	max	18.35	22.42	29.42	32.5	35.5	40.5
K	min	6.55	7.55	7.55	9.55	9.55	11.45
K	max	7.45	8.45	8.45	10.45	10.45	12.55
WA ref.		4	5	5	6	6	6
L₁		40-180	40-200	50-250	60-300	80-300	80-300

CHEMICAL COMPONSITIONS OF MATERIAL(%)
Material	C	Si	Mn	P	S	Al
ML15AI	0.13-0.18	≤0.10	0.30-0.60	≤0.035	≤0.035	≥0.020

MECHANICAL PROPERTIES
Country	Tensile strenghth _bN/mm²	Yield point _BS/mm²	Elongation percentage δ%	Contraction percentage Ψ%
CHINA GB/T10433	≥400	≥320	δ₅≥14
USA ANSI/AW Sd1.1	≥415	≥345	δ₄≥20	≥50
JAPAN JIS B 1198	402-549	≥235	δ_3.54≥20

MECHANICAL PROPERTIES
Country	Test item	STUD SIZE
Country	Test item	10	13	16	19	22	25
CHINA GB/T10433	Tensile load N	When the hammer hit the nail and the nail bend	55860	84420	119280	159600	206220
	Tensile load N
	Bend test	When the hammer hit the nail and the nail bend 30°, there is no crack which can be see by eye in the area of weld bead and heat-affected zone
USA ANSI/AW Sd1.1	Tensile load N		≥55100	≥83500	≥118000	≥158000
	Tensile load N	The crack is not on the weld bead.
	Bend test	Put the nail into the test set, and bend alternately the nail 30°in forward and negative direction (or bend the nail 90°), the crack is not on the weld.
JAPAN JIS B 1198	Tensile load N		52960-72570	80410-110800	113800-155900	153000-208900
	Tensile load N
	Bend test	When the hammer hit the nail, the nail bend less than 30°, there is no crack on the shank of nail and the welding
