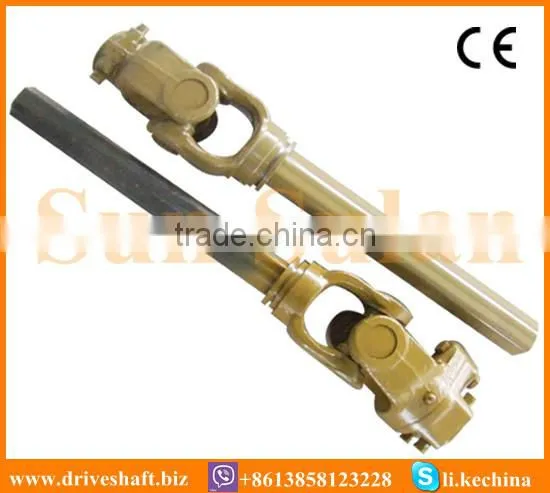

P pto shaft with shear bolt clutch with CE certificate

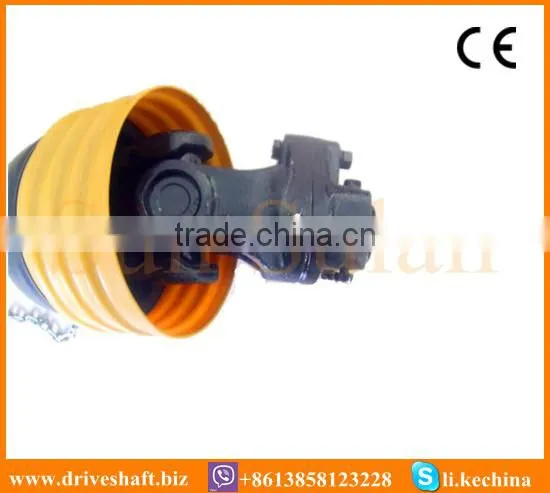

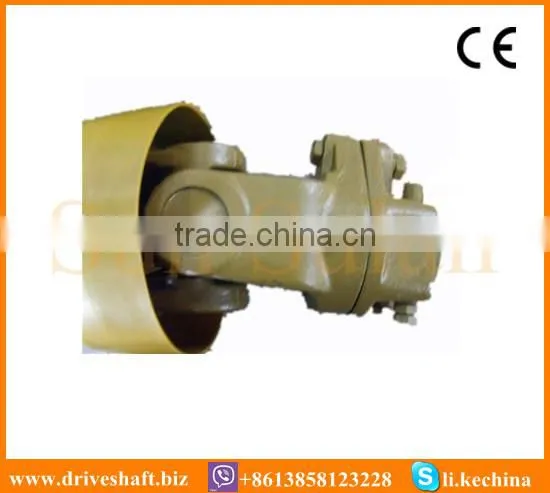

TORQUE LIMITING DEVICE WITH BOLT AND FREE
WHEEL
This device has the functional characteristics of a torque limiting
bolt together with those of a free wheel. It guarantees the vanishing
of power transmission by means of a bolt placed eccentrically
to the axisof the joint. The torque transmitted is a function of position,
size and grade of bolt used. It also ensures the transmission
of torque in only one direction of rotation.
Advantages / Features:
1. Materials:
Our company has purchased steel from several large steel groups , such as Hangzhou Steel Mill, Shanghai Bashan Steel Mill, Beijing Shrugging Steel Mill whose steel have good mechanical properties and stability of chemical component. it keep the shaft to be of high quality.
2. Manufacture Procession
First, we have our own High-precision Digital Machining center for mould making in special Mould Workshop, excellent mould make product beautiful appearance and its size accurately.
The second, we adopt blasting procession, removing Oxidation surface, make the surface to be bright and clean and uniform and beautiful.
The third, in heat treatment: We use the Controlled-atmosphere Automatic heat treatment Furnace,
3. Quality Control:
The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing. 100% inspection during production .
4. Production Capacity
Single PTO shaft , every month can produce 16000 pcs.
p pto shaft with shear bolt clutch with CE certificate
| Item | Cross journal size | 540dak-rpm | 1000dak-rpm | |||
| Series 1 | 22mm | 54mm | 12KW | 16HP | 18KW | 25HP |
| Series 2 | 23.8mm | 61.3mm | 15KW | 21HP | 23KW | 31HP |
| Series 3 | 27mm | 70mm | 26KW | 35HP | 40KW | 55HP |
| Series 4 | 27mm | 74.6mm | 26KW | 35HP | 40KW | 55HP |
| Series 5 | 30.2mm | 80mm | 35KW | 47HP | 54KW | 74HP |
| Series 6 | 30.2mm | 92mm | 47KW | 64HP | 74KW | 100HP |
| Series 7 | 30.2mm | 106.5mm | 55KW | 75HP | 87KW | 18HP |
| Series 8 | 35mm | 106.5mm |
70KW | 95HP | 110KW | 150HP |
| Series 38 | 38mm | 102mm | 70KW | 95HP | 110KW | 150HP |
