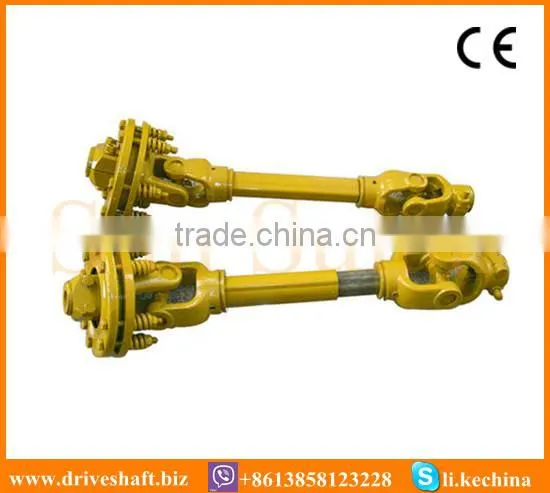

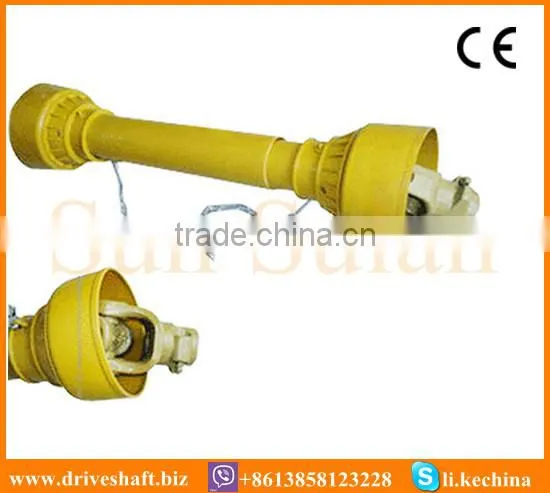

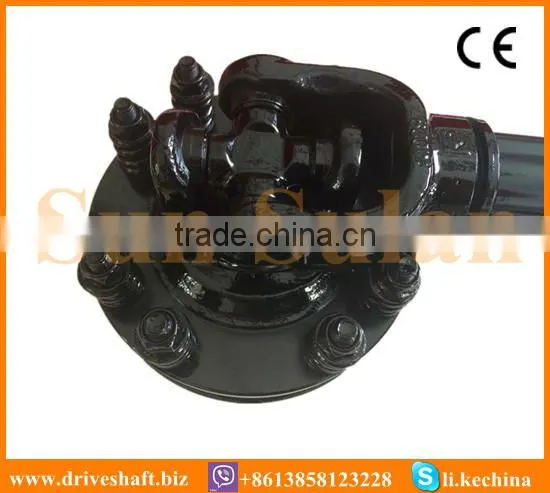

Pto Shaft Friction Clutch (Taper Pin) With CE Certificated
US$ 20 - 25
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Type:
Shafts
Use:
Tractors
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Agriculture Transmission Drive Shafts With CE CertificatedUS$ 20 - 25MOQ: 10 Pieces -
Wide-angle Joint Pto Shaft With CE CertificatedUS$ 20 - 25MOQ: 10 Pieces
-
Agricultural Implement Machine PTO Shaft With CE CertificatedUS$ 20 - 25MOQ: 10 Pieces
-
Triangular Tube for PTO Shaft With CE CertificatedUS$ 20 - 25MOQ: 10 Pieces
-
Pto Shaft Yokes for Agricultural Machinery With CE CertificatedUS$ 20 - 25MOQ: 10 Pieces
Type
Shafts
Use
Tractors
Place of Origin
Zhejiang, China
Brand Name
PAPAYA
Model Number
made in china
Specifications
pto shaft friction clutch (Taper Pin)1) MOQ:50 sets
2) CE Certificate
3) Advanced equipment
Company Information
1.With CE certificate
2.Forged yoke
3.Use for 15-120HP
4.Multi-tooth spline. Specifications from the 1 3 / 8 "Z6, 1 1 / 8" Z6, 1 3 / 4 "Z6, 1 3 / 8" Z20, 1 1 / 8 "Z20, 1 3 / 4" Z20, 1 3 / 8 "Z21 , 1 1 / 8 "Z21, 1 3 / 4" Z21, etc., complete specifications are welcome.

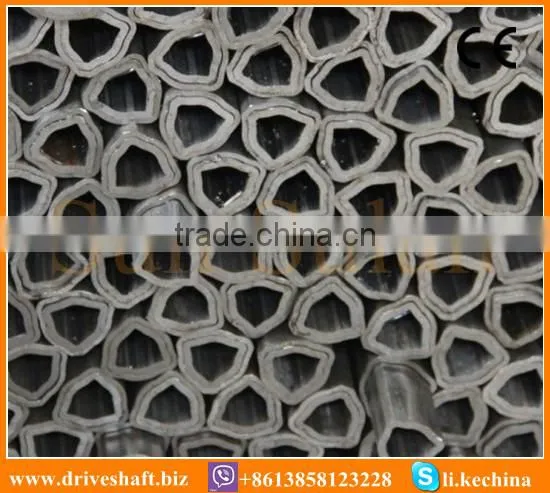

5.Triangle shaped tube, lemon tube, pipe welding fork Star,sqare tube .
PTO shaft's universal joint Characteristics
1. Material: 20Cr or 20CrMnTi
2. Surface Hardness: 58-64HRC
3. Core hardness:20Cr: 25-45HRC / 20CrMiTi: 33-48HRC

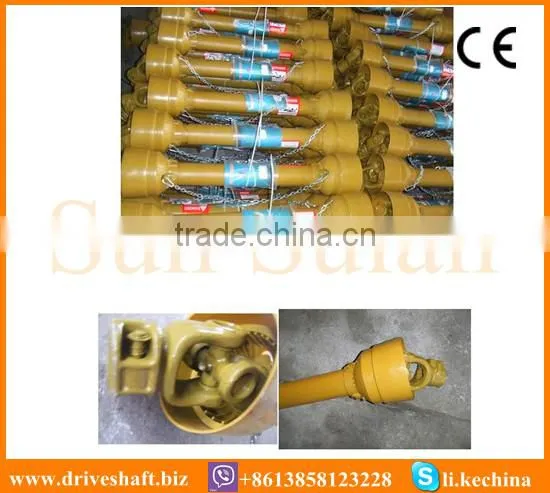

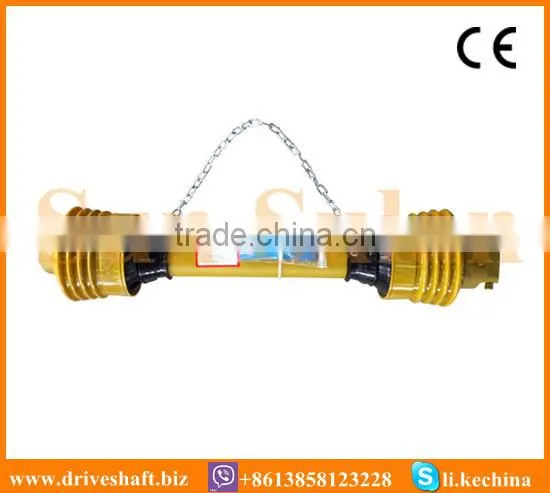

PTO drive shaft for different brands of agriculture machinery, such as tractor Johndeer, case,and newholland
| Item | Cross journal size | 540dak-rpm | 1000dak-rpm | |||
| Series 1 | 22mm | 54mm | 12KW | 16HP | 18KW | 25HP |
| Series 2 | 23.8mm | 61.3mm | 15KW | 21HP | 23KW | 31HP |
| Series 3 | 27mm | 70mm | 26KW | 35HP | 40KW | 55HP |
| Series 4 | 27mm | 74.6mm | 26KW | 35HP | 40KW | 55HP |
| Series 5 | 30.2mm | 80mm | 35KW | 47HP | 54KW | 74HP |
| Series 6 | 30.2mm | 92mm | 47KW | 64HP | 74KW | 100HP |
| Series 7 | 30.2mm | 106.5mm | 55KW | 75HP | 87KW | 18HP |
| Series 8 | 35mm | 106.5mm |
70KW | 95HP | 110KW | 150HP |
| Series 38 | 38mm | 102mm | 70KW | 95HP | 110KW | 150HP |
