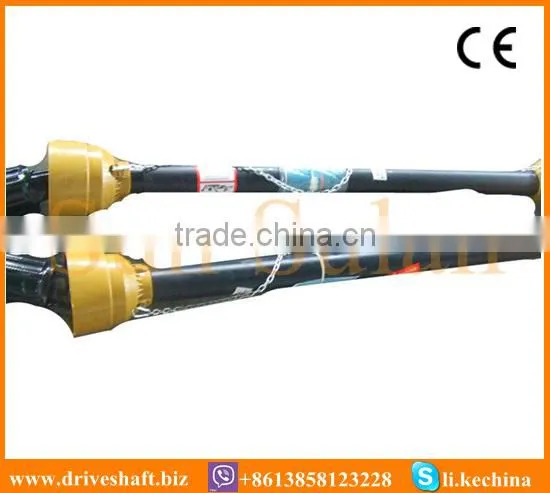

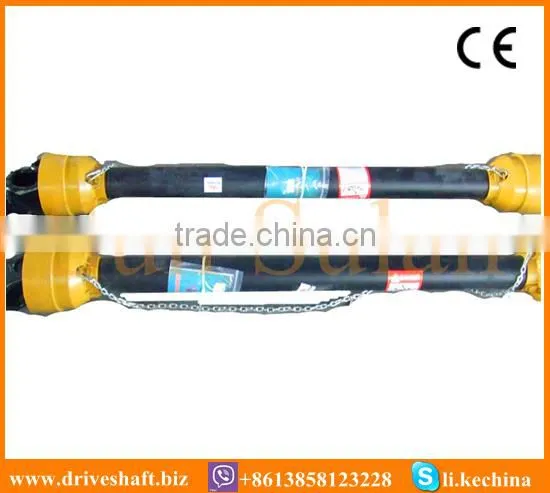

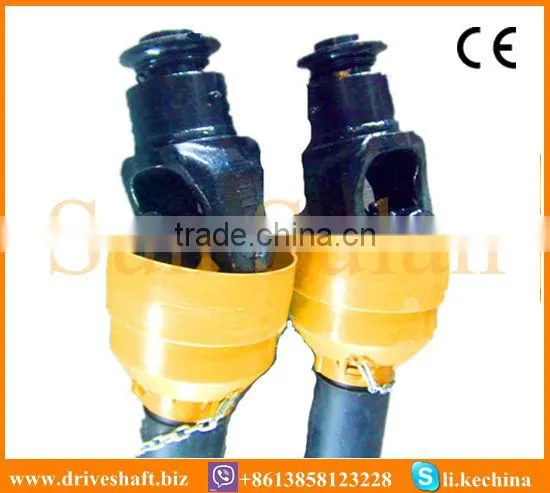

rotary tillers pto shaft with wide-angle joint

Specifications

rotary tillers pto shaft with wide-angle joint
1) 15 days delivery time
2) CE Certificate
3) Advanced equipment





PTO drive shaft for different brands of agriculture machinery, such as tractor Johndeer, case,and newholland



Item	Cross journal  size		540dak-rpm		1000dak-rpm
Series 1	22mm	54mm	12KW	16HP	18KW	25HP
Series 2	23.8mm	61.3mm	15KW	21HP	23KW	31HP
Series 3	27mm	70mm	26KW	35HP	40KW	55HP
Series 4	27mm	74.6mm	26KW	35HP	40KW	55HP
Series 5	30.2mm	80mm	35KW	47HP	54KW	74HP
Series 6	30.2mm	92mm	47KW	64HP	74KW	100HP
Series 7	30.2mm	106.5mm	55KW	75HP	87KW	18HP
Series 8	35mm	106.5mm	70KW	95HP	110KW	150HP
Series 38	38mm	102mm	70KW	95HP	110KW	150HP











Advantages / Features:

1. Materials:

Our company has purchased steel from several large steel groups , such as Hangzhou Steel Mill, Shanghai Bashan Steel Mill, Beijing Shrugging Steel Mill whose steel have good mechanical properties and stability of chemical component. it keep the shaft  to be of high quality.

2. Manufacture Procession

First, we have our own High-precision Digital Machining center for mould making in special Mould Workshop, excellent mould make product beautiful appearance and its size accurately.

The second, we adopt blasting procession, removing Oxidation surface, make the surface to be bright and clean and uniform and beautiful.

The third, in heat treatment: We use the Controlled-atmosphere Automatic heat treatment Furnace,

3. Quality Control:

The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing. 100% inspection during production .

4. Production Capacity

Single PTO shaft , every month can produce 9000 pcs.
