Specifications
Shaft/coupling/driving shaft1) Material: 20Cr or 20CrMnTi gear steel
2) Handness:60-68HRC
3) 10 Days delive
1.Type: forging shaft
2.Material:Alloy steel
3.Marking:according to the customer's requirements
4.Inspection:in-house and the third part

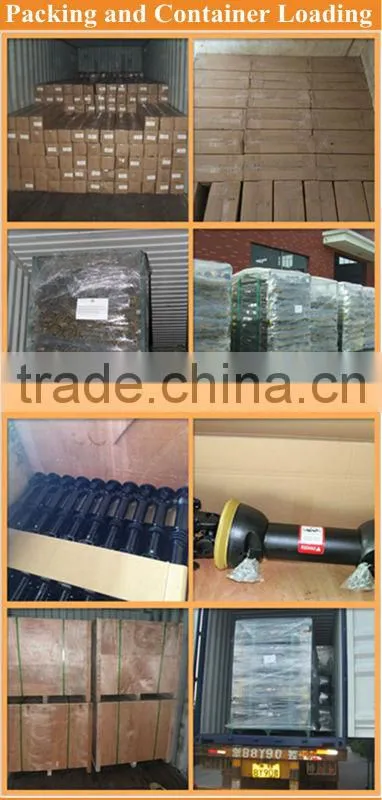

5.Packing:plywood cases and pallets

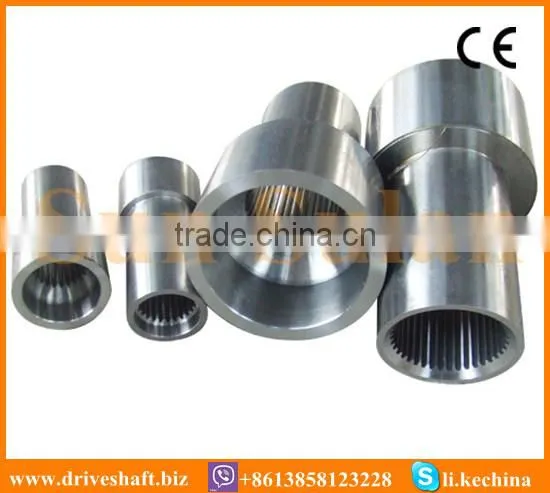

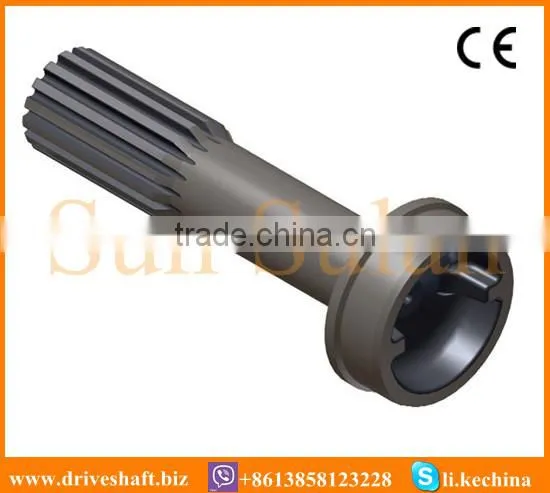

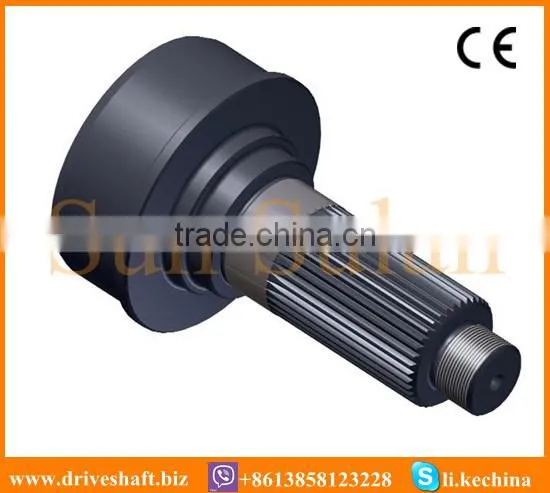

Product Name: Slip stub, Slip yokes, Slip tube yoke, End yoke specification:
2- 3- 128KX , 2- 3- 7681KX , 3- 3- 118KX , 4- 3- 1241KX, 10- 3- 122X, 2- 1421KX, 2- 3- 8001KX , 3- 3- 1601KX , 4- 3- 1431KX, 10- 3- 162X, 2- 3- 4441KX, 2- 3- 8021KX , 3- 3- 2041KX , 5- 3- 2261KX , 10- 3- 18KX, 2- 3- 4681KX , 2- 3- 8041KX, 3- 3- 598KX , 6- 3- 2651KX , 10- 3- 22X 2- 3- 4951KX , 2- 3- 8311KX, 3- 3- 788KX , 6- 3- 2671KX , 10- 3- 32X 2- 3- 5221X, 2- 3- 8481X , 10- 3- 33X, 2- 3- 9221X etc. .
1. Excellent performance, Long using life and competitive price.
2. Your sample request are welcomed 3. With own R&D dept. , OEM orders are available. Other relevant parts for cars or machines we have made in our workshop are as follows: drive shaft parts and assemblies, universal joint parts and assemblies, PTO drive shafts, spline shafts, slip yokes, weld yokes, flange yokes, steering columns, connecting rods, etc. . If you have any interest in our product, Pls contact us without hesitate.
| F Tubing | L | S | Slip Yoke Assy. | Slip Tube Shaft | Slip Assembly Kits | |
| Diameter & Wall | But | Face to Weld | Slip | |||
| 1310 Series E=88.1 D=26.9 USE KIT 5-153X & 5-204X & 5-625X | ||||||
| 31.7 x 16 Spline | ||||||
| 50.8x2.1 | 46.9 | 149 | 51 | 2-3-1421KX | 40-1408 | 43-14081421KX |
| 34.9 x 16 Spline | ||||||
| 50.8x2.4 | 46.3 | 161 | 54 | 2-3-128KX2 | 2-40-2431 | 43-24310128KX2 |
| 76.2x2.1 | 72.3 | 189 | 54 | 2-3-128KX2 | 2-40-1521 | 43-15210128KX2 |
| 88.9x1.65 | 85.9 | 172 | 54 | 2-3-128KX2 | 2-40-2911 | 43-29110128KX2 |
| 1330 Series E=98.6 D=26.9 USE KIT 5-213X & 5-273X & 5-618X & SPL25-1X | ||||||
| 34.9 x 16 Spline | ||||||
| 76.2x2.1 | 72.3 | 190 | 70 | 2-3-14491KX | 2-40-1521 | 43-152114491KX |
| 33.3 x 19 Based on 20 Involute Spline | ||||||
| 76.2x1.65 | 73.2 | 219 | 40 | 2-3-13241X | 2-40-2751 | 43-275113241X |
| 1410 Series E=112.8 D=30.2 USE KIT 5-160X & 5-462X & 5-641X | ||||||
| 38.1 x 16 Spline | ||||||
| 76.2x2.1 | 72.3 | 193 | 72 | 3-3-118KX1 | 3-40-1901 | 43-19010118KX1 |
| 88.9x2.1 | 85 | 197 | 72 | 3-3-118KX1 | 40-1674 | 43-16740118KX1 |
| 1480 Series E=112.8 D=34.8 USE KIT 5-188X & 5-263X & SPL55-1X & SPL55X | ||||||
| 39.9 x 16 Spline | ||||||
| 88.9x2.1 | 85 | 205 | 63 | 3-3-1601KX1 | 3-40-1571 | 43-15711601KX |
| 1550 Series E=133.4 D=34.8 USE KIT 5-155X & 5-275X & SPL70-1X & SPL70X | ||||||
| 44.45 x 16 Spline | ||||||
| 88.9x2.4 | 84.4 | 207 | 63 | 4-3-1241KX1 | 4-40-761 | 43-07611241KX |
| 90.0x3.0 | 84.4 | 207 | 63 | 4-3-1241KX1 | 4-40-761 | 43-07611241KX |
| SPL90 Series E=136.7 D=41.2 USE KIT SPL90-1 & SPL100X | ||||||
| 49.2 x 30 Involute Spline | ||||||
| 101.6x3.4 | 95.1 | 302 | 109 | 90-3-21X | 90-40-11 | 43-00110021X |
| 1610 Series E=135.0 D=47.7 USE KIT 5-279X & 5-438X & 5-674X | ||||||
| 50.8 x 16 Spline | ||||||
| 101.6x3.4 | 95.1 | 310.8 | 125 | 5-3-2261KX | 5-40-1051 | 43-10512261KX |
| 1650 Series E=151.6 D=41.2 USE KIT 5-165X | ||||||
| 50.8 x 16 Spline | ||||||
| 88.9x4.0 | 81.5 | 278.6 | 113 | 5-3-2341KX2 | 4-40-921 | 43-09212341KX2 |
| 1710 Series E=154.7 D=49.3 USE KIT 5-280X & 5-515X & 5-675X | ||||||
| 63.5 x 16 Spline | ||||||
| 114.3x3.4 | 107.8 | 336 | 130 | 6-3-2651KX | 6-40-621 | 43-06212651KX |
| 1810 Series E=191.8 D=49.3 USE KIT 5-281X & 5-510X & 5-676X | ||||||
| 76.2 x 16 Spline | ||||||
| 114.3x3.4 | 107.8 | 302.1 | 84 | 6.5-3-1351KX | 6.5-40-201 | 43-02011351KX |
| 114.3x3.4 | 107.8 | 355.1 | 126.0 | 6.5-3-1371KX | 6.5-40-191 | 43-01911371KX |
| 114.3x6.5 | 101.7 | 355.1 | 126.0 | 6.5-3-1371KX | 8-40-101 | 43-01011371KX |
| 1510 Series (Mercedes Benz GW2) E=98.0 D=38.0 USE KIT 5-12213XS | ||||||
| 50.8 x 16 Spline | ||||||
| 90.0x3.0 | 64.1 | 272 | 60 | 03-339XS | 40-1445 | 43-1445339XS |
| 1680 Series (Mercedes Benz GW5) E=130.0 D=45.0 USE KIT 5-12100X | ||||||
| 63.5 x 16 Spline | ||||||
| 90.0x4.0 | 82.1 | 337.5 | 105 | 03-423XS | 40-1560 | 43-1560423XS |
| T60 Series (Scania) E=159.0 D=44.0 USE KIT 5-12276X | ||||||
| 50.8 x 16 Spline | ||||||
| 88.9x4.0 | 82.1 | 271 | 100 | 03-334XL2 | 40-1722 | 43-1722334XL2 |
| T70 Series (Scania) E=177.0 D=50.0 USE KIT 5-12278X | ||||||
| 62.0 x 12 Spline | ||||||
| 95.0x5.0 | 85.6 | 306 | 95 | 03-334XL2 | 40-1722 | 43-17234XL2 |
| 1740 Series (Albarus) E=172.0 D=48.0 USE KIT 5-12062X | ||||||
| 65.0 x 26 Angular Spline | ||||||
| 95.0x5.0 | 85.6 | 313 | 121 | 03-514XL | 40-1727 | 43-1727514XL |
| 1780 Series (Albarus) E=177.0 D=50.0 USE KIT 5-12278X | ||||||
| 63.5 x 16 Spline | ||||||
| 95.0x5.0 | 85.6 | 305 | 112 | 03-386XL1 | 40-1490 | 43-1490386XL1 |
