High Quality Ram Cylinder

High Quality Ram Cylinder thumbnail-1
High Quality Ram Cylinder thumbnail-2
High Quality Ram Cylinder thumbnail-3
High Quality Ram Cylinder thumbnail-4
High Quality Ram Cylinder photo-1

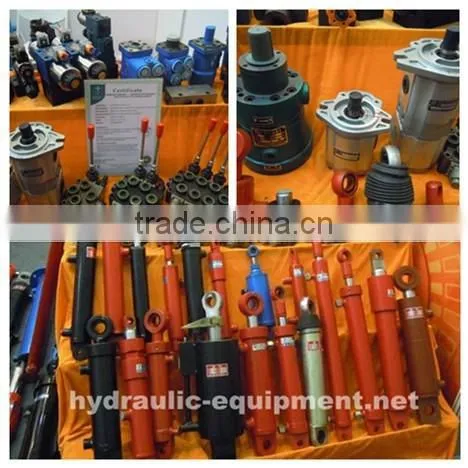

High Quality Ram Cylinder photo-2
High Quality Ram Cylinder photo-3

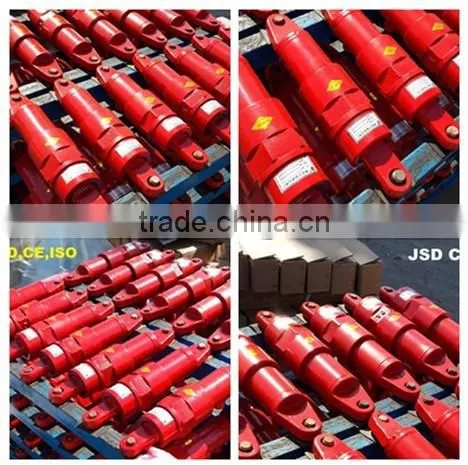

High Quality Ram Cylinder photo-4
US$ 10 - 1,999 MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Nonstandard
Structure:
General Cylinder
Power:
Hydraulic
Contact Supplier Request Quote Chat Now
Hebei Jinsidun (JSD) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Nonstandard
Structure General Cylinder
Power Hydraulic
Body Material Steel
Maximum Stroke 6M
Shaft Diameter 3cm-50cm
Place of Origin Hebei, China
Model Number HSG
Brand Name JSD

High Quality Ram CylinderQuality Creats Value



High Quality  Hydraulic Oil Steel Cylinder



  1. CE Certificated Company
  2. BV Certificate of Main Line Products Series Checked
  3. Paid Membership of
  4. Adopt ISO9001 Quality Management System


TECHNICAL SPECIFICATION OF HYDRAULIC CYLINDER:

Bore: 40 – 1000 mm (1 1/2 – 40 inch)

Rod: 12 – 500 mm (1/2 – 20 inch)

Rod should be hard chromed to minimum depth of 25 microns and polished to 0.15 um Ra

Plate of Rod: Cr, Ni or Ceramic

Stroke: Max 15 500 mm (610 inch

Design Pressure: Max 700 bar (10150 PSI)

Force Weight: Max 60 tons

Valves: SUN (USA)

Seals: PARKER (USA), MERKEL (Germany) or NOK (Japan)

Bearing: LONGXI (China) or SKF

Painting: Many colour, or follow with customer requirement or 3-coat marine painting

Certificate: CE, BV, ISO and CCS

Material: Carbon steel, Alloy steel, Stainless steel

Detail manufacturing drawings to be submitted to buyer for approval before manufacture is commenced.


Product Description

 Some Specification (We also can manufacture according to your requirements)



HG-E180,220EZ  Hydraulic Cylinder

Item No.

Stroke (mm)

Cylinder Dia.(mm)

Dia. of piston rod(mm)

Installation Distance(mm)

Rated Pressure(MPa)

JSD-E180X735RZ

735

180

65

1087

16

JSD-E180X780RZ

780

180

65

1165

16

JSD-E200X750RZ

750

200

65

1082

16

JSD-E200X630RZ

630

200

65

1318

16

JSD-E220X750RZ

750

220

70

1082

16

JSD-E220X886RZ

886

220

75

1191

16

HG Series is single-action piston rod hydraulic cylinder which mainly used in the hydraulic system of Medium or Duty Dump Truck



HSG Series Hydraulic Cylinder

Item No.

Ration

Dia. of Cylinder (mm)

Piston Rod Dia.(mm)

Thrust Force(KN)

Pulling Force (KN)

HSGK01-63/35E

1.46

63

35

50

34.5

HSGK01-80/40E

1.33

80

40

78.79

59.09

HSGK01-80/45E

1.46

80

45

78.79

53.9

HSGK01-90/50E

1.46

90

50

99.67

68.9

HSGK01-100/50E

1.33

100

50

123

92.23

HSGK01-100/55E

1.46

100

55

123

85.76

HSGL01-125/70E

1.46

125

70

192.32

132.01

HSGL01-140/80E

1.46

140

80

241.25

162.48

HSGL01-160/100E

1.46

160

100

315.10

192.02

HSGL01-180/110E

1.46

180

110

398.80

249.87

HSGL01-200/140E

1.46

200

140

492.35

251.10

HSG series hydraulic cylinder is double-action, single piston-rod hydraulic cylinder, widely used in the hydraulic systems of  Loader, Excavator, Baler, Presses etc.



ZG1 Series Hydraulic Cylinder

Item No.

Dia. of Plunger

Trust Force(KN)

Stroke (mm)

ZGL-E28X200

28

13.7

200

ZGL-E50X140

50

38.0

140

ZGL-E70X900

70

61.54

900

ZGL-E80X300

80

90.8

300

ZGL-E100X1200

100

138.5

1200

ZGL-E110X290

110

166.2

290

ZG1 series hydraulic cylinder is one way plunger cylinder. Mainly used in Forklift, Automatic dumper, and Agricultural Harvesting Machinery



 Customer's requiremens and drawing are acceptable.



 Products Show

High Quality Ram Cylinder
High Quality Ram Cylinder
High Quality Ram Cylinder
High Quality Ram Cylinder
High Quality Ram Cylinder
High Quality Ram Cylinder
High Quality Ram Cylinder





Company Information
CE Certificate ISO9001 Certificate
 High Quality Ram Cylinder  High Quality Ram Cylinder
BV Certificate
 High Quality Ram Cylinder





Our Services
  • After-sales service availabe
  • Quality Qurantee: one year
  • Delivery: Fast Delivery
  • OEM Available
