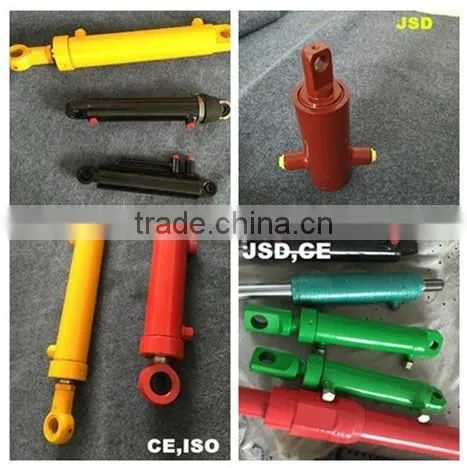

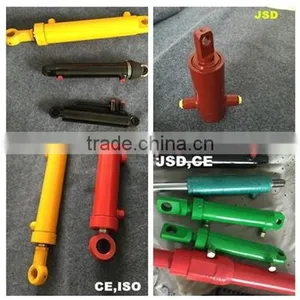

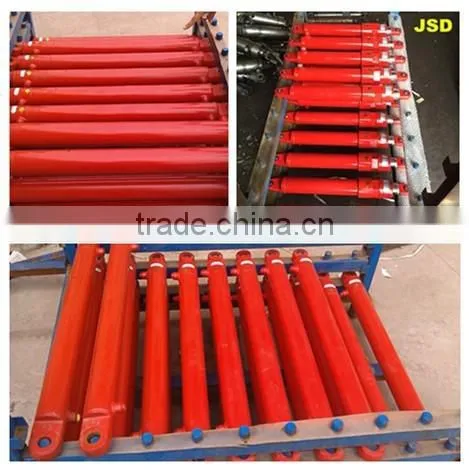

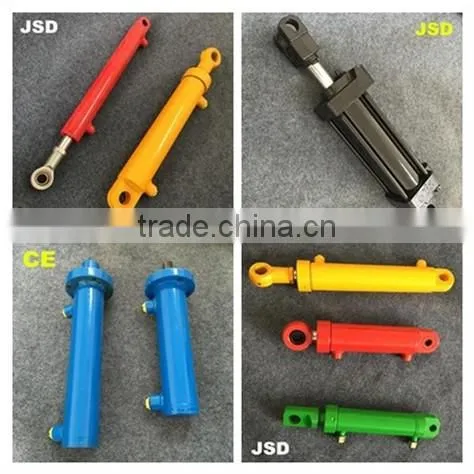

2015 Hot Type! Mini Hydraulic cylinder

JSD-TYPE Hydraulic Cylinder

Item No.

Stroke (mm)

Cylinder Dia.(mm)

Dia. of piston rod(mm)

Installation Distance(mm)

Rated Pressure(MPa)

JSD-E180X735RZ

735

180

65

1087

16

JSD-E180X780RZ

780

180

65

1165

16

JSD-E200X750RZ

750

200

65

1082

16

JSD-E200X630RZ

630

200

65

1318

16

JSD-E220X750RZ

750

220

70

1082

16

JSD-E220X886RZ

886

220

75

1191

16

HG Series is single-action piston rod hydraulic cylinder which mainly used in the hydraulic system of Medium or Duty Dump Truck

HSG Series Hydraulic Cylinder

Item No.

Ration

Dia. of Cylinder (mm)

Piston Rod Dia.(mm)

Thrust Force(KN)

Pulling Force (KN)

HSGK01-63/35E

1.46

63

35

50

34.5

HSGK01-80/40E

1.33

80

40

78.79

59.09

HSGK01-80/45E

1.46

80

45

78.79

53.9

HSGK01-90/50E

1.46

90

50

99.67

68.9

HSGK01-100/50E

1.33

100

50

123

92.23

HSGK01-100/55E

1.46

100

55

123

85.76

HSGL01-125/70E

1.46

125

70

192.32

132.01

HSGL01-140/80E

1.46

140

80

241.25

162.48

HSGL01-160/100E

1.46

160

100

315.10

192.02

HSGL01-180/110E

1.46

180

110

398.80

249.87

HSGL01-200/140E

1.46

200

140

492.35

251.10

HSG series hydraulic cylinder is double-action, single piston-rod hydraulic cylinder, widely used in the hydraulic systems of  Loader, Excavator, Baler, Presses etc.

ZG1 Series Hydraulic Cylinder

Item No.

Dia. of Plunger

Trust Force(KN)

Stroke (mm)

ZGL-E28X200

28

13.7

200

ZGL-E50X140

50

38.0

140

ZGL-E70X900

70

61.54

900

ZGL-E80X300

80

90.8

300

ZGL-E100X1200

100

138.5

1200

ZGL-E110X290

110

166.2

290

ZG1 series hydraulic cylinder is one way plunger cylinder. Mainly used in Forklift, Automatic dumper, and Agricultural Harvesting Machinery
