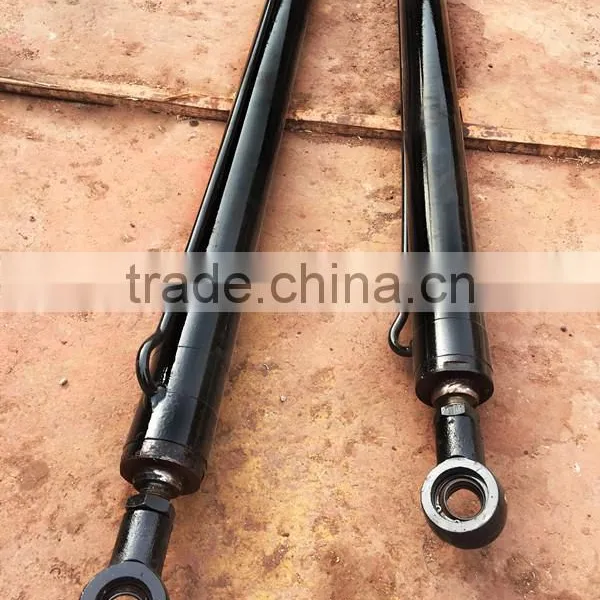

Long Stroke Hydraulic Cylinder for Dam Gate, Water Gate, Radial Gate

US$ 10 - 1,999 MOQ: 1 Piece

Key Specifications

Standard or Nonstandard:

Nonstandard

Structure:

General Cylinder

Power:

Hydraulic

Hebei Jinsidun (JSD) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China main port

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Nonstandard

Structure General Cylinder

Power Hydraulic

Body Material Steel

Maximum Stroke 5M

Shaft Diameter 3cm-50cm

Place of Origin Hebei, China

Model Number Long Stroke hydraulic cylinder

Brand Name JSD

Quality Creats Value

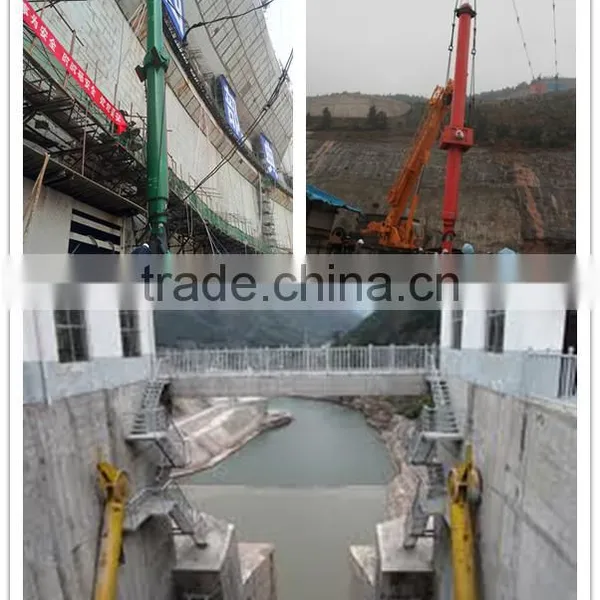

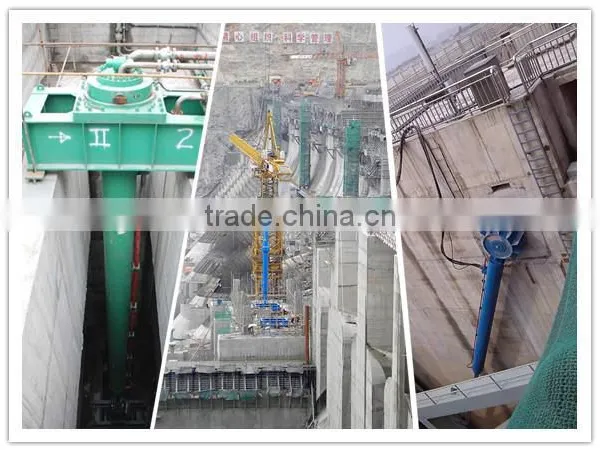

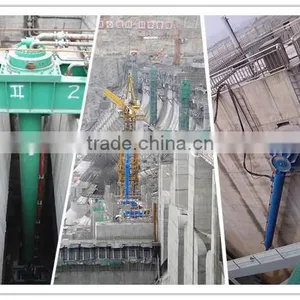

Long Stroke Hydraulic Cylinder for

Dam Gate,Water Gate,Radial Gate

Some Specification (We also can manufacture according to your requirements)

HG-E180,220EZ Hydraulic Cylinder
Item No.	Stroke (mm)	Cylinder Dia.(mm)	Dia. of piston rod(mm)	Installation Distance(mm)	Rated Pressure(MPa)
JSD-E180X735RZ	735	180	65	1087	16
JSD-E180X780RZ	780	180	65	1165	16
JSD-E200X750RZ	750	200	65	1082	16
JSD-E200X630RZ	630	200	65	1318	16
JSD-E220X750RZ	750	220	70	1082	16
JSD-E220X886RZ	886	220	75	1191	16
HG Series is single-action piston rod hydraulic cylinder which mainly used in the hydraulic system of Medium or Duty Dump Truck

HSG Series Hydraulic Cylinder
Item No.	Ration	Dia. of Cylinder (mm)	Piston Rod Dia.(mm)	Thrust Force(KN)	Pulling Force (KN)
HSGK01-63/35E	1.46	63	35	50	34.5
HSGK01-80/40E	1.33	80	40	78.79	59.09
HSGK01-80/45E	1.46	80	45	78.79	53.9
HSGK01-90/50E	1.46	90	50	99.67	68.9
HSGK01-100/50E	1.33	100	50	123	92.23
HSGK01-100/55E	1.46	100	55	123	85.76
HSGL01-125/70E	1.46	125	70	192.32	132.01
HSGL01-140/80E	1.46	140	80	241.25	162.48
HSGL01-160/100E	1.46	160	100	315.10	192.02
HSGL01-180/110E	1.46	180	110	398.80	249.87
HSGL01-200/140E	1.46	200	140	492.35	251.10
HSG series hydraulic cylinder is double-action, single piston-rod hydraulic cylinder, widely used in the hydraulic systems of Loader, Excavator, Baler, Presses etc.

ZG1 Series Hydraulic Cylinder
Item No.	Dia. of Plunger	Trust Force(KN)	Stroke (mm)
ZGL-E28X200	28	13.7	200
ZGL-E50X140	50	38.0	140
ZGL-E70X900	70	61.54	900
ZGL-E80X300	80	90.8	300
ZGL-E100X1200	100	138.5	1200
ZGL-E110X290	110	166.2	290
ZG1 series hydraulic cylinder is one way plunger cylinder. Mainly used in Forklift, Automatic dumper, and Agricultural Harvesting Machinery
