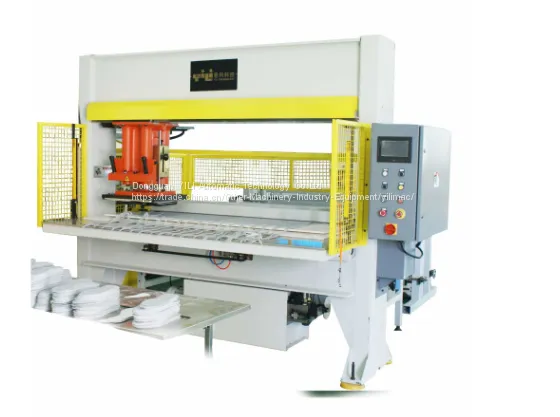

YL-898Q AUTOMATIC FEEDING TRAVELING HEAD CUTTING MACHINE / Automatic Sole Cutting Machine

1. Application: Continuously cut the sheet material of non-metal with the same size by mass production.Be used for sporty product/ accessory of abrasive tools/Medical product/ clothing/ and some other industry.

2. Operation principle: The crosswise operation and rotation equipped with servo motor can improve the utilization rate and make it more flexible by applying the device which can retool the knife mould automatically.

The material utilization rate can be improved greatly for applying the infrared ray which can ensure the location accuracy.

After locating the sheet material by infrared ray, press the start button. The sheet material will be clamped by the air cylinder and the material feeding will be operated automatically by screw rod with high accuracy.

The distance between tow cutting operation and feeding dimension can be set on the control screen and the query of material in different layer will result in dislocation and inaccurate length when feeding can be fixed out by using this machine.

3. Operation mode can be optional: manual, semi-automatic, full-automatic. Operators only need to pick up manufactured materials, thus the strength can be reduced and efficiency can be improved.
