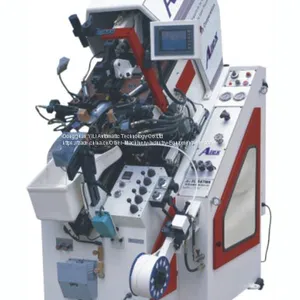

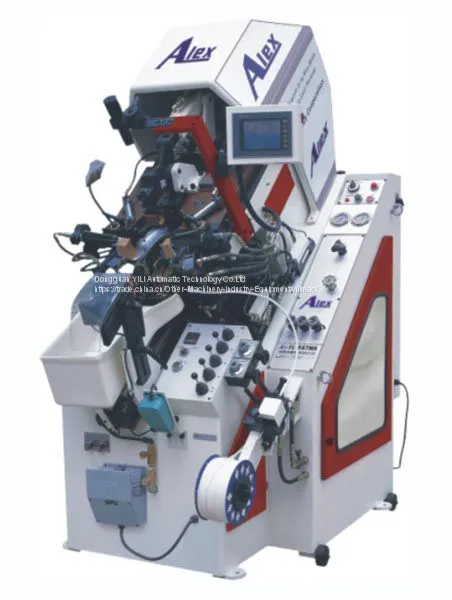

Help CenterYL-847MA 9-Pincer Computerized Automatic Toe Upper Lasting Machine With Hot Melt
Related Products
-
YL-837A 9-Pincer Hydraulic Shoe Toe Upper Lasting Machine / Shoemaking MachineNegotiableMOQ: 1 Set -
YL-807 Hydraulic Heel Seat Lasting Machine For Stitch Down Shoes / Heelpiece-machine / Heel-lasting MachineNegotiableMOQ: 1 Set
-
YL-116 Bevelling Machine With Dust Absorption / Edge Grinding Machine With Dust Collection / Roughing Machine With DustNegotiableMOQ: 1 Set
-
YL-109A Roughing Machine With Abrasive Band and Dust Exhaust SystemNegotiableMOQ: 1 Set
-
YL-109 Shoes Edge Grinding Machine With Dust Exhaust / Roughing Machine With Dust CollectorNegotiableMOQ: 1 Set
ECHNICAL FEATURES
1.The machine is equipped with an automatic cementing system. When do lasting, the insole and upper do not need manually cemented in advance, which save much labor. Moreover, the shoe will never lose cement after lasting, and make sure perfect shoes shape.
2.. With the design of special tracked toe bands, the all-around multipoint pressing ensure the upper to be evenly attached to last. Without wrinkle and get good quality.
3.The toe pad pressing is adjusted by a 2-step cylinder pressure system, which will create a perfect effect both during lasting process and final pressing.
4.Each set of pincers can be individually adjusted to their corresponding positions and is functioned with automatic balancing. Besides, an Automatic down pulling stroke can be selected and controlled according to the tension of the upper.
5.If it is necessary, after the upper being firmly clamped, the operator can manually let any set of pincers down pull or re-clamp the upper to have the best tension and attachment to last.
6. special shape and can be applied to a wider range of application.
7.The wiper is functioned with an inching adjustment system. By means of computer input of necessary lasting points, the setting of wipers routes becomes easier and faster, and the digital display is legible, which save much time.
8.The last support plate is with an optional 2-step uprising system, which makes the short upper clamping easier. Moreover, with the function of clamping pressure decrease of pincers, the incident of over pulling and breaking uppers can be avoided, save the loss caused by manual operation, material and labor cost.
9.The machine is also equipped with a cross projector, which makes the calibration between the toe and upper more convenient and also helps a new operator acquaint with the machine more easily.
10.The one-touch screen is protected by password to prevent from any unauthorized change.
11.The hydraulic system is a design of high and low pressure cycle loop, which ensures a steady oil temperature and makes every part a longer life and better steadiness. All pressure adjustment and timers are set on the outside of the machine to have machine operated and adjusted more conveniently.
Technical specifications
| Model | YL-847MA |
| Dimension | L180*W100*H195cm |
| N.W. | 1300kg |
| Power | 4kw |
| Capacity | 1800Pairs/8h |
| Hydraulic oil | 80liter |
| Pressure | 50kg/cm2 |
