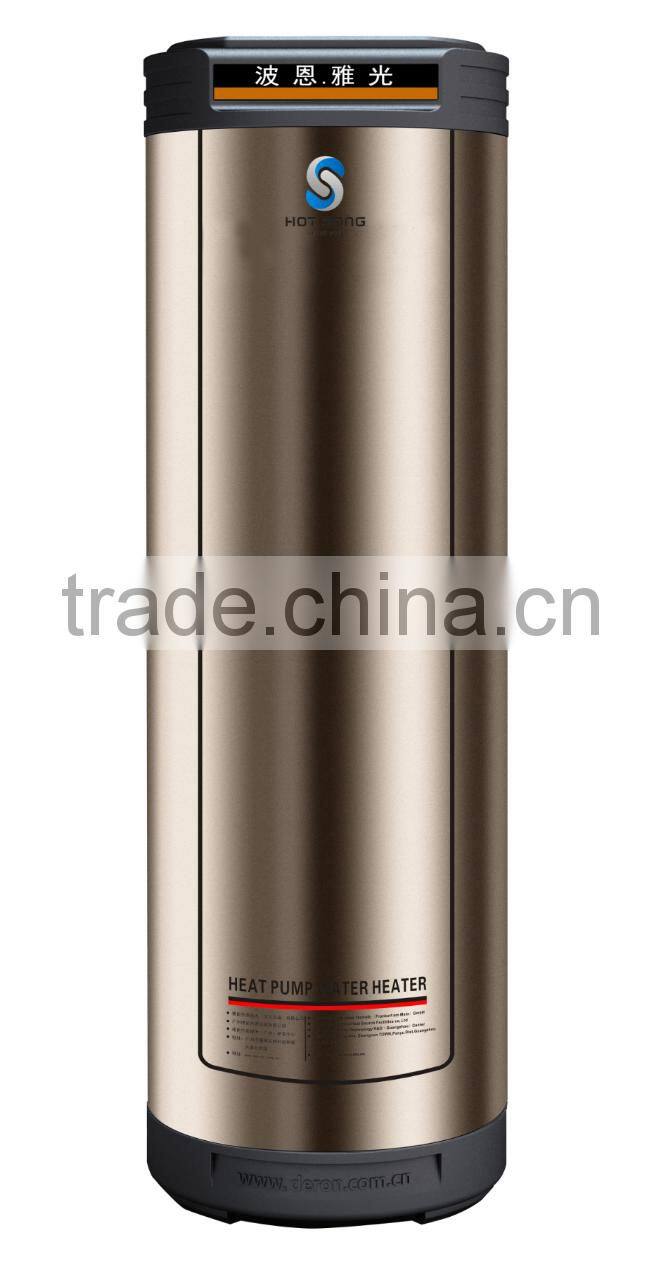

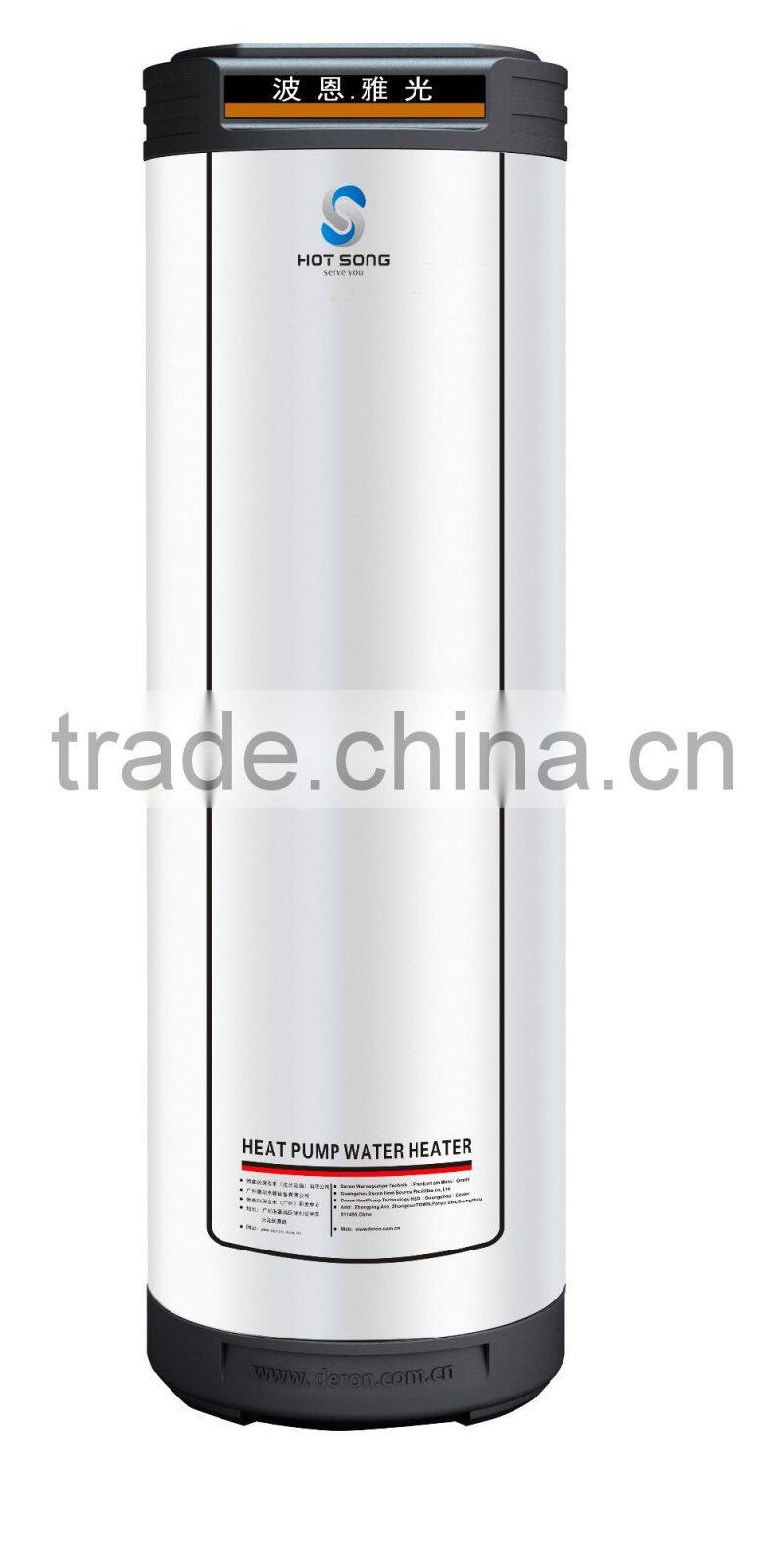

HOTSONG Residential Air-Water Heat Pump
Product Description:
Feature:
1. HOTSONG air source residential heat pump split type is designed for residential sanitary hot water of
bathroom/kitchen/barbershop,etc.

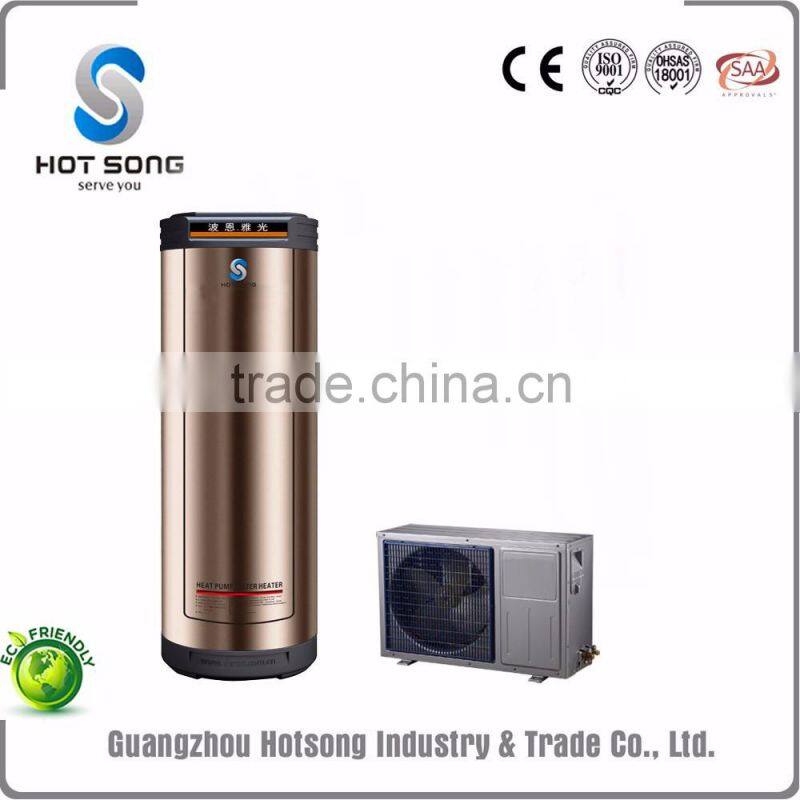

2. Compared with the other air source heat pumps, this kind of units is composed of two split parts, indoor
unit (water tank) and outdoor unit(heat pump).
3. The heating coil with refrigerant cycling is built inside the tank. Refrigerant/gas flows in the stainless
steel tube between the outdoor unit and water tank for exchanging the heat energy.
4. This unit could be installed outdoors & indoors, as floating support for compressor to reduce vibration
to the most extent and noise insulation inside the cabinet as well as noise jacket for compressor.
5. The compact design heat pump is built-in Panasonic rotary type compressor, stainless steel coil (insdie
tank), Emerson thermal expansion valve to ensure it work smoothly & efficiently.

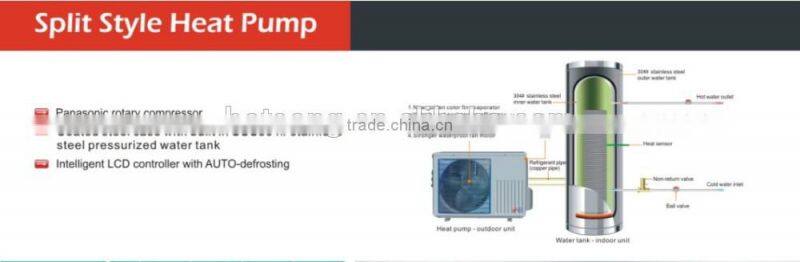

Working Principle:
Specifications:
| Model | HS-100LW/AP HS-150LW/AP | HS-150LW/BP HS-200LW/BP HS-300LW/BP | HS-300LW/CP HS-400LW/CP | HS-500LW/DP | ||
| Power Supply | V/Ph/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | |
Heating Capacity | KW | 3.4 | 4.8 | 7 | 10.8 | |
| BTU | 11601 | 16378 | 23884 | 36850 | ||
| Rated Power Input | KW | 0.85 | 1.2 | 1.8 | 2.7 | |
| Water Feed Speed | L/Hr. | 73 | 103 | 150 | 232 | |
| Refrigerant | R410A | R410A | R410A | R410A | ||
| Compressor | Type | Rotary | Rotary | Rotary | Rotary | |
| Fan | Qty | 1 | 1 | 1 | 1 | |
| Noise | dB(A) | ≤45 | ≤48 | ≤50 | ≤52 | |
| Max. Current | A | 7 | 8 | 13 | 19.5 | |
| Level Again Electric Shock | I | I | I | I | ||
| Water Proof | IPX4 | IPX4 | IPX4 | IPX4 | ||
| Max. Water Temp. | °C | 60 | 60 | 60 | 60 | |
| Operation Temp. Range | °C | -10~45 | -10~45 | -10~45 | -10~45 | |
| Heat Pump Unit | Net Weight | Kg | 30 | 34 | 40 | 55 |
| Net Size(L/W/H) | mm | 800*260*530 | 800*260*530 | 800*260*530 | 800*380*710 | |
| Water Tank | Net Weight | Kg | 25 | 35/47/65 | 65/80 | 110 |
| Net Size | mm | ∅470*1010 ∅470*1470 | ∅470*1470 ∅560*1250 ∅470*1780 | ∅470*1780 ∅700*1517 | ∅700*1870 | |
| Water Connection | G1/2" | G1/2" | G1/2" | G3/4" | ||
| Refrigerant Connection Pipes Diameter | mm | ∅6.35 & ∅9.52 | ∅6.35 & ∅9.52 | ∅9.52 & ∅12.7 | ∅9.52 & ∅12.7 | |
| Heating by Ambient Temp. (DB/WB):20°C/15°C and Water Temp. (In/Out): 15°C/55°C; | ||||||
| All above information just for your reference, please subject to the nameplate on the unit. Refrigerant is optional. | ||||||
Main Componets:

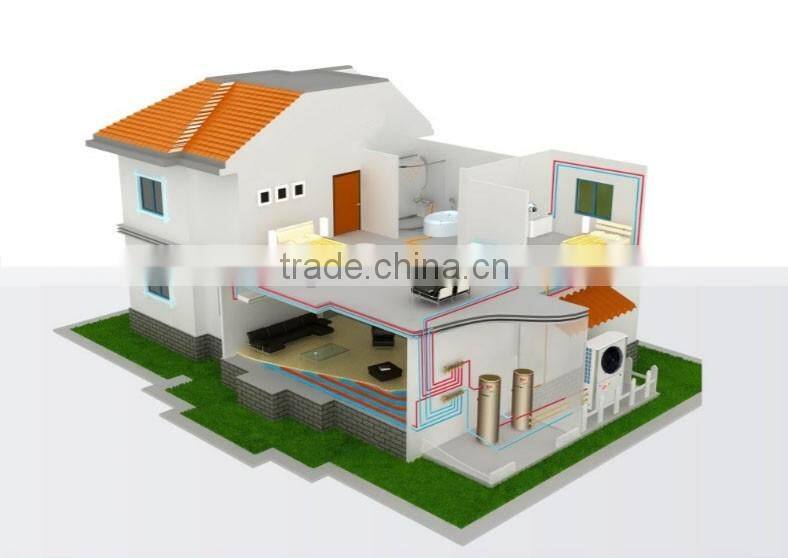

Application:
Packaging & Shipping:
Standard package: carton, plywood case with pallet.
| |
Our Services:
While you are considering
We provide free consolation on the model of heat pump system, system design, and cost esimation that can be suit for
your requirements.
Satisfying Guarantee:
18 months warranty for the residential heat pump
---High Energy Efficiency & Low Emission
Reduce energy cost and greenhouse gas emission
---Safety
Water and electricity isolation technology and comprehensive protection, like anti-freezing protection, water flow protection,
high/low pressure protection, phase sequence protection, etc.
---Convience & Economical
Modern heat pump water heaters, replacing for solar panels and electric/gas water heaters.
Can be installed where solar roof collectors are not suitable and looks beautiful.
Less electricity and running cost, an ideal upgrade from the traditional water heaters.
---Strict Quality Control
ISO industry standards.
Standard & strict manufacturing process.
Every product must be tested and double checked before package.
---Eligible for Trade & Distribution
CE,CB,CCC,WATERMARK,SAA, AUSTRALIA STANDARD, etc.
---Customer Orientation
HOTSONG provides you optimized solutions and product customization as well as globalized customer services.
