HOTSONG Air To Water Heat Pump
Product Description:
Feature:
HOTSONG air to water heat pump is designedfor the common area of ambient temperature between -10°C to 45°C, the unit is design for
domestic hot water of offering heat to the houses,or commercial building, for example, hotel, hospital, villa, etc., meanwhile, cooling function
for air conditioner is optional. HOTSONG air to water heat pump is produced under highest quality standard with international brand of components
which enables the best efficiency, durability and reliability with characteristics of competitive price and high COP that to provide a cost-effective
water heating solution.
Extraordinary Features for HOTSONG Air to Water Heat Pump:
1> Hot water output temperature up to 60°C
2> Daikin or Copeland scroll type compressor with multi-functional protectors
3> With auxiliary heating control, circulation pump control
4> With timer function
5> Adjustable defrosting, and all weather operates on varied extreme weather conditions
6> Stable water flow switch
7> With terminal for indoor thermostat, starting or standby the heat pump
8> Air exchanger (fin-coil) with hydrophilic coating
9> Low noise fan motor, 15 years lifespan
10> Emerson expansion valve, Saginomiya 4-way valve
11> Modular designing, addtional unit could be added onto to user's requirements
12> Axial type fan motor with nylon fan blades, low power consumption, low running noise, long usage life
13> Tube in tube heat exchanger produced by HOTSONG is low-fouling and easy for maintenance.
14> Anti-corrosion case: coated steel or #304 stainless steel cabinet with elegant workmanship
15> Power-saving, free-polluted, efficient & economic operation
Easy installation of air to water heat pump:
Smaller space for installation when compared with solar water heater. It just requires connection of water pipes and
electricity power supply with no special care would be taken. It will operate on its own according to the set parameters
on controller which is installed indoor at the place that easy to access and observe. The product can work individually
or compatible with solar water heater, boiler, electric geyser as supplementary in order to achieve increasing power
or retrofitting.
Specifications:

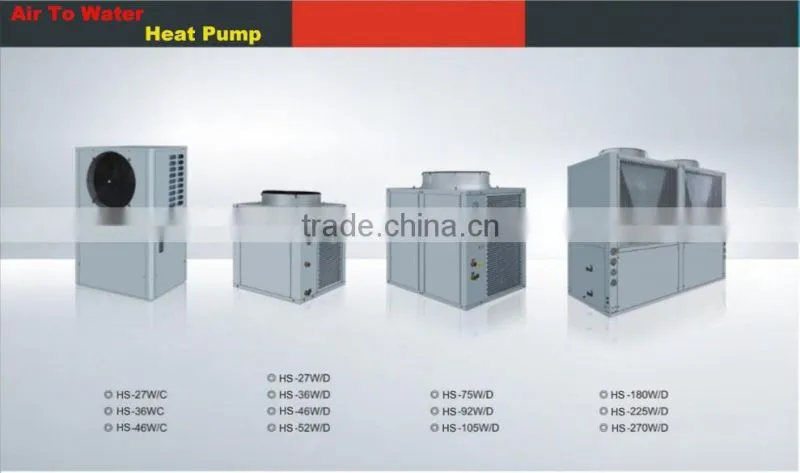

| Model |
HS-27W/C HS-27W/D |
HS-36W/C HS-36W/D |
HS-46W/C HS-46W/D |
HS-52W/D |
HS-75W/D |
HS-92W/D | HS-105W/D | HS-150W/D | HS-180W/D | HS-225W/D | HS-270W/DR | |
| Power Supply | V/Ph/Hz |
380/3/50 220/1/50 |
380/3/50 220/1/50 |
380/3/50 |
380/3/50 |
380/3/50 |
380/3/50 |
380/3/50 |
380/3/50 |
380/3/50 |
380/3/50 |
380/3/50 |
1)Heating Capacity |
KW | 10.8 | 15 | 19 | 21 | 30 | 38 | 42 | 57 | 74.5 | 83 | 110 |
| BTU | 36850 | 51180 | 64828 | 71652 | 102360 | 129656 | 143304 | 194484 | 254194 | 283196 | 375320 | |
| Rated Power Input | KW | 2.7 | 3.75 | 4.75 | 5.3 | 7.5 | 9.5 | 10.5 | 14.5 | 18.5 | 21 | 27 |
| 2)Heating Capacity | KW | 8.5 | 12 | 15 | 16.5 | 24 | 30.5 | 33 | 46 | 60 | 66 | 92 |
| BTU | 29002 | 40944 | 51180 | 56298 | 81888 | 104066 | 112596 | 156952 | 204720 | 225192 | 313904 | |
| Rated Power Input | KW | 2.4 | 3.2 | 4 | 4.3 | 6.4 | 8.2 | 8.6 | 12.5 | 16 | 17 | 25 |
| Refrigerant | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | |
| Compressor | Type | Scroll | Scroll | Scroll | Scroll | Scroll | Scroll | Scroll | Scroll | Scroll | Scroll | Scroll |
| Fan | Qty | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 2 | 2 | 2 |
| Required Hot Water Flow Rate | m3/hr. | 2.2 | 3.2 | 4 | 5 | 6 | 8 | 9.6 | 12 | 16 | 20 | 24 |
| Water Connection | G1" | G1" | G1" | G1" | G1-1/4" | G1-1/4" | G1-1/4" | G2" | G2" | G2-1/2" | G2-1/2" | |
| Noise | dB(A) | ≤56 | ≤58 | ≤58 | ≤58 | ≤60 | ≤60 | ≤60 | ≤62 | ≤64 | ≤65 | ≤65 |
| Max. Current | A | 7.5 | 10 | 13 | 15 | 21 | 25 | 28.5 | 37 | 49 | 62 | 73.5 |
| Max. Water Output Temp. | °C | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Water Source Temp. Range | °C | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 |
| Net Weight | Kg | 100 | 120 | 140 | 165 | 260 | 270 | 295 | 495 | 622 | 755 | 893 |
| Net Size (L/W/H) | mm |
680*545*1055 770*690*860 |
755*595*1490 800*800*1000 |
755*595*1490 870*830*970 |
800*800*1125 | 1200*920*1125 | 1200*920*1225 | 1200*970*1425 | 2080*1300*1680 | 2200*1135*2150 | 2200*1300*2150 | 2200*1300*2150 |
| 1>Heating by Ambient Temp. (DB/WB):20°C/15°C and Water Temp. (In/Out): 15°C/55°C; | ||||||||||||
| 2>Heating by Ambient Temp. (DB/WB):7°C/6°C and Water Temp.(In/Out): 30°C/35°C; | ||||||||||||
| All above information just for your reference, please subject to the nameplate on the unit. Refrigerant is optional. | ||||||||||||
Main Componets:

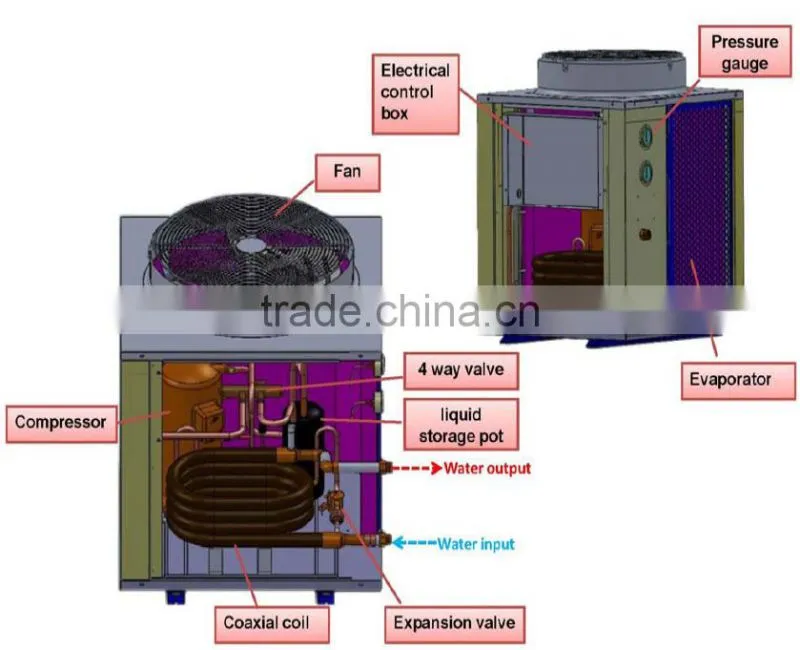

Inner Structure:
Packaging & Shipping:
Standard package: carton, plywood case with pallet.
|
|

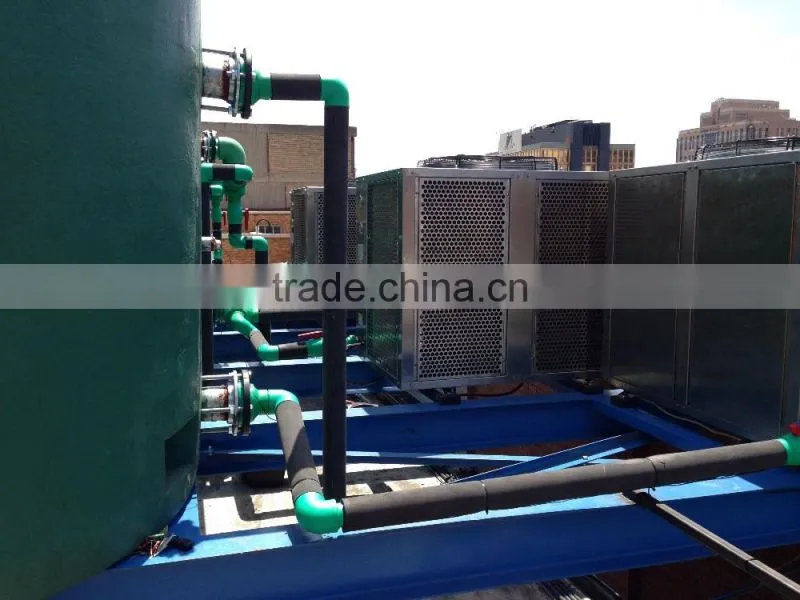

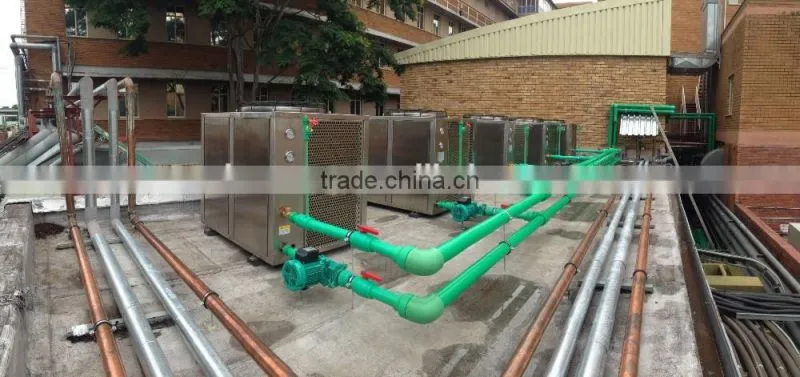

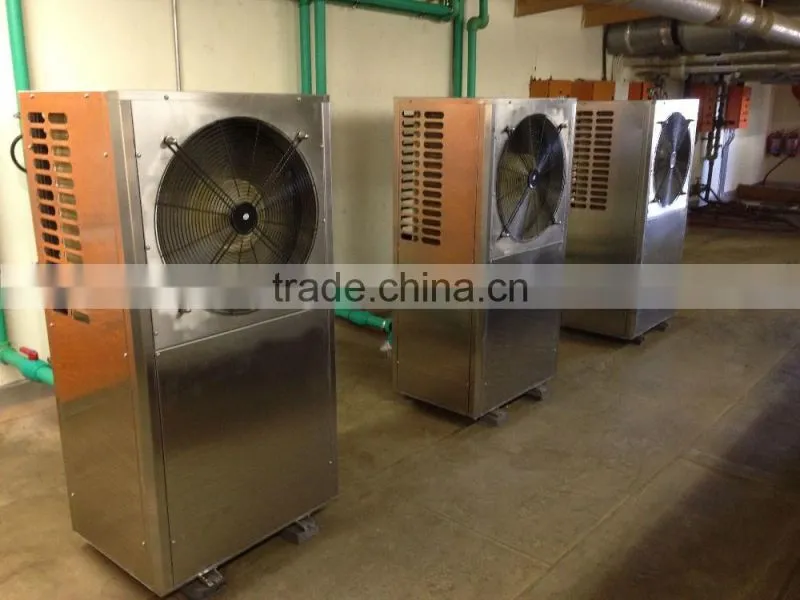

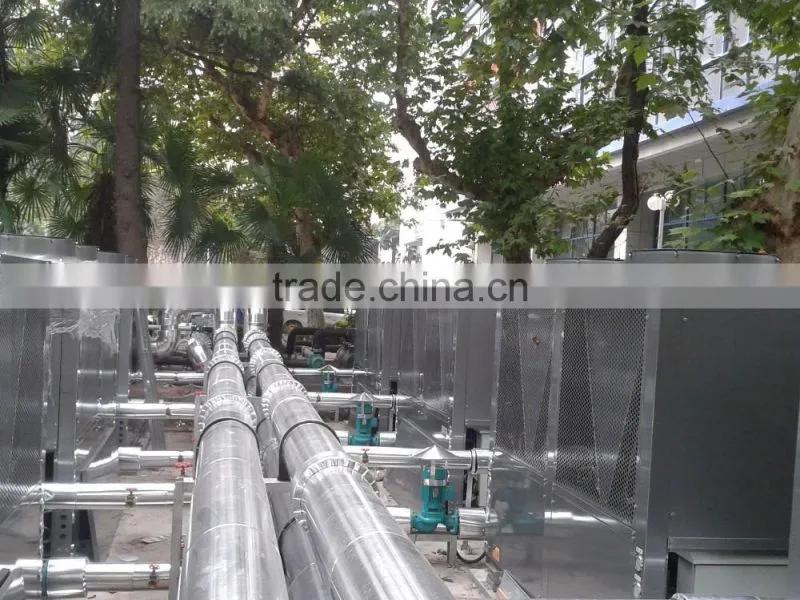

Installation Views:
|
|
|
|
Our Promise:
---High Energy Efficiency & Low Emission
Reduce energy cost and greenhouse gas emission
---Safety
Water and electricity isolation technology and comprehensive protection, like anti-freezing protection, water flow protection,
high/low pressure protection, phase sequence protection, etc.
---Convenience & Economical
A perfect substitute for solar panels, electric & gas water heaters.
Can be installed where solar roof collectors are not suitable and looks beautiful.
Less electricity and running cost, an ideal upgrade from the traditional water heaters.
---Strict Quality Control
ISO industry standards.
Standard & strict manufacture process.
Every product must be tested and double checked before package.
---Eligible for Trade & Distribution
CE,CB, CCC, WATERMARK, SAA, AUSTRALIA STANDARD,etc.
---Customer Orientation
HOTSONG provides you optimized solutions and product customization as well as globalized customer services.
---Satisfying Guarantee
18 months warranty for air-to-water heat pumps and water-to-water heat pumps, and 24 months special for swimming
pool heat pumps.
