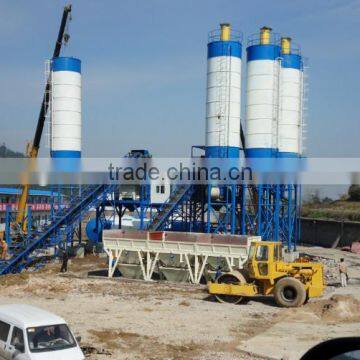

HZS120 german concrete readt mixing plant
1. HZS120 german concrete ready mixing plant introduction
.
Specifications
The concrete plant has compact structure and relible performance.
The main technical characters: 1. Germany technology and CO-NELE mixer make the speed of mixing faster and the quality of concrete better.
2. The control software is developed by Sauter company in Germany and Co-nele Company, has the better performance and higher reliability.
3. The technology of feeding and auto-deducting have gained the national patent, which ensures that the dynamic weighing precision coincides with the national standard.
4. Fully automatic computer control and highclass weighing meter make the the fast calculating and high weighing precision.
5. Electric elements of France Schneider company, industrial control computer of Taiwan Yanxiang company and the advanced manufacturing technology ensures the stability and reliability of the system.
6. Streamline design of control panel with condition indication and human-based design make the operation simple and management easier.
7. Four-picture long-distance supervisory and control make the mode of operation clearly.
8.Modulization design makes transport, installation and debugging easier.
9. With power-off protection when opened the door of service trunk, the maintenance is more safe.
10. The main building and the aggregate conveying system are complete shut-off structure, the effect of de-dusts exceeds the National standard.
HZS120 german concrete ready mixing plant main technical parameter
|
body |
model |
HZS120 |
HZS80 |
HZS90 |
producttion(m3/h) |
120 |
80 |
90 |
|
Discharge height (m) |
3.8 |
3.8 |
4 |
|
cycle(s) |
65 |
65 |
60 |
|
Overall dimension(mm) |
35220×9940 |
31085×10048 |
17330×22140 |
|
Overall power(kw) |
200 |
139 |
175 |
|
mixer |
type |
JS2000 |
JS1500 |
JS1500 |
batching |
type |
PLD2400 |
PLD2400 |
PLD3200 |
|
Air flow system |
Air cair compressor
|
HTA-100 |
HTA-100 |
HTA-100 |
Rated air displacement(MPa) |
1.0 |
1.0 |
1.2 |
|
Air displacement(m3/min) |
1.2 |
1.2 |
1.2 |
|
Motor power(kw) |
5.5 |
11 |
11 |
|
Weighing system |
Aggregate weighing accuracy |
±2% |
±2% |
±2% |
Cement weighing accuracy |
±1% |
±1% |
±1% |
|
Water weighing accuracy |
±1% |
±1% |
±1% |
