Emulsifier

  Powder Liquid Mixer  uses a high performance powder suction pump that vacuum conveys from 3 to over 400 lbs/minute of any powder or solid, including hard to handle gums, starches and carbomers.

The Powder Liquid Mixer   combines the suction capability of a “vacuum pump”, with the wetting out and shearing capabilities of a high speed emulsifier, all within a user friendly, ergonomic package.

Powder is fed into the hopper from bags as shown on the cover, or can be directly conveyed from the source through a wand attachment, bag dump, or even a bulk delivery system.

Powder bridging or rat holing is eliminated by the combination of the suction pump creating a constant vacuum within the flow stream, aided by a mechanical vibrator for the more challenging ingredients.

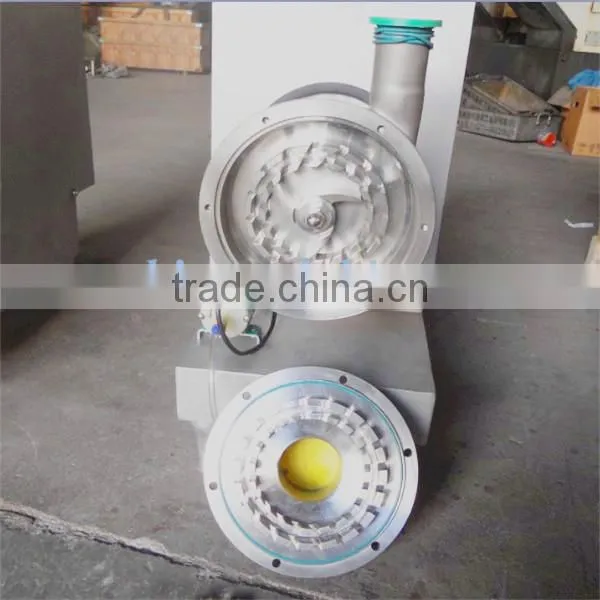

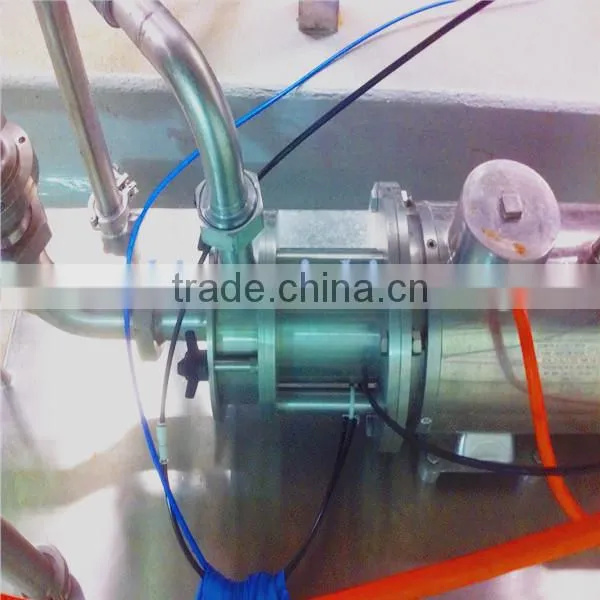

Once powder is sucked in through the pump, instantaneous fluidization of the powder begins, and this slurry is quickly pumped through our DynaShear inline emulsifier, providing droplet and soft particle size reduction down to 4 to 5 microns upon exiting the unit.

Powder feed rate is controlled with regulating valves on the inlet, insuring that sticky gums, as well as free flowing granules, disperse quickly and at the proper concentrations to prevent product slugs or premature hydration.

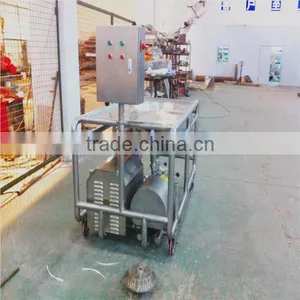

While many ingredients can be 100% dispersed with one pass, the P&L MIXER pump and skid can be configured on a recirculation loop for multiple passes, with the DynaShear on or off. A single P&L MIXER skid can also be used to feed multiple tanks for holding and suspending product prior to filling or packaging.
