Zoomlion Hot Sale Diesel Concrete Pump for Sale India

Name: Zoomlion Hot Sale Diesel Concrete Pump for Sale India
Brand: DASWELL
SKU: 139872679
Availability: InStock

Zoomlion Hot Sale Diesel Concrete Pump for Sale India thumbnail-1

Zoomlion Hot Sale Diesel Concrete Pump for Sale India photo-1

US$ 19,000 - 60,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Power Type:

Diesel

Place of Origin:

Henan, China

Contact Supplier Request Quote Chat Now

Henan Daswell Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port of China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Power Type Diesel

Place of Origin Henan, China

Brand Name DASWELL

Model Number CPD60S-13

Power(W) 118kw

Weight 5300kg

Certification CE,ISO 9001

Warranty 12 months

After-sales Service Provided Overseas service center available

Specifications

1.Overall hydraulic commutation
2.Hopper capacity 600 L
3.HAWE or Kawasaki main oil pumps
4.CE certificate

Technical Parameters

CPD Series Diesel Engine Concrete Pump
Item			S VALVE CONCRETE PUMP
Item			Unit	CPD60S-13	CPD60S-16	CPD80S-13	CPD80S-16
Theoretic concrete delivery volume	Low pressure		m3/h	60	60	80	80
Theoretic concrete delivery volume	High pressure		m3/h	36	35	47	46
Theoretic concrete delivery pressure	Low pressure		Mpa	7.6	9.6	7.6	9.6
Theoretic concrete delivery pressure	High pressure		Mpa	12.5	15.7	12.5	15.7
Hydraulic pressure			Mpa	32	32	32	32
Diesel engine(can be selected)			Original VOLVO/DEUTZ imported from Germany
Main oil pump			Original German Hawe, Rexroth and Japanese Kawasaki
Main cylinder dia/pole dia*stroke			mm	125/80*1650	140/90*1650	125/80*1650 (1800)	140/90*1650 (1800)
Diameter of delivery cylinder			mm	200
Diesel engine power			Kw	118	145	145	175
Fuel consumption			g/Kwh	218	223	223	228
Capacity of hydraulic oil tank			L	500
Max. pumping distance		Vertical	m	180	250	180	250
Max. pumping distance		Horizontal	m	700	1000	700	1000

Brief Introduction

CPD series diesel engine mini concrete pumps adopt original VOLVO and LOVOL diesel engines to provide power for the machines. This series of small concrete pumps are widely used in engineering projects, such as residential building, bridge, tunnel, etc. and this concrete pump trucks are especially suitable for areas with power shortage. Daswell is dedicated to being the most professional concrete pump supplier. You can find many small concrete pumps for sale here. We are looking forward to your further enquiries.

Features

1. Adopt original VOLVO and LOVOL diesel engines as the power of pumps;

2. Suitable for areas with power shortage;

3. The full hydraulic system can extend component life, improve equipment reliability, and reduce the failure rate and maintenance costs;

4. The S tube valves are cast into shape with high manganese steel and has the dual advantages of anti-high pressure and anti-wearing.

5. The seal components in big cylinder adopt the products of American Parker.

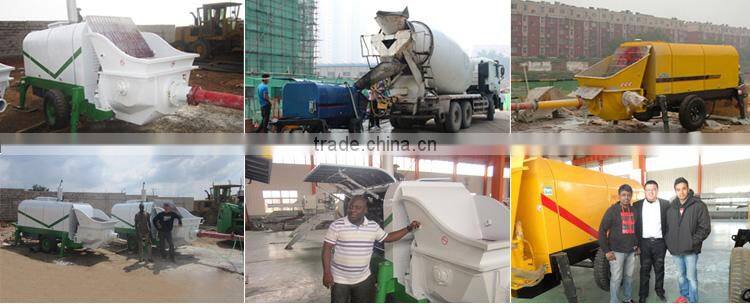

Working Site

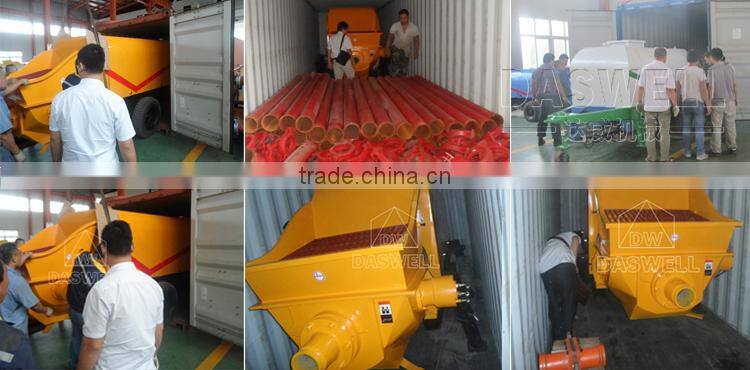

Packaging and Shipping

Our Services

About Us

Daswell Machinery is a company specializing in the research, design and production of construction for nearly 30 years.Our main products are construction machinery, such as concrete mixer, concrete batching plant, concrete pump, and so on.

With several researching and producing bases in China, we can provide the powerful technical service and upper quality machinery for the clients all over the world. All of our products are produced according to the International Quality Standards, such as CE from Europe. The management of our company is strictly operated by the ISO 9001 quality management system.
And also,we supply the famous brand concrete machinery and related parts,such as SICOMA,and WAM Brand.We have supplied so much famous brand machinery and parts to many countries of the world.
All of our Daswell people here will try our best to bring more value for our friends and partners from all of the world, by our top class machinery and service, all the time!
