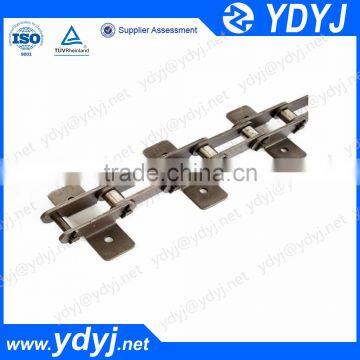

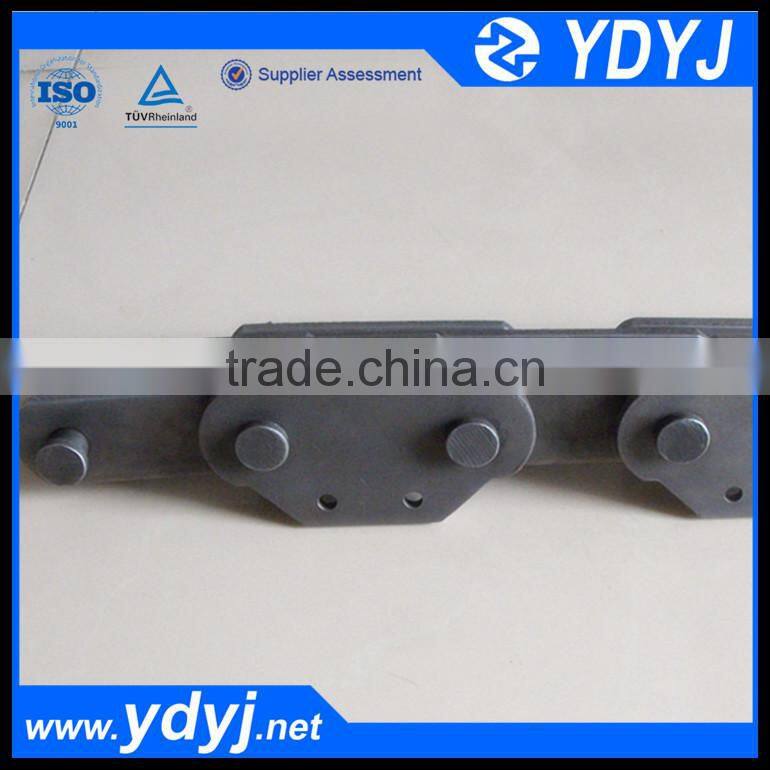

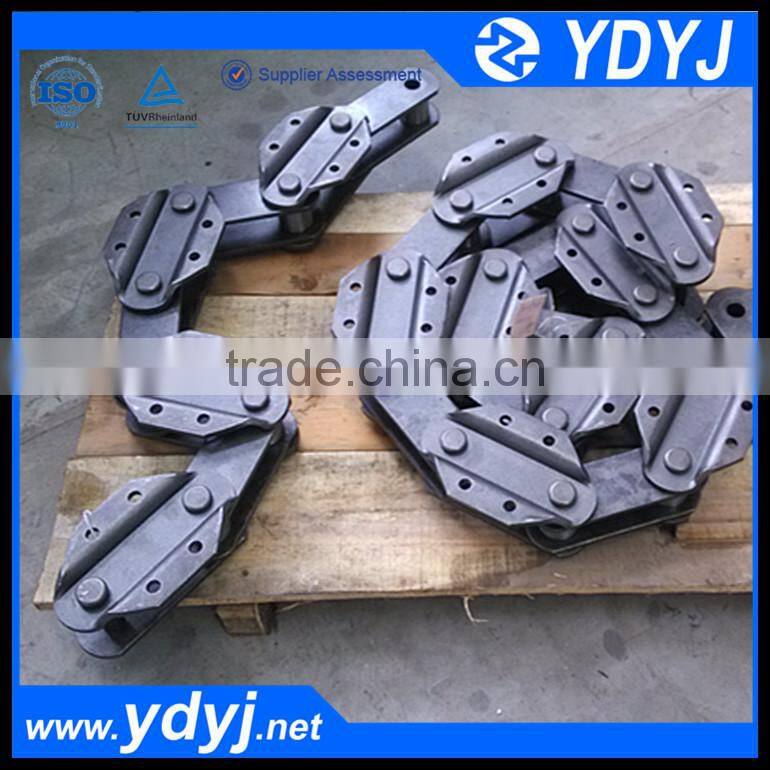

YIJI brand wear resistant Sleeve roller chain, bucket elevator chain
Description
1. Sleeve roller chain with Wear resistance with alloy steel.
2. Flanged structure and bolt connection between sections.
3. Strong tensile strength.
4.High efficiency.
Application scope
This sleeve roller chain is widely used in power plant, metallurgy, cement, chemical, light industry and so on. It is used for lifting coal cinder ,piece coal, crushed stone, mineral stone, egg stone, dry and bulk and fluidity power, granular and block material and so on.
Operating principle

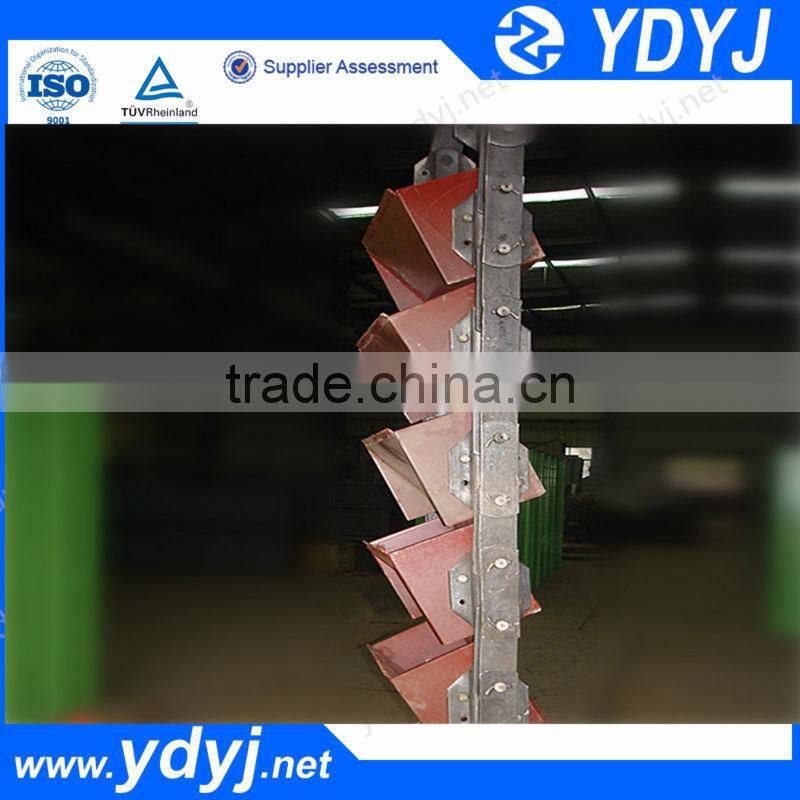

When the driving device start working , sleeve roller chain drives the puley to make the chains with buckets to do the circular movement from the below of the tail to the top of the head The head section has outlet and the tail section has inlet.
The bucket is filled with material and run to the head section, then the material is thrown out from the outlet under the action of centrifugal force according to the parabolic design.With the running, the empty bucket is back to the below tail section and be filled material from the inlet again,then be lifted up to do parabolic discharge movement . So this cycle finish the vertical transport of materials.
components
Technical parameter
Equipment Type |
TB-NE250 |
TB-NE315 |
TB-NE400 |
TB-NE500 |
TB-NE630 |
TB-NE800 |
TB-NE1000 |
|||
Bucket type |
J |
T |
||||||||
Capacity(m3/h) |
15-25 |
32-46 |
50-75 |
84-120 |
35-190 |
216-310 |
340-480 |
|||
Bucket |
Width(mm) |
252 |
315 |
400 |
500 |
630 |
800 |
1000 |
||
Capacity (L) |
3 |
6 |
12 |
25 |
50 |
100 |
200 |
|||
|
Bucket distance(mm) |
200 |
250 |
320 |
400 |
500 |
630 |
||||
Chain |
Pitch (mm) |
100 |
125 |
160 |
200 |
250 |
315 |
|||
Number |
1 |
2 |
||||||||
Broken load of chain(KN) |
112/160 |
160/224 |
224/315 |
315/450 |
450/630 |
630/900 |
||||
Diameter of sprocket(mm) |
386.37 |
482.96 |
618.19 |
772.74 |
965.92 |
1217.06 |
|
|||
Bucket speed (m/s) |
0.5 |
|||||||||
driving shaft speed (rpm) |
24.71 |
19.78 |
15.45 |
13.26 |
9.89 |
7.85 |
||||
Packaging & Shipping.
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements).
3. It is suitable for long distance ocean transportation.
Please tell us the following technical parameter before inquiry:
Q: What 's the material of the chain?
Q:What's the pitch of the chain?
