Specifications
1.High wear resistance and high performance.
2.Over 14 years production experience
3.ISO2001.
4.One Year Warranty

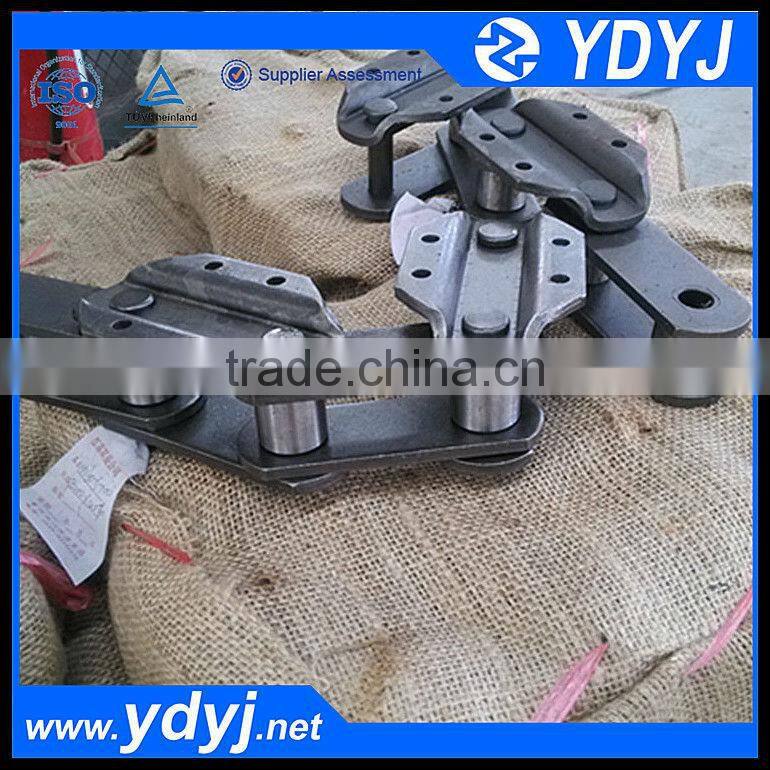

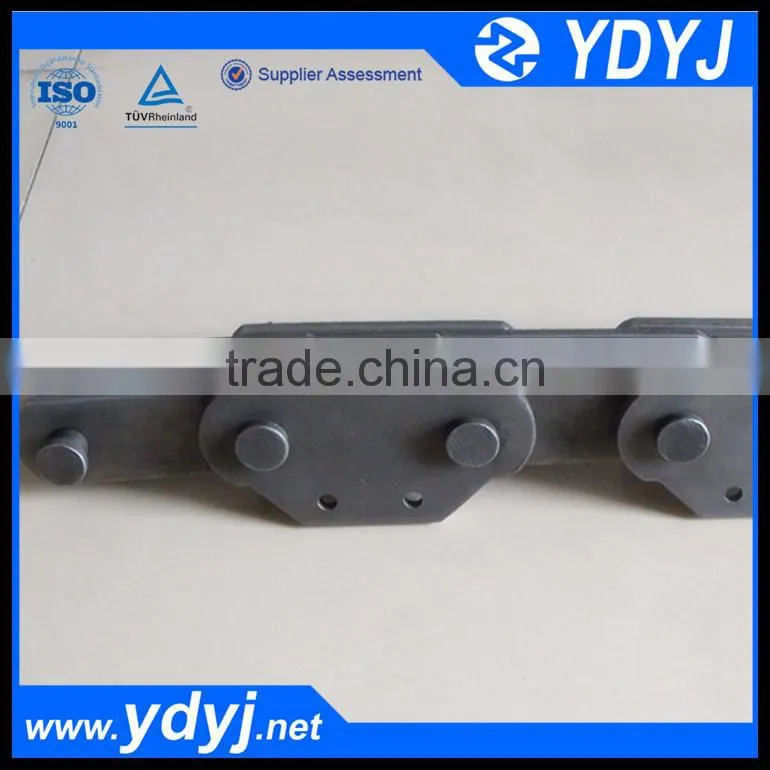

Sleeve roller chain for bucket elevator
Application scope
Bucket chain is widely used in power plant, metallurgy, cement, chemical, light industry and so on. It is used for lifting coal cinder ,piece coal, crushed stone, mineral stone, egg stone, dry and bulk and fluidity power, granular and block material and so on. The material density is not more than 2 t/m3, the site temperature is not more than 2500C.

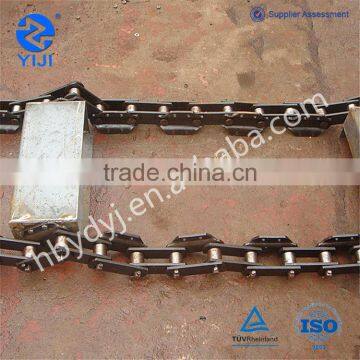

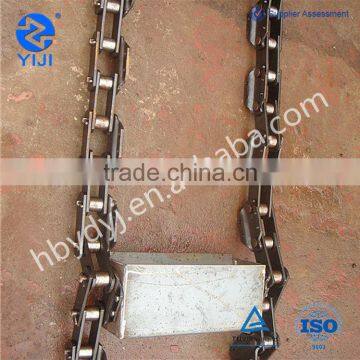

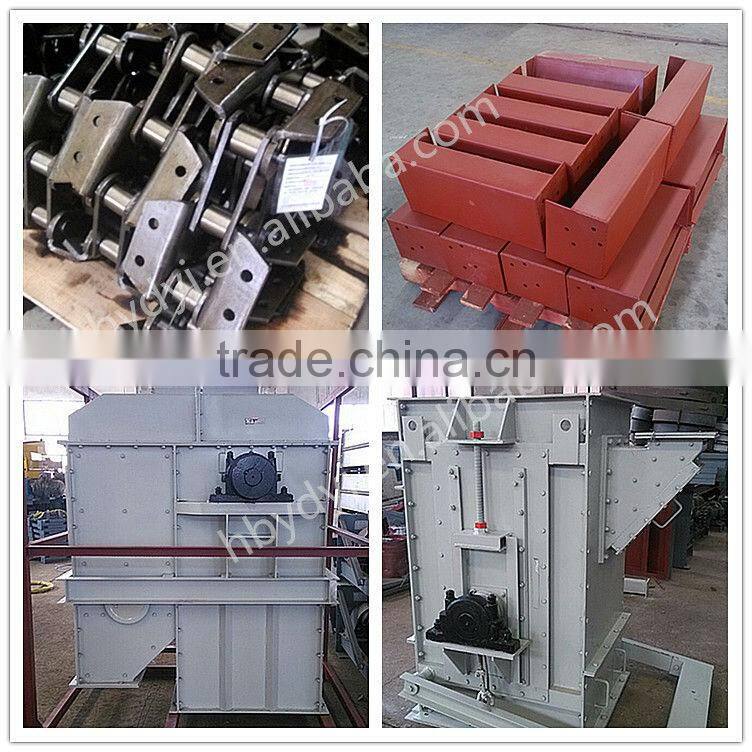

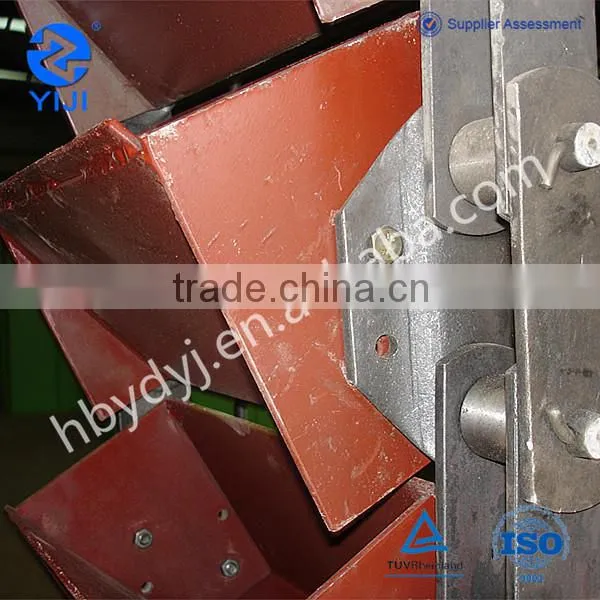

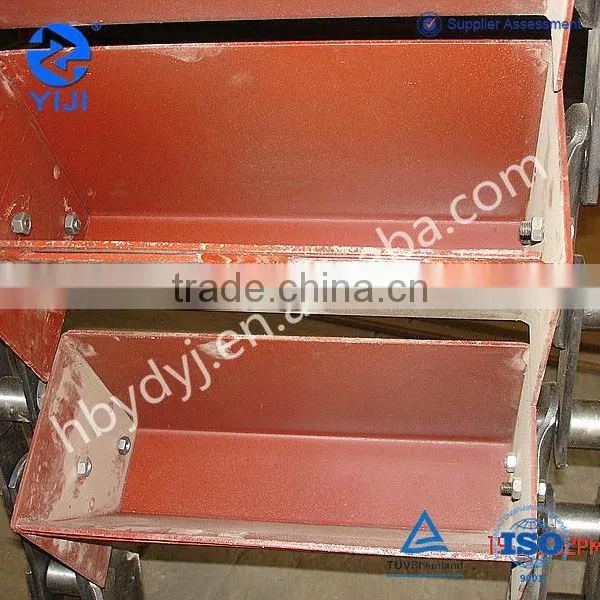

Bucket chains parts

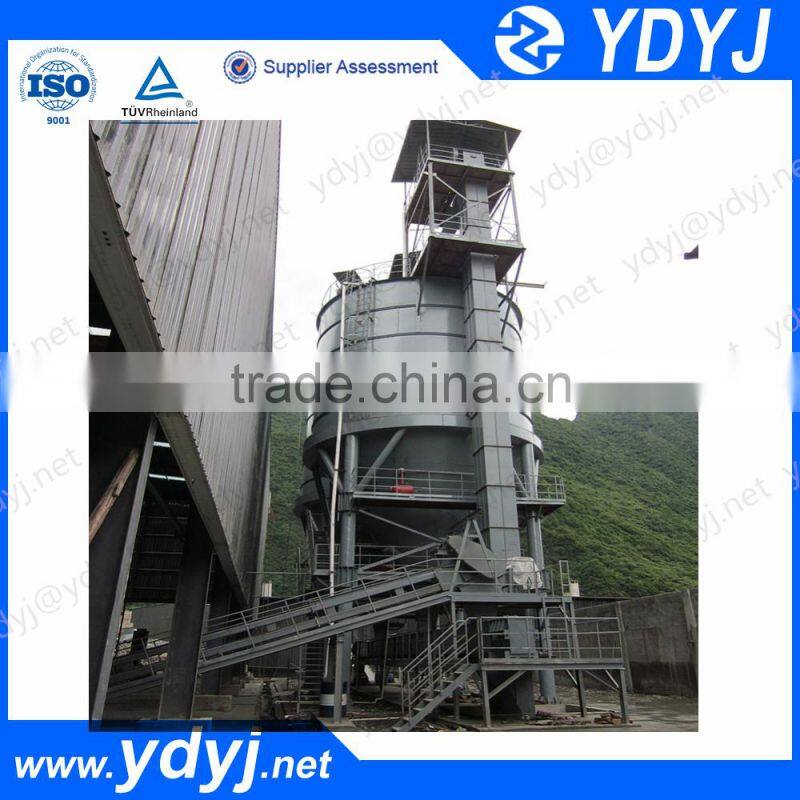

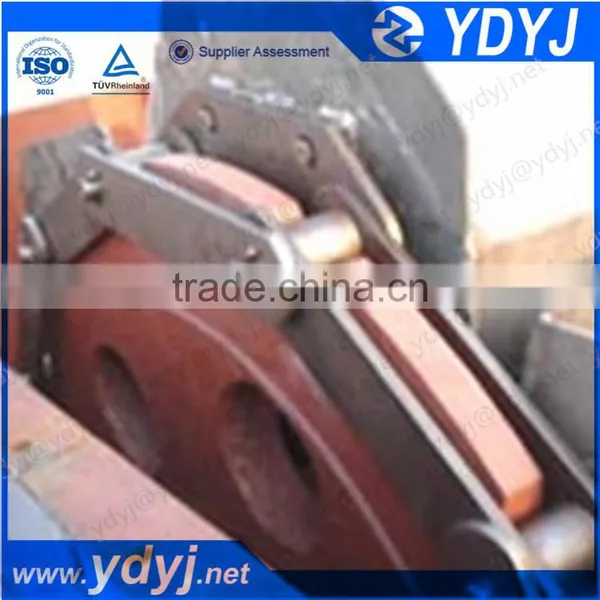

Bucket chain site picture
Technical parameter
Equipment Type |
TB-NE250 |
TB-NE315 |
TB-NE400 |
TB-NE500 |
TB-NE630 |
TB-NE800 |
TB-NE1000 |
|||
Bucket type |
J |
T |
||||||||
Capacity(m3/h) |
15-25 |
32-46 |
50-75 |
84-120 |
35-190 |
216-310 |
340-480 |
|||
Bucket |
Width(mm) |
252 |
315 |
400 |
500 |
630 |
800 |
1000 |
||
Capacity (L) |
3 |
6 |
12 |
25 |
50 |
100 |
200 |
|||
|
Bucket distance(mm) |
200 |
250 |
320 |
400 |
500 |
630 |
||||
Chain |
Pitch (mm) |
100 |
125 |
160 |
200 |
250 |
315 |
|||
Number |
1 |
2 |
||||||||
Broken load of chain(KN) |
112/160 |
160/224 |
224/315 |
315/450 |
450/630 |
630/900 |
||||
Diameter of sprocket(mm) |
386.37 |
482.96 |
618.19 |
772.74 |
965.92 |
1217.06 |
|
|||
Bucket speed (m/s) |
0.5 |
|||||||||
driving shaft speed (rpm) |
24.71 |
19.78 |
15.45 |
13.26 |
9.89 |
7.85 |
||||

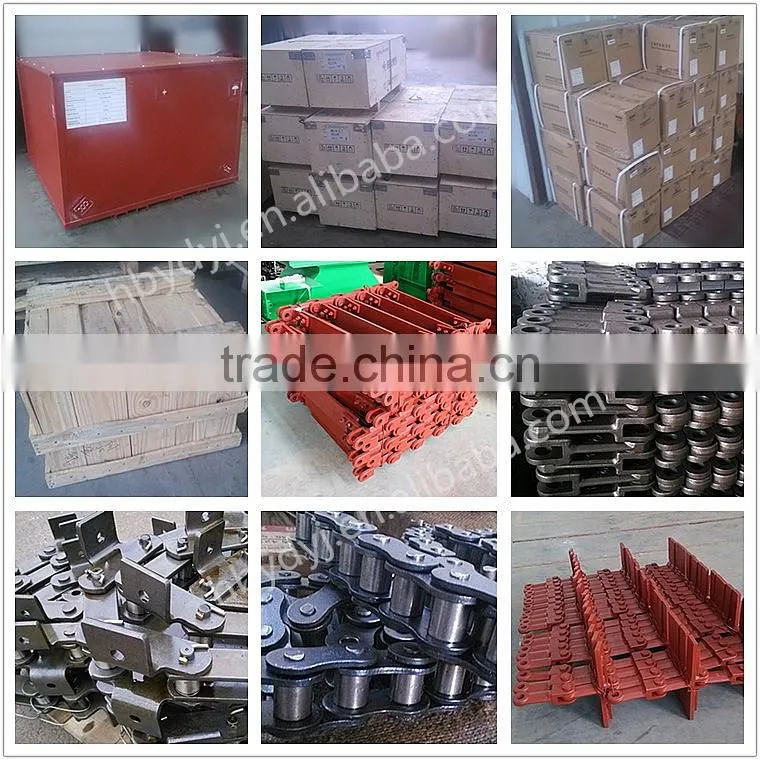

Packaging & Shipping.
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements).
3. It is suitable for long distance ocean transportation.
Our services
I. Engineers abailable to service machinery overseas.
2. Provide installation guide, equipment manuals, operation and repair training.
3. Provide random spare parts.
FAQ
Please tell us the following technical datas before ordering:
Q: What 's the material will be lifted?please tell us more material features.
Q:What's the type or dimension of bucket chain?
Q:What's the material of bucket chain do you want?
Company qualification certificate
Company advanced processing equipments
Company other informations
Welcome to consult us for more information.
