Product Name:

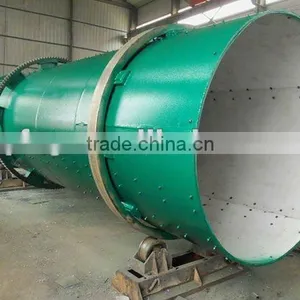

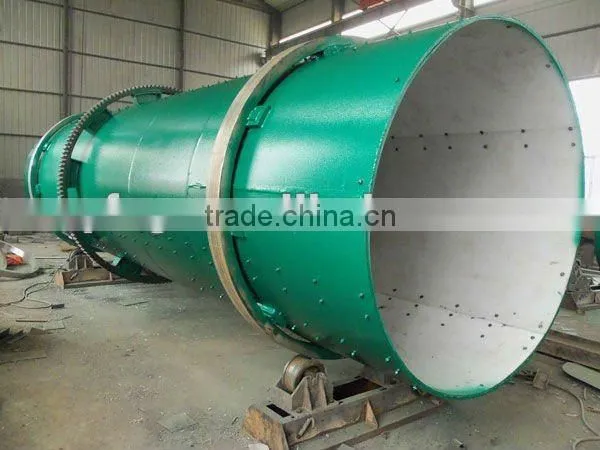

Drum Granulator
Application of the Drum Granulator:
Drum Granulator is one of the key equipment in fertilizer industries, used in cold, hot granulation and large-scale production of high, medium and low concentration compound fertilizer.
The main features of Drum Granulator:
(1)rate of ball-becoming up to 70%, have a small amount of returned material, expected, small granularity of returned material, can be re-granulation.
(2)steam heating, improve material's temperature, so that have lower moisture when material change into the ball, improve dryness efficiency.
(3)use rubber plastic for lining, raw materials difficult to stick cylinder, and played the role of anti-corrosion, keep warm.
(4)high yield, little power consumption, low maintenance costs.
Export country of the Drum Granulator:
India, Vietnam, Kazakhstan, Mongolia, Ecuador, Iran, Pakistan, Australia, the Middle East and other countries and areas.
Working Principle of the Drum Granulator:
The main working method is aggregate wet granulation. Through a certain amount of water or steam, so that basic fertilizer mix wet in tube body after the full chemical reaction. Under a certain liquid conditions, in virtue of rotary exercise of the rotating cylinder, so that material particles have a extrusion stress, reunite to ball.
Main Technical Parameters of the Drum Granulator.
| Type | Cylinder | Capacity | Within the rubber type | Motor | Overall dimension (L × W × H) | ||||
| Inner diameter | Length | angle of dip | Rotary Speed | Type | Power | ||||
| m | mm | mm | (°) | r/min | t/h | kw | mm | ||
| Φ1.2×3.5 | 1200 | 3500 | 2.5 | 18.07 | -3 | Mold lining type Or Rubber lining type |
Y160M-6 | 7.5 | 6260×3070×2129 |
| Φ1.4×4 | 1400 | 4000 | 15.05 | -5 | Y160M-4 | 1 | 4600×2810×2300 | ||
| Φ1.6×4 | 1600 | 3800 | 12 | -7 | Y160L-6 | 11 | 5190×3055×3100 | ||
| Φ1.8×6 | 1800 | 6000 | 12.39 | -10 | Y200L1-6 | 18.5 | 8000×3335×3350 | ||
| Φ2.0×7 | 2000 | 7000 | 10.8 | -14 | Y250M-8 | 30 | 11000×3900×3750 | ||
| Φ2.0×8 | 2000 | 8000 | 10.8 | -15 | Y250M-8 | 30 | 12000×3900×3750 | ||
| Φ2.0×10 | 2000 | 10000 | 10.8 | -16 | Y250M-8 | 30 | 14000×3900×3750 | ||
| Φ2.4×10 | 2400 | 10000 | 9-10.9 | -30 | YR280M-4 | 75 | 14000×4742×4332 | ||
...
