Sand Making Line-pcl Vertical Shaft Impact Crusher,sand Maker

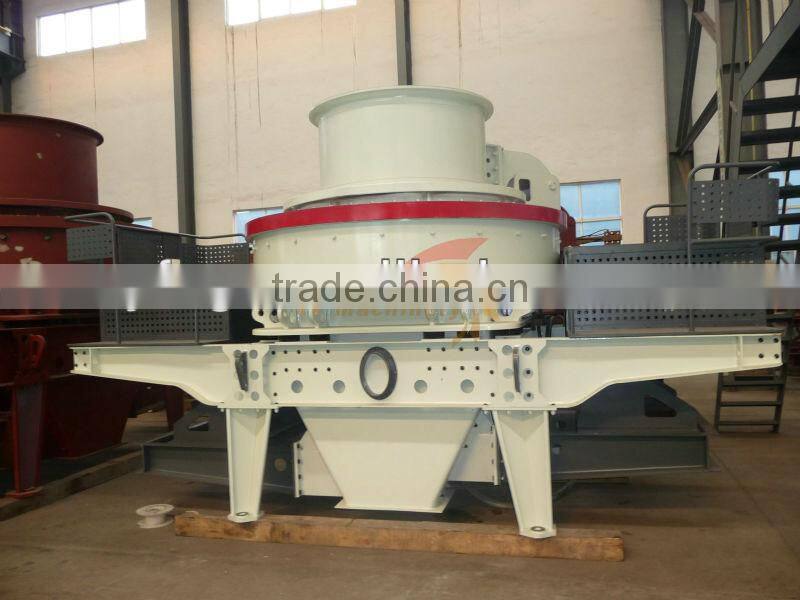

Sand Making Line-pcl Vertical Shaft Impact Crusher,sand Maker thumbnail-1

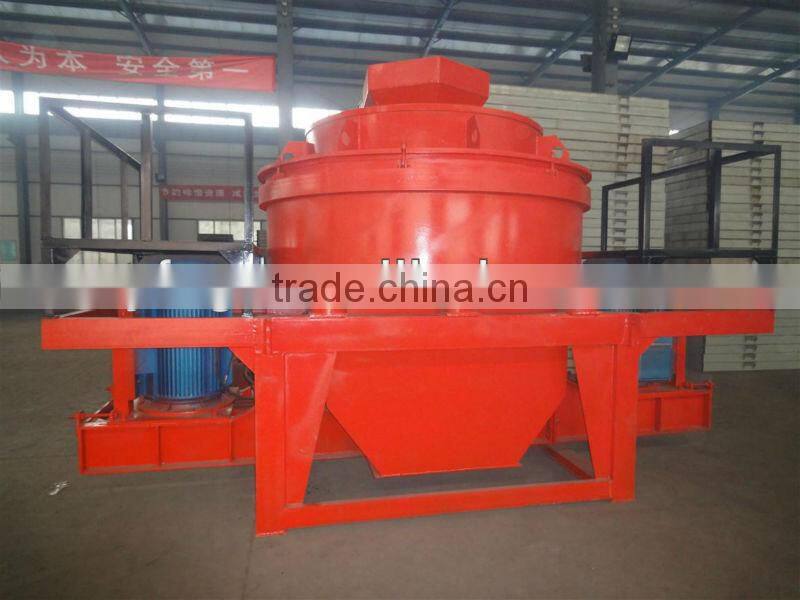

Sand Making Line-pcl Vertical Shaft Impact Crusher,sand Maker photo-1
US$ 3,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Impact Crusher, PCL
Application:
metal and nonmetallic minerals etc.
Contact Supplier Request Quote Chat Now
Zhengzhou Yufeng Heavy Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Impact Crusher, PCL
Application metal and nonmetallic minerals etc.
Motor Type AC Motor
Power(W) 30/45/55/110/132/160
Capacity(t/h) 10-200t/h
Place of Origin Henan, China
Brand Name yufeng
Model Number PCL 600/PCL750/PCL900/PCL1050/PCL1250/PCL1350
Weight 5.6/7.5/12/16/22/26
Certification ISO9001:2008
Warranty 2 years(except the parts)
After-sales Service Provided Engineers available to service machinery overseas





Sand making machine Description

Yufeng vertical shaft impact crusher also know as sand making machine is applied widely for the powder process of mineral product including mental and non-metal ore, fireproof material, bauxite, diamond dust, glass raw materials, architectural materials, artificial sand and all kinds of metal ore materials, especially which has more advantages than any other machines in processing the more and most hard materials.

Sand making machine's usage

This series of sand making machine has a wide range of uses, Its performance has reached the international leading level in sand-making equipment lines. It is the most effective, practical and reliable sand making equipment. The sand making machine is particularly applicable to the production of building sand ( bluestone, limestone, bank gravel, rocks, granite and many kinds of raw matierials to make building sand), abradant, refractories, cement, sand, emerry, slag powder, copper ore, iron ore, gold ore, concrete aggregate, asphalt aggregate and many kinds of hard, brittle material's fine crushing and secondary crushing. It is a high efficient and energy-saving equipment for sand stone crushing. It can save 50% energy than the traditional machine. It is the most advanced sand making equipment in the world

Feature and Benefits:

1. Simple structure, low cost.
2. High efficiency and low consumption.
3. Primary and second crushing capacity.
4. More and most hard materials can be crushed.
5. Cubic shaped final product.
6. Little noise and dust pollution.
7. Convenient performance, maintenance, installation.

Working Principle:

The Whole vertical shaft impact crusher including feed hopper, classifier, whirlpool cavity, impeller, main bearing assembly base, transmission device and motor etc.
Operation principle is as follows: the materials enter the crusher through feeder hopper, which is divided into two parts, one part through the middle of classifier entering into the rotating impeller at high speed, then accelerated, whose speed can reach hundreds of acceleration, then is shot through the tunnels around the impeller by the speed of 60-75 meter/second. First the materials will impact with some materials fallen around classifier, then impact on the whirlpool cavity's scaleboard together, then will be rebounded and impact on the top of the whirlpool cavity, then changes its direction and goes down, forms continual material layers with the materials shot from the impeller. Therefore some materials will be impacted, crusher, milled twice or more times in the whirlpool cavity, then crushed materials will be excluded through the bottom discharging hole. This can from a closed circulation through the circular classifier system; in general, materials can be crushed into 20 mesh through thrice circulation. Airflow self-circulation in the whirlpool cavity can eliminate the dust pollution well.





Main Technical Parameters

Model

speed of impeller (r/min)

Max feed size (mm)

Power (kW)

Weight (including motor) (t)

Capacity (t/h)

Dimensions (mm)

PCL-600

2000-2600

30

2×30

5.6

10-30

2800×1550×2030

PCL-750

1600-2100

35

2×45

7.5

30-50

3300×1800×2440

PCL-900

1300-1700

40

2×55

12

50-80

3750×2120×2660

PCL-1050

1100-1450

45

2×110

16

70-120

4480×2450×2906

PCL-1250

950-1200

45

2×132

22

80-150

4563×2650×3176

PCL-1350

900-1200

50

2×160

26

120-200

5340×2940×3650

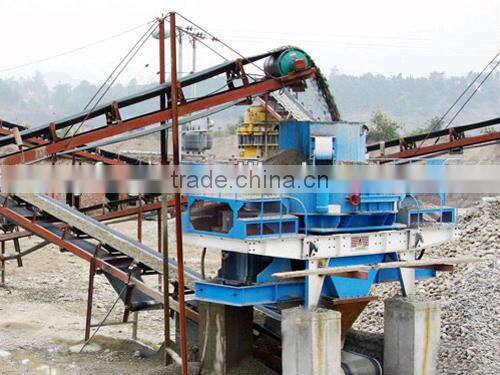

 Sand making line-pcl vertical shaft impact crusher,sand makerSand making line-pcl vertical shaft impact crusher,sand makerSand making line-pcl vertical shaft impact crusher,sand maker





...
