Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Crusher > Garnet Crusher ,jaw Crusher

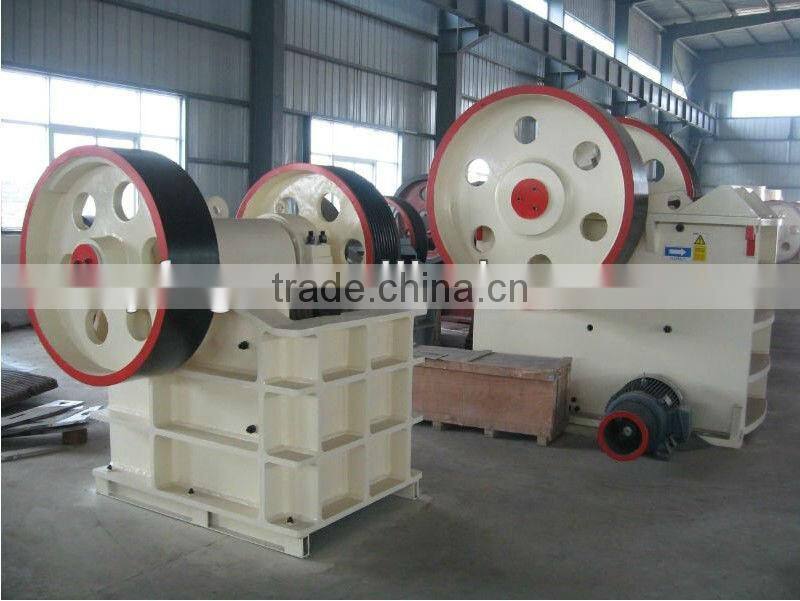

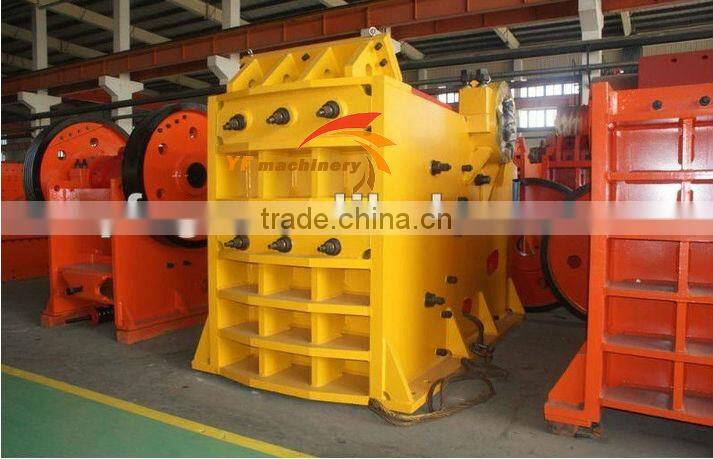

Garnet Crusher ,jaw Crusher

Name: Garnet Crusher ,jaw Crusher
Brand: yufeng
SKU: 139866775
Availability: InStock

US$ 5,000 - 500,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Jaw Crusher

Application:

mining,metallurgy,building materials,chemical engineering etc.

Contact Supplier Request Quote Chat Now

Zhengzhou Yufeng Heavy Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China main port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Jaw Crusher

Application mining,metallurgy,building materials,chemical engineering etc.

Motor Type AC Motor

Power(W) 5.5/7.5/11/15/18.5/22/30/75/110

Capacity(t/h) 400-800t/h

Place of Origin Henan, China

Brand Name yufeng

Model Number PE/PEX

Weight 0.6/1/2.3/7/12/17/20/29/33/52/55/100.9

Certification ISO&CE

Warranty 2Years

After-sales Service Provided Engineers available to service machinery overseas

Jaw crusher Specifications

Jaw crusher is widely used in mining, metallurgical, construction, highway, railway, and chemical industries.

Jaw crusher Descriptions

PE series jaw crusher is a kind of crude crushing equipment that is widely used in the world. It is mainly applies for the primary and secondary crushing of the hard rocks and block materials.Large and medium size jaw crushers are the leading products of our company and currently have been at the leading level

Jaw crusher Working Principle
The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet

Jaw Crusher Structure:

Features Of The Jaw Crusher:

1. Simple structure, easy maintenance;

2. High crushing ratio, even output granularity;

3. High reliability, low investment;

4. Low noise, less dust.

Jaw Crusher Technicial Parameters

Specification	Size of Feed Opening (mm)	Max Feeding Size (mm)	Adjustable Size of Discharge Opening (mm)	Capacity (t/h)	Motor Power Pole	Power (kw)	Dimension (mm)	Weight (t)
PE-150×250	150×250	125	10-40	1-3	4	5.5	670×820×760	0.81
PE-150×750	150×750	125	10-40	5-16	4	15	1050×1490×1055	3.8
PE-250×400	250×400	210	20-60	5-20	4	15	1160×1300×1240	2.8
PE-400×600	400×600	350	40-100	16-65	6	30	1480×1710×1646	7
PE-500×750	500×750	425	50-100	45-100	6	55	1800×1796×1940	12
PE-600×900	600×900	500	65-140	60-160	6	75	2235×2210×2380	17
PE-750×1060	750×1060	630	80-160	90-320	8	110	2430×2302×3110	29
PE-800×1060	800×1060	640	80-200	110-350	8	110	2530×2310×3110	30
PE-900×1200	900×1200	750	95-210	140-450	8	130	3789×2826×3025	50
PE-1000×1200	1000×1200	850	110-235	160-550	8	160	3889×2826×3025	57
PE-1200×1500	1200×1500	1020	150-300	400-800	8	180	4590×3342×3553	100.9
PEX-250×750	250×750	210	25-60	15-30	6	22	1750×1500×1420	5
PEX-250×1000	250×1000	210	25-60	16-52	6	30	1940×1650×1450	7
PEX-250×1200	250×1200	210	25-60	20-65	6	37	1940×1850×1450	7.7
PEX-300×1300	300×1300	250	25-100	20-90	6	55	2285×2000×1720	11

Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our Jaw Crusher, Please give us the message, we will reply as soon as possible.

....
