Biomass pellet making machine
1.Ring die plam fiber pellet mill--Raw materials Prepared
Wood Pellets is mainly made of any wood waste and biomass particles, such as wood sawdust, wood shavings, wood chips, wood logs, straw, rice husk, coffee husk etc. At a wood pellet plant, raw material need to be well prepared before pelletizing, then get dried, compressed, and formed into small eraser-sized bits, the wood pellets get from wood pellet plant are clean, pleasant smelling and smooth to touch.

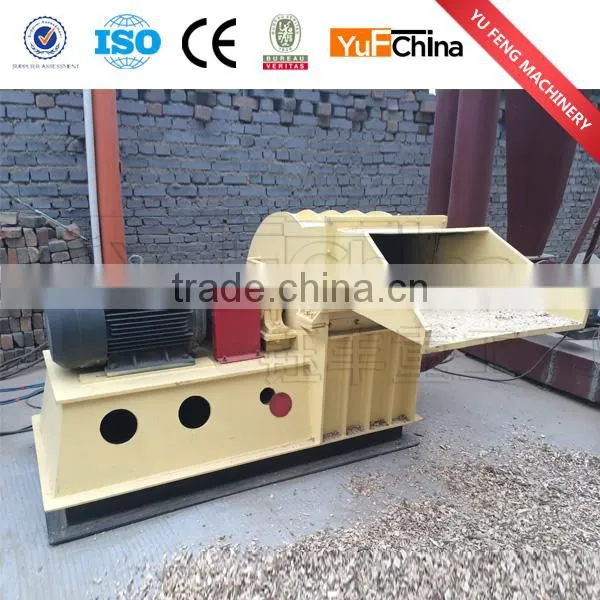

2. Ring die palm fiber pellet mill----Crushing process – Hammer mill
The hammer mill is a machine whose purpose is to crush materials by the collision between the high-speed hammer and materials. Our company chipping and crushing machine is your best choice. It mill raw material like tree branch, wood shavings, wood chips, wood logs, cotton stalk, corn stalk, wheat straw etc, with size less than 50mm (diameter). Aft pet food pellet machine er milled, the output size can reach diameter 3-5 mm, then it is pushed to next process to get dried and pelletized.

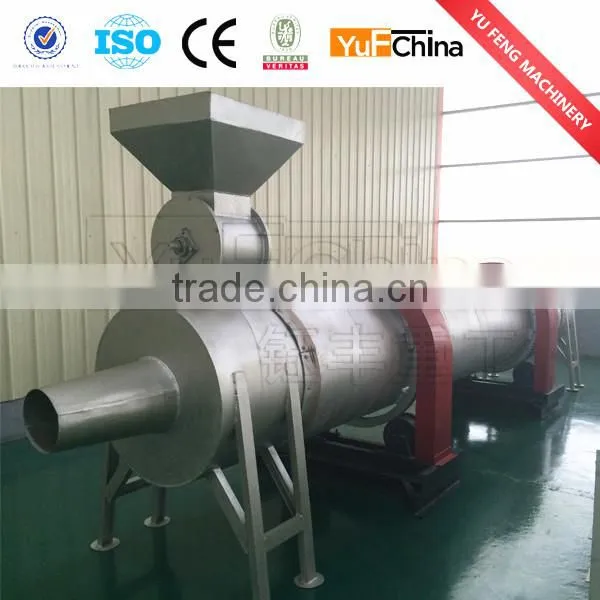

3. Ring die palm fiber pellet mill----Drying process – Wood Sawdust rotary dryer
After crushing process, the wood and biomass material need to be well conditioned on moisture before pelletizing. The best moisture content to pelletizing is about 14-16%. Our rotary dryer is made up of burning stove and main rotary dryer which is high efficiency in drying the wood and biomass material. It use steam to heat air and contact material to remove certain degree of moisture. It is very important for wood pellet plant to using moisture detector which will determine the most suitable moisture before pelletizing.

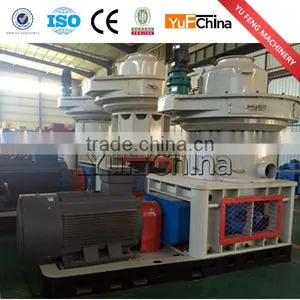

4. Ring die palm fiber pellet mill----Pelletizing process - wood Sawdust pellet mill
Ring die wood pellet mill is the heart of the pellet mill production line. Ring die wood pellet mill is widely used in compacting of wood, straw, other biomass sources into pellet. Capacity ranges from 1T to 5T per hour. high quality components make the pellet mill more efficient and durable.
1.Wood pellet making machine is an automation equipment,with automatic oil -supply device to lubricate the machine.
2.Biomass pellet machine can forming with moisture less than 8%,and the moisture content can be 15%,but the density will low and capacity will a little higher.
3.Wood pellet machine features high accuracy specification,simple structure, easy operation, high automation,save labor,mold and gear are made of stainless steel.
4.Widely suitability:All kinds of biomass raw material ,industrial waste It can convert biomass raw material and solid waste into energy fuel with high density.

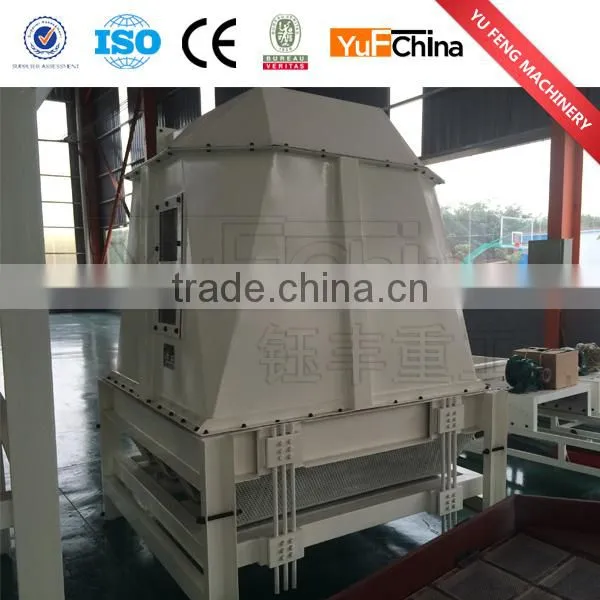

5. Ring die palm fiber pellet mill----Cooling process - Pellet cooling machine

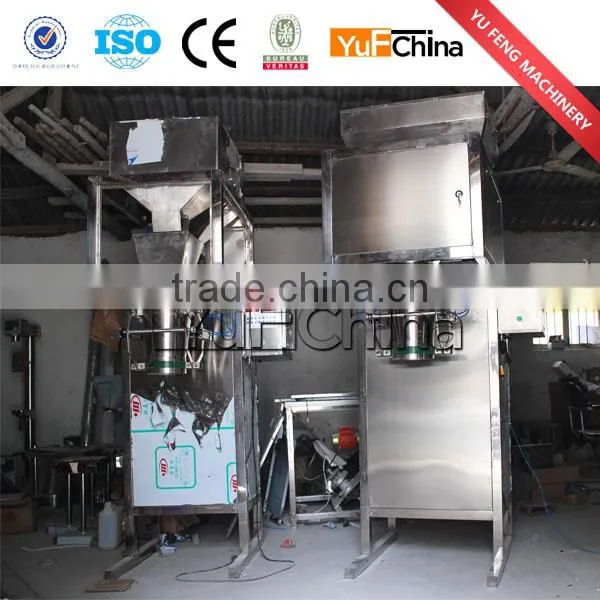

Packing machine
After the pelletizing process, the temperature of the wood pellet is about 60-80 degrees Celsius, and the moisture content of the wood pellets is about 15%. A cooler must then be used to reduce the moisture content of the wood pellet to about 3-4%, thereby making the wood pellet easy to store. However, some customers said that the local climate is very humidity, they want to cool the wood pellets with moisture 7-8%. It is no problem, our new stabilizer combined cooler can do it well.

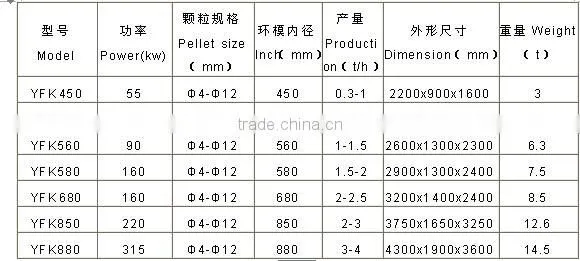

Main Technical of palm fiber pellet mill

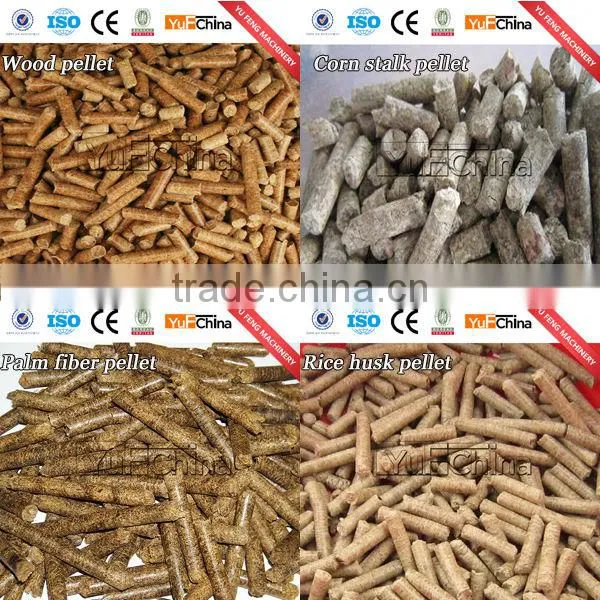

Pellets
Pellet production line
Pls contact Elise Zhu,skype:yumachine,MP:0086-13783696303
...
