Upgrading Iron Ore Grade by Floatation Separator -- CHINA YUFENG

Upgrading Iron Ore Grade by Floatation Separator -- CHINA YUFENG thumbnail-1
Upgrading Iron Ore Grade by Floatation Separator -- CHINA YUFENG photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
YUfeng
Model Number:
XJK and SF
Contact Supplier Request Quote Chat Now
Zhengzhou Yufeng Heavy Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai / qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name YUfeng
Model Number XJK and SF
Condition New

Zhengzhou Yufeng Heavy Machinery Co., Ltd has been one of the largest mining machinery manufacturers in China. It mainly deal with Stone and mining Crushing and screening equipments, Mineral processing equipments, Artificial sand and stone making equipments and AAC equipments,rotary drying equipments and rotary kiln , Lime and Cement production equipment and other equipments. The company welcomes all friends from home and abroad to visit Yufeng Heavy company to check the high quality products. The service center sincerely hopes that we can have a successful cooperation

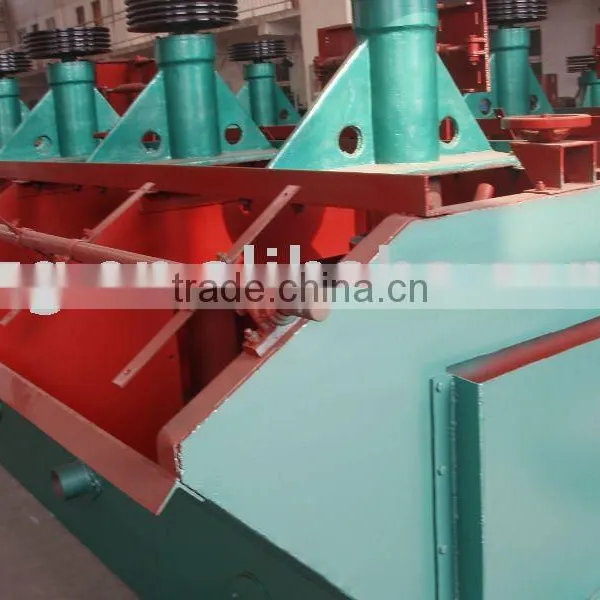

Description of Flotation Machine:



Our Flotation Machine is the latest design to use the circular tank concept and combines the benefits of circular cells with the unique features of the Minerals mechanism to create the ideal conditions to maximize floatation performance for all roughing, cleaning and scavenging duties, which can be used to separate nonferrous metal, ferrous metal, noble metal, nonmetallic mine, chemical material and recycle mine. It features: high inhalation, low power. Each chute can inhale gas, sink magma, separate. There is no need of accessory equipments horizontal equipment. It is easy to change the flow chart. The cycling way of magma is very reasonable. It can reduce the impurities to a great extent. There is automatic equipment on the magma surface. It is easy to adjust. The upward one makes the magma cycle toward upward, which the downward one makes the magma cycle downward.



The upgrading iron ore grade by floatation separator -- CHINA YUFENGworking principle of flotation machine



When flotation machine works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low-pressure air send by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough. When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth trough from the overflow weir. Another part of ore slurry flows to lower part of impeller for the re_mis with air. The remained slurry flows to the next trough until becomes residue.



Specifications of SJK Flotation Machine:
Type
Cubage
(m3)
Diameter
of impellor
(mm)
Capacity
(m3/min)
Speed
of impellor
(r/min)
Scraper speed
(r/min)
Motor
type
Power
(kw)
Overall dimensions
(mm) (four slot in one body)
Weight
(t/single
trough)
XJK-0.13
0.13
200
0.05-0.16
600
17.5
Y90L-4
1.5
2100x865x900
0.35
XJK-0.23
0.23
250
0.12-0.28
500
17.5
Y90L-4
1.5
2625x1130x1290
0.41
XJK-0.35
0.35
300
0.18-0.4
470
17.5
Y100L1-4
2.2
3012x1350x1320
0.45
XJK-0.62
0.62
350
0.3-0.9
400
16
Y100L2-4
3
3800x1500x1550
0.85
XJK-1.1
1.1
500
0.6-1.6
330
26
Y132M-6
5.5
4680x1820x1950
1.4
XJK-2.8
2.8
600
1.5-3.5
280
26
Y160L-6
11
7750x2600x2700
2.43



SF Flotation Machine
Product description:SF-suction From The Flotation Machine

SF-flotation machine applied to the separation of non-ferrous metals, ferrous metals, precious metals, non-metallic mineral and chemical raw materials, recovery of useful minerals. The device has the following characteristics: inhale large, low power consumption.



Type
Tank volume
( m3 )
Inspiratory capacity
( m3/ m2 /min)
Electric motor power
( kw)
Production capacity
( m3/ min )
Single weight
( kg )
SF-0.15
0.15
0.9-1.0
2.2
0.06-0.18
270
SF-0.25
0.25
0.9-1.0
1.5
0.12-0.28
370
SF-0.37
0.37
0.9-1.0
1.5
0.2-0.4
470
SF-0.65
0.65
0.9-1.0
3.0
0.3-0.7
932
SF-1.2
1.2
0.9-1.0
5.5
0.6-1.2
1370
SF-2.0
2.0
0.9-1.0
7.5
1.0-2.0
1750
SF-2.8
2.8
0.9-1.0
11
1.5-3.5
2130
SF-4.0
4.0
0.9-1.0
15
2-4
2585
SF-6.0
6.0
0.9-1.0
18.5
3-6
3300
SF-8.0
8.0
0.9-1.0
30
4-8
4130

upgrading iron ore grade by floatation separator -- CHINA YUFENG

...
