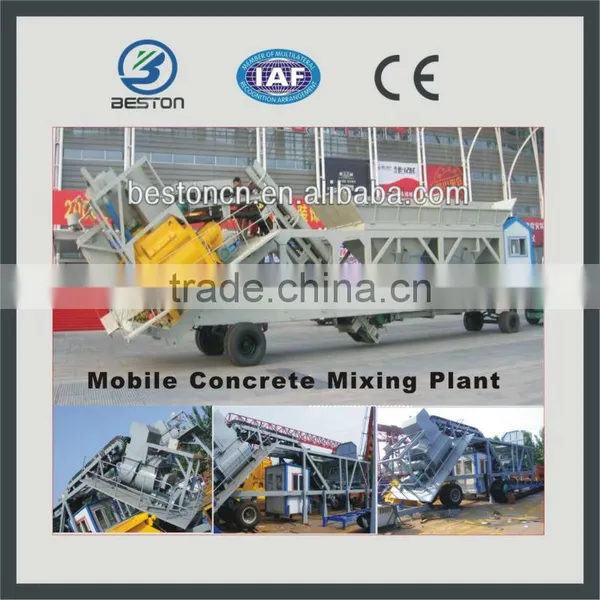

YHZS35 35m3/h Mini Mobile mixing plant for south africa
- 140 Set / Sets per Month
- China main ports
- T/T L/C D/P D/A Credit Card PayPal
- hzs180 giant concrete batching plant complete concrete mixer plant on market
- complete set hzs180 big size concrete batching plant used for construction
- competitive price hzs180 concrete batching plant with sicoma mixer
- high performance 180m3/h capacity concrete batching plant with conveyor belt
- competitive low factory price concrete mixing batching plant for sale
- commercial concrete batching plant hzs120 mixing plant stationary for hot sale
Product Details
Condition: | New | Power Type: | Electric | Place of Origin: | Henan, China |
Brand Name: | Boston | Model Number: | YHZS35 | Power(W): | see details |
Dimension(L*W*H): | see below | Weight: | see below | Certification: | ISO ,CE , BV |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
(2). All of the HZS series concrete batching plants can be supplied with or without Cement Silos, Screw Conveyor, Control Room, Air Conditioner, Additive Mixing Canister and Additive Weighting system.
Main Mixer of YHZS35 Mobile Concrete Batching Plant
(1). This concrete mixer uses high-chromium and high-molybdenum scale boards and stirring pieces, with a long service time.
(2). Shaft seal is applied with patented air pressure seal, which can effectively prevent the leakage of mortars.
(3). Opening gates mechanism directed by hydraulic can adjust the opening angle of discharging door in accordance with the need, which effectively prevents overspill while discharging the finished materials into truck-mounted concrete mixers.
Features of YHZS35 Mobile Concrete Batching Plant
(1). It is composed of four systems which include material supply, weighing, mixing and electric control.
(2). Its discharge height is 3.8m, and it can mix any kind of concrete;
(3). With the loader to feed material, it can store four types of aggregates at the same time and also with two cement silos and their respective screw conveyor;
(4). With electronic scales to measure and the mixing host is twin-horizontal-axis JS series type .
(5). Electrical system is equipped with PLC, printer and so on to realize the centralized control and overall management;
(6). With the functions of real-time display, information storage and automatically equalizing the fall during the production process;
(7). It can be controlled by computer and manually, and they can be easily converted through the switch;
(8). The modular design is convenient for the containerized transport;
(9). With the optimized design of the concrete batch plant, it can be overall transferred by the towing vehicle.
(5). Airport construction
(6). Large precast factory
(7). Commercial concrete making factories
Technical Parameters
Output capacity | 35 m3/h |
| Discharge height | 3.8m | ||
Main mixer feeding-output | 1200L-0.75m3 |
Power | 380v/50Hz | |||
Automatic-electronically controlled/semi-automatic electronic control system |
PLC + IPC / console |
Total capacity |
60Kw (excluding optional items) | |||
Hopper volume | 4x5.5m3 or 2x11m3 |
Total weight | ≈ 23000kg (excluding optional items) | |||
Measurement range | Aggregate (superimposed measurement) | 2500Kg±2% | Outline |
Working state | 17.3mX3.4mX7.41m | |
powder | 600Kg±1% | Transportation state | 17mX2.4mX4.34m | |||
water | 300Kg±1% |
Trailer speed | ≤40Km/h | |||
Additive | 20Kg±1% |
Optional items | Cement powder silo, screw conveyor, sand and gravel aggregate feeding system. | |||
Aggregate size | ≤60mm |
Mobile concrete mixing plant | |||||||
Model | YHZS25 | YHZS35 | YHZS50 | YHZS60 | YHZS75 | YHZS90 | YHZS120 |
Output (m3/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 |
Mixer Capacity (m3) | 0.5 | 0.75 | 1 | 1 | 1.5 | 1.5 | 2 |
Discharging Height (mm) | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 |
Mixer | JS500 | JS750 | JS1000 | JS1000 | JS1500 | JS1500 | JS2000 |
Aggregate Batcher (mm) | PLD800 | PLD1200 | PLD1600 | PLD1600 | PLD2400 | PLD2400 | PLD3200 |
Customers Visit:
CE and ISO Certificates
Our Service Clients
Our Clients includes those FORTUNE 500 companies like CHINA RAILWAY, CHINA SINOHYDRO, CHINA METALLURGY, CHINA STATE CONSTRUCTION ENGINEERING, CAMCE and China national top companies like CHINA SOUTH-TO-NORTH WATER PROJECT, CHINA MECHANICAL EQUIPMENT CORP etc.
Our International Market
We have established overseas projects in 28 countries and regions. And we need your support to introduce our high quality product and service to your honored company and country.
We also supply:
Mixer(JDC series, JS series, JZ series), Tower crane,
Concrete batching plant, Construction elevator,
Station soil mixing station, Concrete mixing truck,
Batching machine, Screw conveyor,
Cement Silo, Block making machine etc.
After sale service
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning;
4.Service team will follow every placed order regularly till warranty period finished
