Best quality and safe elevator for construction
- 50 Set / Sets per Month
- Qingdao
- T/T
Product Details
| Condition: | New | Place of Origin: | Henan, China | Brand Name: | BESTON |
| Model Number: | SCD200 | Rated Loading Capacity(kg): | 2000KG | Hoisting Speed: | 33 |
| Max Lifting Height: | 150m | Dimension(L*W*H): | 3.2mx1.5mx2.6m | Loder Weight: | 1000KG |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

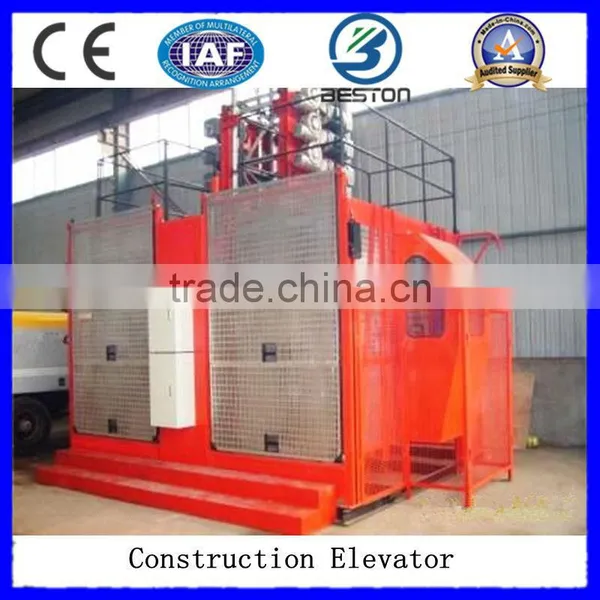

Best quality and safe elevator for construction
SC/SCD series Construction Elevator is one new type product manufactured by our company,it is widely used
to vertical transport personnel and materials.This product’s characteristics are reasonable design, attractive
structure, stable performance, complete safe device, easy instillation and convenient maintenance, etc.
Brief introduction
SC200/200 construction elevator, adjust to meshing gear and rack, external type, three transmission,
rated lifting capacity is 2 tons,and biggest hoisting height is 150 meters . This machine is equipped
with a national patent technology for safety device, if falling can brake automatically , the top drive unit
equipped on the cage, safe and reliable, and it is convenient to maintenance . The machine's hoisting
height up to 150 meters. This machine is widely used in construction, such as industrial and civil
construction, bridge construction, underground construction, large chimney construction and shipbuilding
and other places, suitable for vertical transport materials and personnel, as a permanent or semi-permanent elevator can also be used in warehouses, towers and other places.
Technical parameters
| Parameter | Unit | Model | ||||
| SC100 | SC100/100 | SC200 | SC200/200 | |||
| Rated capacity | kg | 1000 | 2×1000 | 2000 | 2×2000 | |
| Number of people | No. | 7~10 | 14~20 | 10~15 | 20~30 | |
| Rated lifting speed | m/min | 34 | 34 | 34 | 34 | |
| Free Standing Height | m | 50 | 50 | 50 | 50 | |
| Max.lifting height | m | 200 | 200 | 200 | 200 | |
| Motor power | kw | 2×11 | 2×2×11 | 3×11 | 2×3×11 | |
| Suspension cage inner size | m | 3×1.3×2.3 | 3×1.3×2.3 | 3×1.3×2.3 | 3×1.3×2.3 | |
| Main Chord | mm | 76 x 4.5 | 76 x 4.5 | 76 x 4.5 | 76 x 4.5 | |
| Dimension of Mast Section | mm | 650×650×1508 | 650×650×1508 | 650×650×1508 | 650×650×1508 | |
| Weight of Mast Section | kg | 150 | 150 | 150 | 150 | |
| Suspension cage inner size | m | 3.2×1.5×26 | 3.2×1.5×2.6 | 3.2×1.5×2.6 | 3.2×1.5×2.6 | |
| Main Chord | mm | 76 x 6.0 | 76 x 6.0 | 76 x 6.0 | 76 x 6.0 | |
| Dimension of Mast Section | mm | 800×800×1508 | 800×800×1508 | 800×800×1508 | 800×800×1508 | |
| Weight of Mast Section | kg | 180 | 180 | 180 | 180 | |
| Overall Weight | kg | 7000 | 13000 | 7000 | 13000 | |
| Safety Device | SAJ40-1.2 | |||||
