Specifications
Dryer1.to dry the material,if the moisture is more than 3
2.direct manufacturer
3.more than 50x experience
4.various models
Dryer in light weight aggregate production line
1. to dry the material
2.increase the capacity of the production line
Lightweight Expanded Clay Aggregate production line
Final production line features: 1 .low density 2. fireproof 3. heat insulation
LECA is a special kind of clay that has been pelleting and burning at very high temperature. It has been widely used in
1. Gardening
2. Oil industry
3. Building material industry (e.g.lightweight concrete blocks)
4. Road and railway construction field.
We provide complete production line for producing Lightweight Expanded Clay Aggregate for different purpose. The products have the characteristic of
1. Lightweight and Low-density
2. High efficient heat preservation.
3. High efficient heat insulation
4. Fireproof
5. High filtering function.
6. seismic resistance
The basic production process is crushing,dryer,crusher,grinding,screen,disc,kiln,cooler etc
all line we can supply incluidng the design

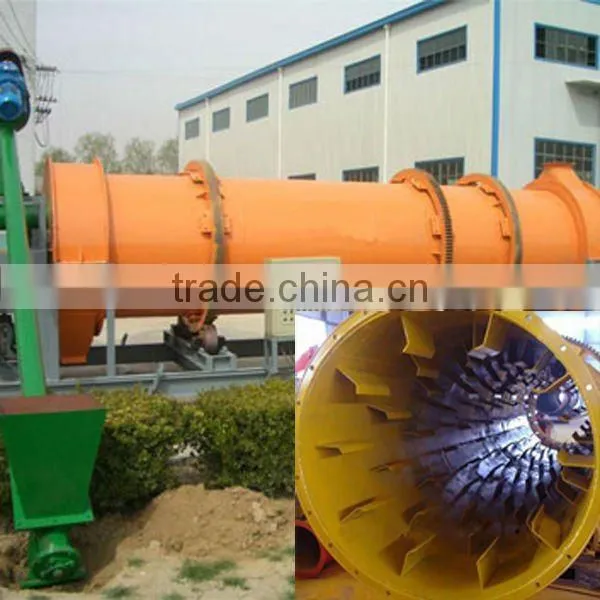

High Capacity Rotary Drum Dryer
High Eficiency Rotary Drum Dryer for Slag, coal, cassava,Sawdust, Sand
Rotary dryer/Drum Drier is widely used in mining industry, building material, metallurgy, chemical industry, cement industry, and etc.

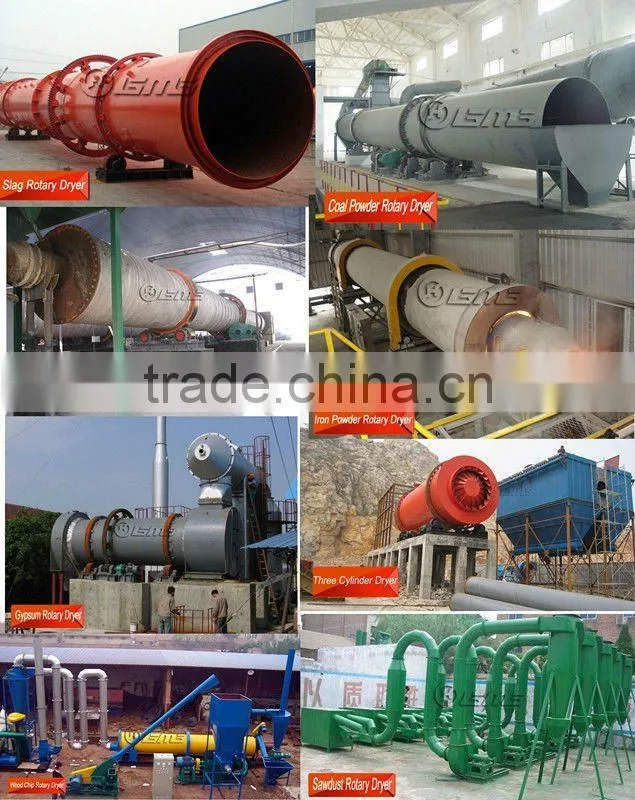

Zhengzhou huanqiu heavy is a professional manufacture of rotary drum dryers. we've designed various rotary dryers for drying slag, limestone, coal powder, clay, sawdust, oil palm fiber, grass, river stone, poultry dung, ores, rock sand and etc for our customers both at home & abroad.
1. High Capacity Rotary Drum Dryer advantages:
reasonable structure, polished manufacture, high capacity, low energy consumption, smooth rotation, easy operation, convenient transportation and so on.

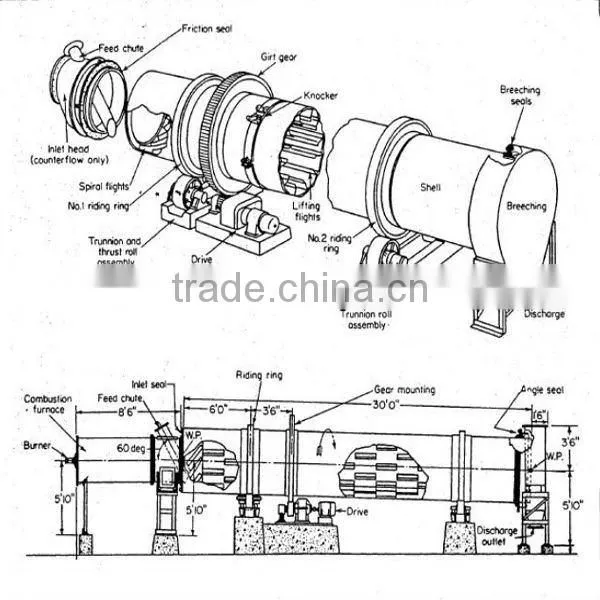

2. Rotary Drum Dryer main parts:
cylinder, lifters, driving device, supporting device and sealing ring, feeding device, discharging device, gear, gearbox, electric motor, cyclone dust collector, furnace and etc.
3. Rotary Dryer Drum drier heating source:
coal, coal gas, natural gas, LPG gas, wood, and etc.
4. Rotary Dryer Drum Drier Mode of flow:
direct flow or counter flow. It is based on the different materials.
5.Rotary Dryer Drum Drier principle of operation:
The raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dried.
Technical data Rotary Dryer:
type(mm) |
indiclination(%) |
rotation speed(r/min) |
input tempreture(ºC) |
motor power(kw) |
outpur(t/h) |
weight(t) |
reforance |
|
Φ600×6000 |
3-5 |
3-8 |
≤700 |
3 |
0.5-1.5 |
2.9 |
||
Φ800×8000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.0 |
3.5 |
||
Φ800×10000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.5 |
4.5 |
||
Φ1000×10000 |
3-5 |
3-8 |
≤700 |
5.5 |
1.0-3.5 |
5.6 |
||
Φ1200×10000 |
3-5 |
3-8 |
≤700 |
7.5 |
1.8-5 |
14.5 |
||
Φ1200×12000 |
3-5 |
3-8 |
≤700 |
11 |
2-6 |
14.8 |
||
Φ1500×12000 |
3-5 |
2-6 |
≤800 |
15 |
3.5-9 |
17.8 |
||
Φ1800×12000 |
3-5 |
2-6 |
≤800 |
18 |
5-12 |
25 |
||
Φ2200×12000 |
3-5 |
1.5-6 |
≤800 |
18.5 |
6-15 |
33 |
||
Φ2200×18000 |
3-5 |
1.5-6 |
≤800 |
22 |
10-18 |
53.8 |
||
Φ2200×20000 |
3-5 |
1.5-6 |
≤800 |
30 |
12-20 |
56 |
||
Φ2400×20000 |
3-5 |
1.5-5 |
≤800 |
37 |
18-30 |
60 |
||
Φ2800×15000 |
3-5 |
1.5-5 |
≤800 |
40 |
20-35 |
72.5 |
||
Φ2800×18000 |
3-5 |
1.5-5 |
≤800 |
40 |
25-35 |
75 |
||
Φ3000×20000 |
3-5 |
1.5-5 |
≤800 |
55 |
28-40 |
78 |
||
Φ3000×25000 |
3-5 |
1.5-5 |
≤800 |
75 |
32-45 |
104.9 |
||
.
