Specifications
disc granulator1.used in granulating
2.direct manufacturer
3.various models in stock
4.large capacity,low energy

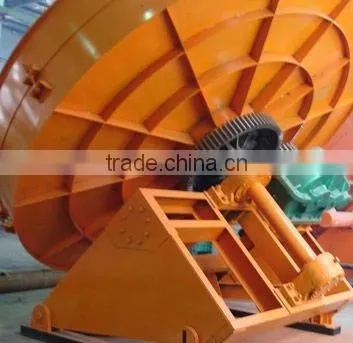

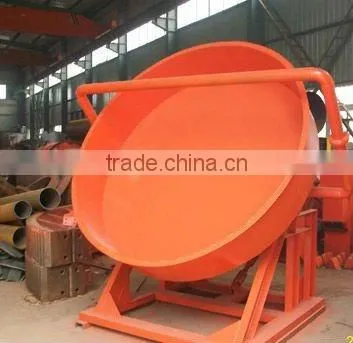

disc granulator

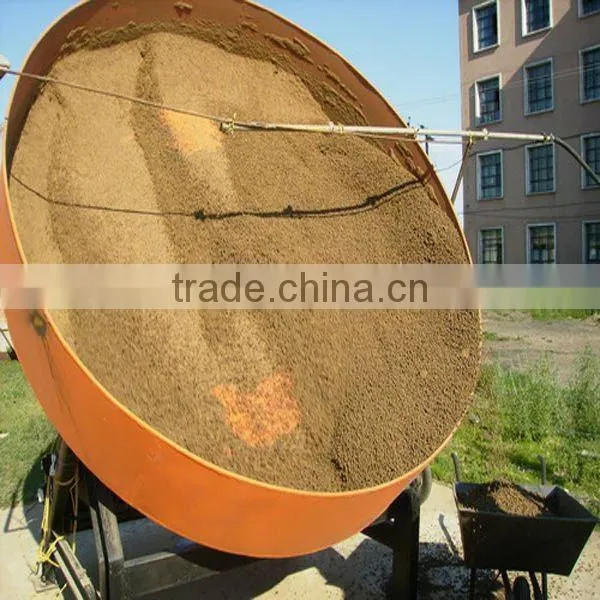

Application of disc granulator
Granulating disc is a cubage measuring feeding equipment; it supplies materials to the next procedure evenly and continuously; at the same time, it can bear relatively higher pressure. It is a fine powdery material feeder suitable for non-cohesive materials like coal powder, cement, chamotte, limestone, shale, gangue and clunch. It is widely used in gold concentrator, coal mine, chemical plant, construction and foundry for quantitative and even feeding.
Advantages of disc granulator
1)simple structure
2)easy-to-adjust
3)excellent in performance.
Notes:
This machine is suitable for conveying of materials with granularity less than 50mm, while it is not suitable for cohesive materials, easy-to-flow or hard-to-flow materials.
Main technical parameters of Disc Granulator
| Specification (m) | Rotation speed of disk (r/min) | Capacity(t/h) | Power(kw) | Adjusting range of disk gradient | Dimensions( m ) | Weight (kg) |
| Ø2.2 | 14.25 | 0.8-1.2 | 7.5 | 35-55 | 2.8*2.75*2.58 | 2850 |
| Ø2.5 | 11.81 | 1.0-1.5 | 7.5 | 35-55 | 3.2*2.3*3 | 3250 |
| Ø2.8 | 11.21 | 1.0-2.5 | 7.5 | 35-55 | 3.4*2.6*3.1 | 3710 |
| Ø3.0 | 11.3 | 2.0-3.0 | 11 | 35-55 | 3.7*2.7*3.3 | 4350 |
| Ø3.2 | 9.6 | 2.0-3.5 | 11 | 35-55 | 3.9*2.7*3.4 | 5110 |
| Ø3.6 | 9.1 | 3.0-5.0 | 15 | 35-55 | 4.3*3.1*4.0 | 6510 |
Lightweight Expanded Clay Aggregate production line
it is more economical to use Leca concrete rather than ordinary concrete
Final production line features: 1 .low density 2. fireproof 3. heat insulation
LECA is a special kind of clay that has been pelleting and burning at very high temperature. It has been widely used in
1. Gardening
2. Oil industry
3. Building material industry (e.g.lightweight concrete blocks)
4. Road and railway construction field.
We provide complete production line for producing Lightweight Expanded Clay Aggregate for different purpose. The products have the characteristic of
1. Lightweight and Low-density
2. High efficient heat preservation.
3. High efficient heat insulation
4. Fireproof
5. High filtering function.
6. seismic resistance

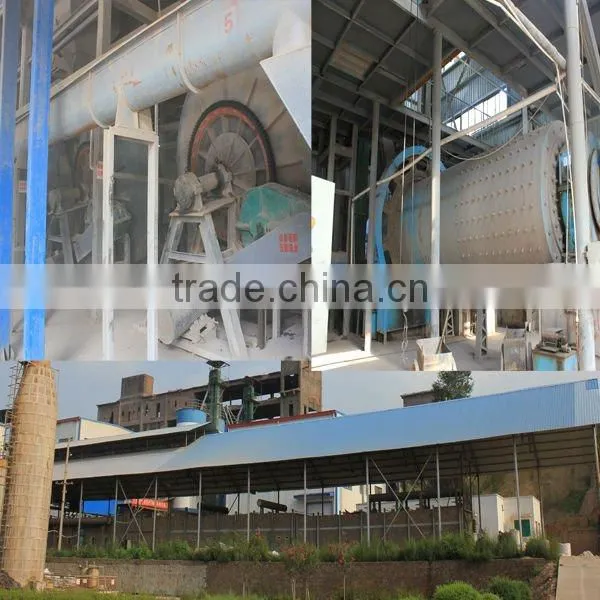

The basic production process is crushing,dryer,crusher,grinding,screen,disc,kiln,cooler etc
all line we can supply incluidng the design
The Lightweight Expanded Clay Aggregate production line is composed of
