HOWO 6x4 Concrete Mixer Truck low price

Specifications

1. Dimension and thickness can be customized as request
2. Wear resistant manganese steel plate
3. Concrete Mixer Truck

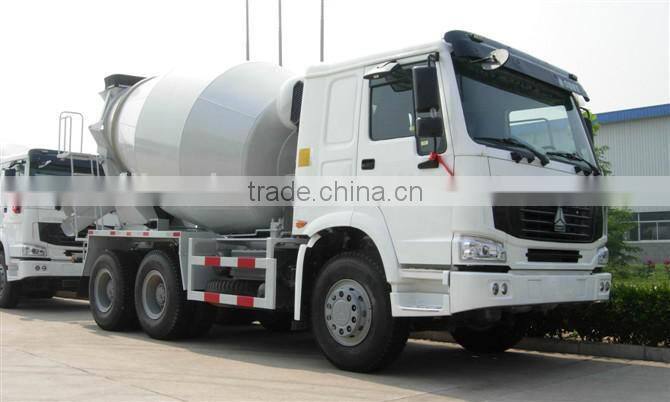

HOWO 6x4 Concrete Mixer Truck Illustration



The concrete mixer trucks include many models such as 8m3,9m3,10m3,12m3,14m3,and can choose any tailor made for mixer truck special chassis both at home and abroad as supporting part according to customers wishes.The hydraulic system adopts Germany Rexroth,Italy ARK,America Sauer.The mixer is mounted on ISUZU,NISSAN,STR chassis.Stirring vat body and helical vanes all adopt B520JJ single-purpose special fine crystal particle hard wearing steel plate from SHANGHAI BAOGANGwhile the easy wearing positions having much contact with concrete such as feeding and discharging bucket chuts,etc.The whole truck adopts blasting and baking finish to produce an elegant and pleasing outline with such advantages as smmoth and reliable slewing,speedy discharge,low surplus rate,handy operation,and long using life.

Main Technical Parameters for reference

Model Number	ZZ1257N3847A
Capacity	25 Tons
Engine	CNHTC brand, WD615.69, 336hp EUROII
Transmission	HW13710, 10 forward, 2 reverse
Steering	ZF8098 hydraulic steering with power assistance
Front axle:	HF9, each 9 Tons loading capacity
Rear axle:	HC16, each 16 Tons loading capacity
Cab	HW70 standard cab, with air conditioner
Rim/Tires	12.00-20 basic tires, 11 tires with one spare tire
Capacity of Mixer tank	9m³
Color	red, green, white, yellow optional
Fuel Tank	300L

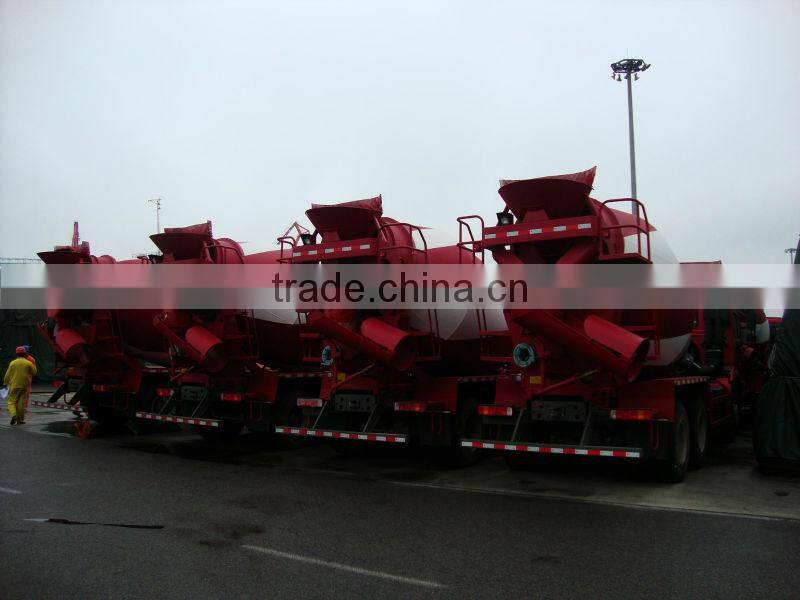

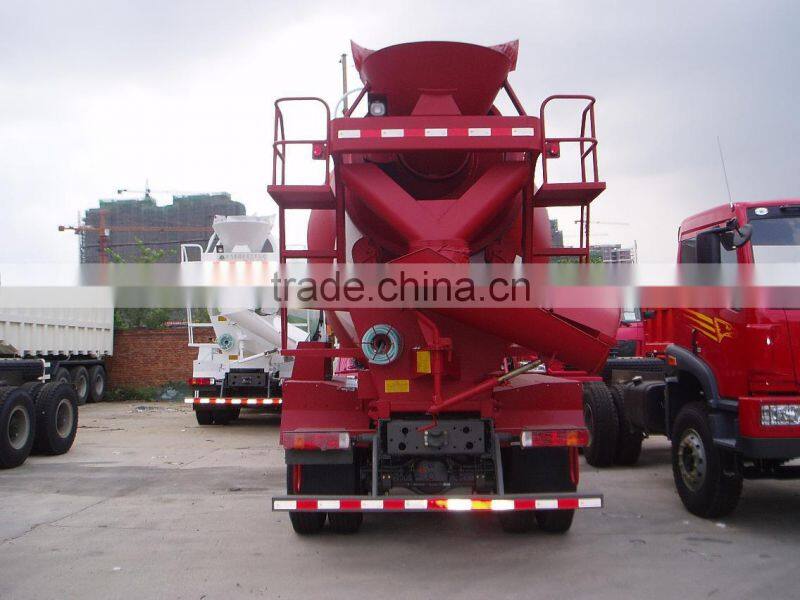

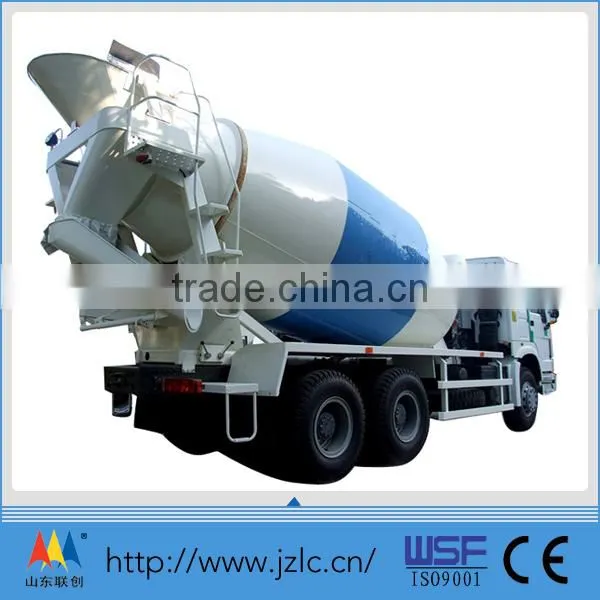

Other photos for reference
