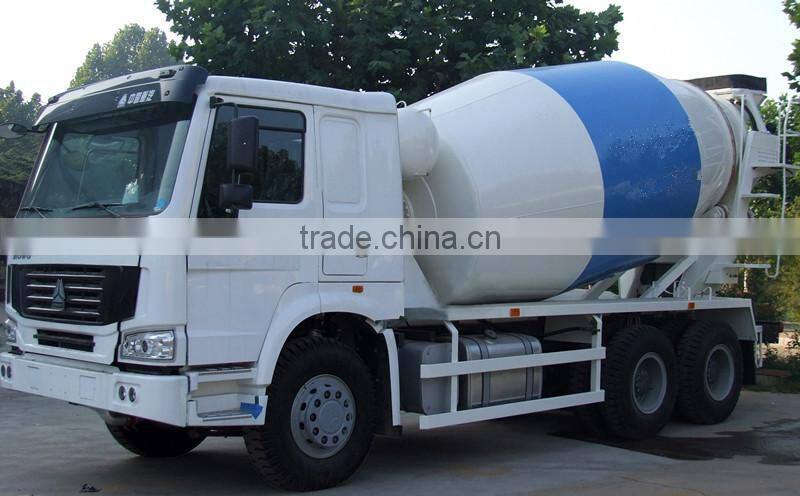

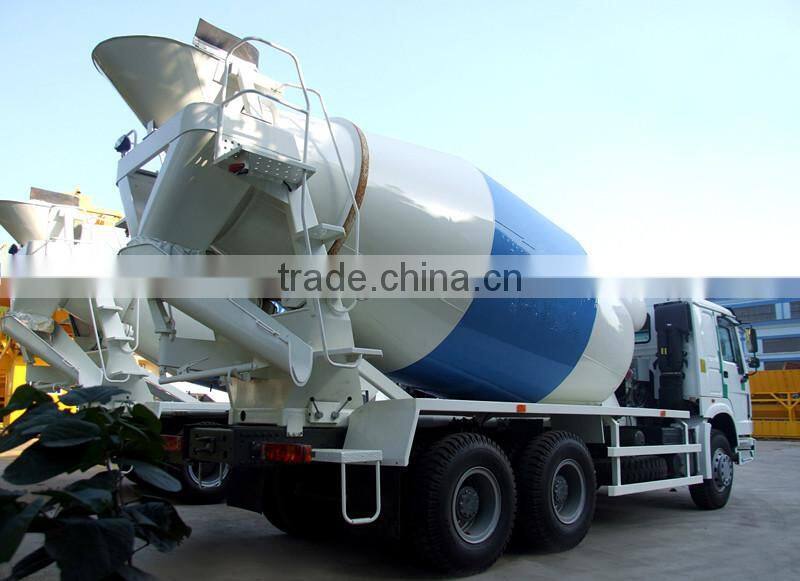

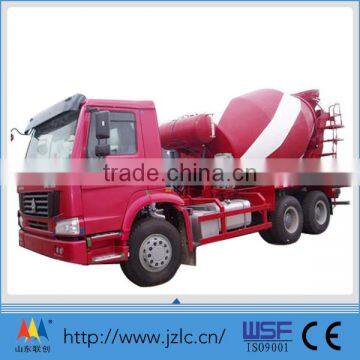

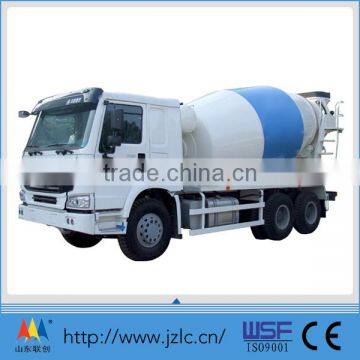

8m3 Concrete Mixer Truck HOWO Chassis Factory or Other Capacity

Name: 8m3 Concrete Mixer Truck HOWO Chassis Factory or Other Capacity
Brand: Lianchuang
SKU: 139856299
Availability: InStock

US$ 55,000 - 65,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Lianchuang

Shandong Lianchuang Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Lianchuang

Model Number ZZ5257

Weight 12800KG

Dimension(L*W*H) 8204X2496X3850mm

Power(W) 213KW

Certification ISO9001

Warranty one year

After-sales Service Provided Overseas service center available

Working conditions for the mixing truck:

1.The falling scope of the loaded concrete shall be in the range 40-210mm

2.Water pipes which could add water to water tanker shall be matched and the water shall be clean without imparity

3.Max. diameter of bulky aggregate: broken stone 40mm and cobble 60mm

Main technical parameters:

Type			ZZ5257GJBM3247C
Empty weight(kg)			12800
Rated carrying capacity(kg)			12070
Total weight (kg)			25000
External size	Length (mm)		8204
	Width (mm)		2496
	Height(mm)		3850
Technical data	Geometry cubic capacity(m3)		13.4
	(Announcement capacity )m3		5
	Input speed m3/min		>3
	Out speed m3/min		>1
	Discharge residual rate %		<1
	(Collapsbillity)mm		40~210
	(Speed range of drum turning )r/min		0~14
	(Drum gradien )º		13º
		Reducer	international famous brandrt
		Hydraulic pump/ Motor
		Hydraulic loop	Closed loop
Water supply	Water tanker(L)		400
Whole truck charateristic and data	(Axis distance)mm		3225+1350
	(Maxspeed )km/h		90
	(Min turning diameter)m		18.6
	clutch		single piece dry style
	Model of gear		HW10
	Driving type		6×4
	Steering mechanism		Integral power steering
	brake		Pneumatic dual-circuits
	Tire specifications		12.00R20
	Model		ZZ1257M3247C (HOWO) )
Engine parameters	Model		WD615.93E
	Type		Water-cooling turbocharged fuel injection
	Cylinder		6Cyliner inline
	Total exhaust volume/power )L/KW		9.726/213
