Batching Plant of Concrete PL1200, PL2400
US$ 5,500 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
shandong lianchuang
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pneumatic Cement ConveyorUS$ 100 - 1,000MOQ: 1 Set -
PL1200 Concrete Burden MachineNegotiableMOQ: 1 Set
-
PL800 Concrete Batching Plant MachineNegotiableMOQ: 1 Set
-
PL1600 Ready Mixed Concrete Batching MachineNegotiableMOQ: 1 Set
-
Lianchuang Brand High Quality PL1600 Batching MachineNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
shandong lianchuang
Model Number
PL2400, PL2400
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
the PL series batching machine can complete the batching program for sandstone material according to customer requirementsPL2400 batching machine
1.What are the merits of product?
Excellent performance
Suitablefor various sites like roads, bridges, dams, airports and seaports.Twinhorizontal shaft mixer of powerful mixing capacity, excellent mixingquality, fast and high production rate.
High reliability
Mixer liner and paddles with special shafts and sealing .International branded electrical components.
Accurate weighing
Imported weighing and control components; speed of 120t/s, ensuring accuracy and reliability
Excellent maintenance
Platforms and ladders for observe maintenance and operation.
2. Technical parameter
| Item | PL800 | PL1200-III | PL1200-IV | PL1600—III | PL1600-IV |
| Capacity of Weighing Hopper(m3) | 0.8 | 1.2 | 1.2 | 1.6 | 1.6 |
| Capacity of Storage Hopper(m3) | 2×2 | 3×2.2 | 4×2.2 | 3×3.7 | 4×3.7 |
| Productivity(m3/h) | ≥48 | ≥60 | ≥60 | ≥80 | ≥80 |
| Accuracy of Batching | ±2% | ±2% | ±2% | ±2% | ±2% |
| Max weighing(kg) | 1500 | 20000 | 2000 | 3000 | 3000 |
| Material Species of Batching | 2 | 3 | 4 | 3 | 4 |
| Feed Height(mm) | 2364 | 3000 | 3000 | 3000 | 3000 |
| Belt Conveyor Speed (m/s) | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
| Power(kw) | 3×3 | 4×3 | 5×3 | 4×3 | 5×3 |
| Total Weight(kg) | 2300 | 3900 | 4900 | 4750 | 5750 |
| Dimension(mm) | 6400×1600×3000 | 9600×2000×3200 | 12916×2000×3200 | 9600×2000×3200 | 12916×2000×3200 |
| Item | PL2400-III | PL2400-IV | PL3200-III | PL3200-IV | PL4800-IV |
| Capacity of Weighing Hopper(m3) | 2.4 | 2.4 | 3.2 | 3.2 | 4.8 |
| Capacity of Storage Hopper(m3) | 3×12 | 4×12 | 3×20 | 4×20 | 4×25 |
| Productivity(m3/h) | ≥120 | ≥144 | ≥160 | ≥160 | ≥280 |
| Accuracy of Batching | ±2% | ±2% | ±2% | ±2% | ±2% |
| Max weighing(kg) | 4000 | 4000 | 5000 | 5000 | 8000 |
| Material Species of Batching | 3 | 4 | 3 | 4 | 4 |
| Feed Height(mm) | 3200 | 3200 | 3500 | 3500 | 3800 |
| Belt Conveyor Speed (m/s) | 1 | 1 | 1 | 1 | 1 |
| Power(kw) | 11 | 11 | 11 | 11 | 15 |
| Total Weight(kg) | 8500 | 11000 | 10200 | 12600 | 13600 |
| Dimension(mm) | 9800×2840×3900 | 13370×2800×3900 | 10400x2900×4450 | 13500×2900×4450 | 15520×3900×5090 |
Now we havePL800 PL1200 PL1600 PL2400 PL3200 PL4800 and any other types available.

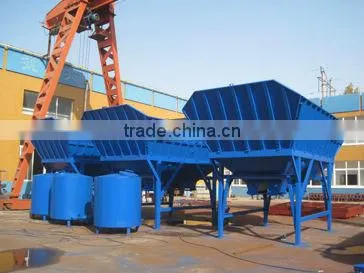

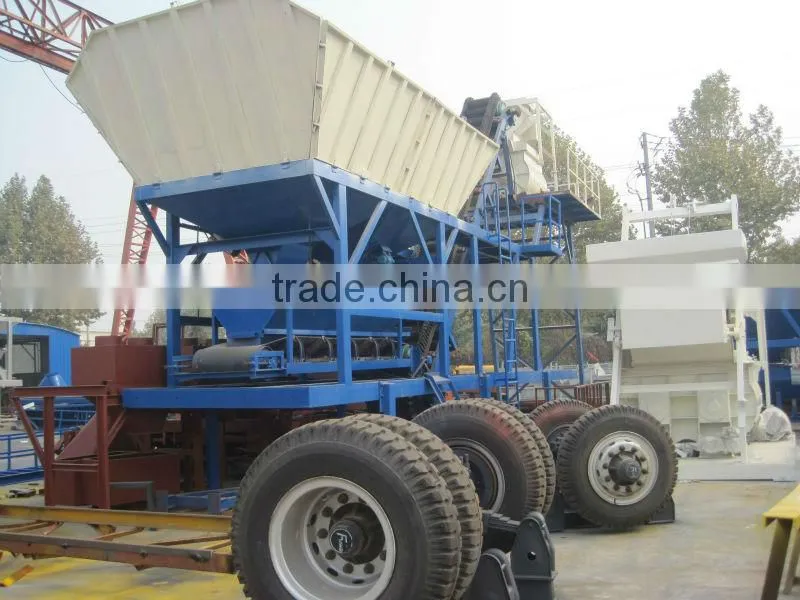

4.Pictures
