Lianchuang Small Concrete Pump for Sale

Lianchuang Small Concrete Pump for Sale photo-1

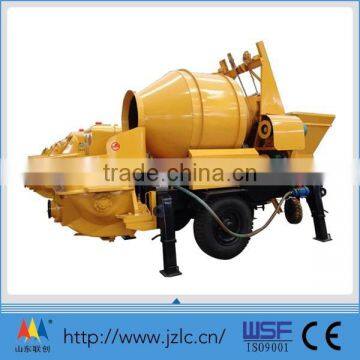

Lianchuang Small Concrete Pump for Sale photo-2

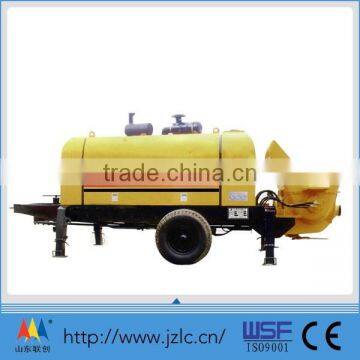

Lianchuang Small Concrete Pump for Sale photo-3

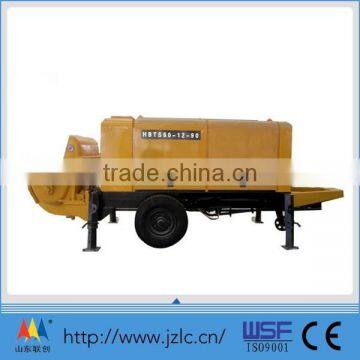

Lianchuang Small Concrete Pump for Sale photo-4
Lianchuang Small Concrete Pump for Sale photo-5
Lianchuang Small Concrete Pump for Sale photo-6
US$ 39,950 - 46,332 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Power Type:
Electric
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Power Type Electric
Place of Origin Shandong, China
Brand Name LianChuang
Model Number htb60
Certification ISO9001
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Small concrete pump for sale
2. Easy maintenance
3. ISO9001 certificate
4. Engineers available to abroad

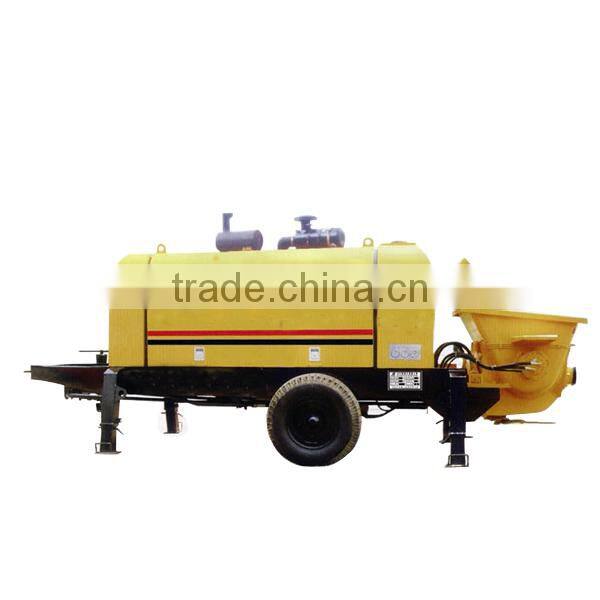

Lianchuang small concrete pump for sale

Lianchuang small concrete pump for sale

Main motor adopts German Deutz and Volvo diesel engine; central hydraulic pump and valve adopts Germany Rexroth or Hawe products; pipe joint and hydraulic tubing adopt products imported from Germany and Italy; piston head adopts original products imported from Germany and implements global purchasing. Electric control of operation and control center adopts Siemens technology, improving integrating stability and reliability of pump; self-tracking of pumping speed, as the main body starts, just pressing send button, the rotate speed will be automatically tracked according to the instruction. If the work need to be increased as the normal work is over 1,000r/min, just pressing the button, the main body will change upon the instruction. The pump has three operation structures, which can be operated in the machine or remote control. If there is accident, the hand standby accelerator device is available.


Hydraulic ram lifting changes the traditional ram lifting operated by jack (it can be selected by clients). In terms of some searing parts, such as wearable plate and spectacle plate, our R&D personnel research with Tsinghua University on friction and wearing. The product service life is about 30,000m3, higher than international famous brand. Through inspection by Shandong Institute of Supervision & Inspection on Product Quality and filed identification of national high-level experts, each performance index is better than enterprise standard and HBT trailer concrete pump reaches domestic advanced level.

Technical parameter

Parameter Name

Unit

Technical Data

Remark

 Model



HBT60.13.75S



Theory output

m3/h

65/37



Theory pressure

Mpa

7/13



Approximate conveying distance

m

900

(Level)





270

(Vertical)

Delivery cylinder: diameter×journey

mm

220×1200



Motor power

kW

75



Hopper capacity

L

480



 Feeding hight

mm

1400



Size:  L×W×H

mm

4500×2160×2300



Approx. weight

kg

5000



 Type



(S-valve Trailer Concrete Pump)

 Grain size

mm

10—50,(Delivery pipe dia.)ø150





10—40,(Delivery pipe dia.)ø125

Slump

mm

100~230



 Lianchuang small concrete pump for sale

 Lianchuang small concrete pump for saleLianchuang small concrete pump for saleLianchuang small concrete pump for sale





 Lianchuang small concrete pump for saleLianchuang small concrete pump for sale



 Lianchuang small concrete pump for saleLianchuang small concrete pump for sale
