50t cement silo
Negotiable
/ Set
1 Set(Min.Order)
- 0 per Month
- qingdao
- T/T
You May Like
Product Details
Place of Origin: | Shandong, China | Brand Name: | shandonglianchuang | Model Number: | SNC150T |
Product Description
Specifications
1.Rich expertise2.Wide storing capacity range
3.ISO9001:2008&CE
4.The silo body uses Galvanizing steel
5.Easy installti

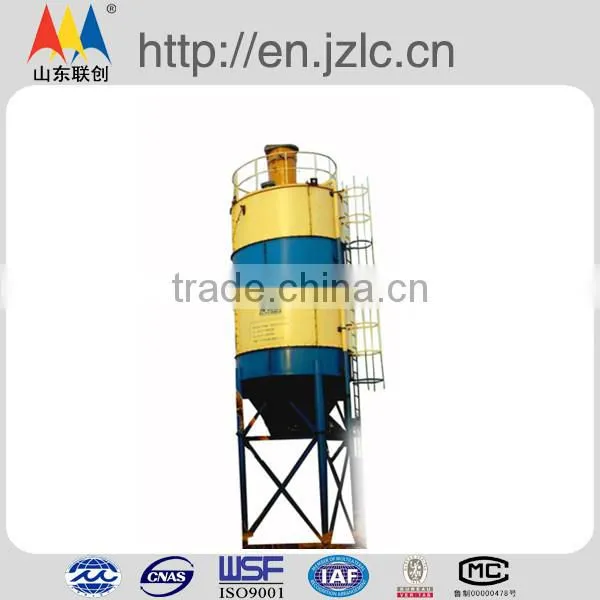

High Quality!!!Cement Silo
Cement silo is a concrete batching plant of supporting products, mainly has the following characteristics:
1.Put in bulk power(cemnent or fly ash)watrerproof and moisture ,easy to use and redure costs.
2.the top of cement silo with green filter, used to reduce dust leakage. Equipped with a safety valve at the top of cement silo, cement silo used to balance the pressure difference between inside and outside. Upper and lower parts of the cement silo is equipped with display materials, can monitor the number of cement materials warehouse. With gas in the lower part of broken cement storage devices, to ensure smooth unloading.
3. Cement bin is cylinder and supporting structure. The superior part has dust removing device to avoid leakage of dust; and the inferior part is equipped with arch breaker to avoid powder caking and make discharging smooth, and bin level sensing device to master usage of material in the bin at any time.
4 Cement bin generally adopts bulk cement conveying truck to send powder in the bin by pneumatic conveying; according different structures of cement bin, there are two kinds of discharging: the first is the inferior part is connected with screw conveyer and screw conveyer send powders into powder measure; the second is to adopt pneumatic conveying (to special cement bin).
Serial number | Spec | Diameter mm | Leg height mm | Total height mm | Theoretical capacity t |
1 | SNC60 | 2,800 | 4,000 (6,000) | 8,130 | 60 |
2 | SNC100 | 2,800 | 4,000 (6,000) | 12,000 | 100 |
3 | SNC150 | 3,900 | 4,000 (6,000) | 12,736 | 150 |
4 | SNC200 | 4,500 | 4,000 (6,000) | 13,000 | 200 |
5 | SNC500 | 7,000 | 4,000 (6,000) | 17,500 | 500 |
Sizes above can be changed according to the fact, also can be made according to clients different requirements.
Arch breaker electromagnetic valve AC220v or air control box Level detector LEF-1 (AC220v1A)
Vibrating motor: JZ-0.8(AC380 0.3Kw 0.8KN)
After-Sales Service:
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning;
4.Service team will follow every placed order regularly till warranty period finished
